PREPARING FOR FIELD LEVEL TESTING: Disassembling and Reassembling the Unit
68P80400P73-A 7-5
7.4 Disassembling and Reassembling the Unit
Motorola recommends the service technician follow a prescribed disassembly sequence to access
specific items or components of the unit. This product is an efficiently designed package that
incorporates the physical overlap and integration of some modular components. Refer to the
Disassembly Sequence flowchart for a suggested path to reach specific components.
NOTE: In some cases, the technician may not need to remove certain components to reach others.

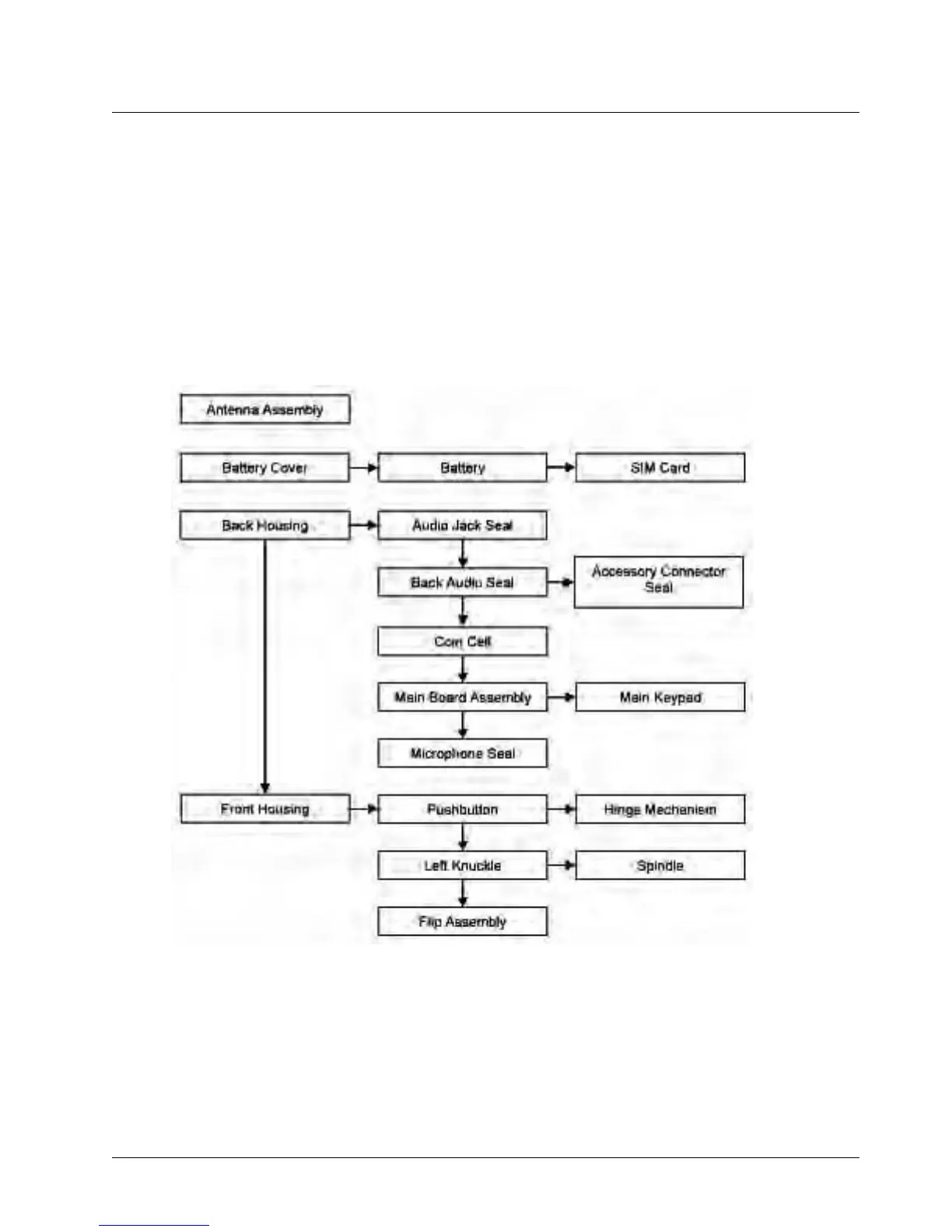

7.5 Disassembly Sequence Flowchart
7.6 Assembly/Disassembly Procedures
NOTE: Installation procedures to be performed in reverse of disassembly except where noted.
Screws used to assemble the i860 are: 1 antenna screw, T-4 drive; 4 housing assembly screws,
T-6 drive.
To Next Page
