OVERVIEW SECTION 1
SECTION 1, OVERVIEW 1-9
Feature Description
3 LAN
Ports 1-4
These four ports can connect your LAN with
Ethernet cables. This enables communication
among clients, such as PCs or print servers, on
the network. The LAN ports support either
10-BASE-T or 100-BASE-T transmission
speeds as well as straight-through and
crossover Ethernet cables.
Any of these four ports can also serve as an
uplink port to other network devices, such as
another router or switch, enabling you to extend
your network.
4 WAN Connect your modem to your router using this
port with your supplied Ethernet cable. This is
the only port you can use for this procedure.
This enables your router to access the Internet.
The port supports 10/100 Mbps as well as
straight-through and crossover Ethernet cables.
5 Antenna The antenna used for wireless connections. You
are able to rotate the antenna to gain the best
signal reception.
Front of Router

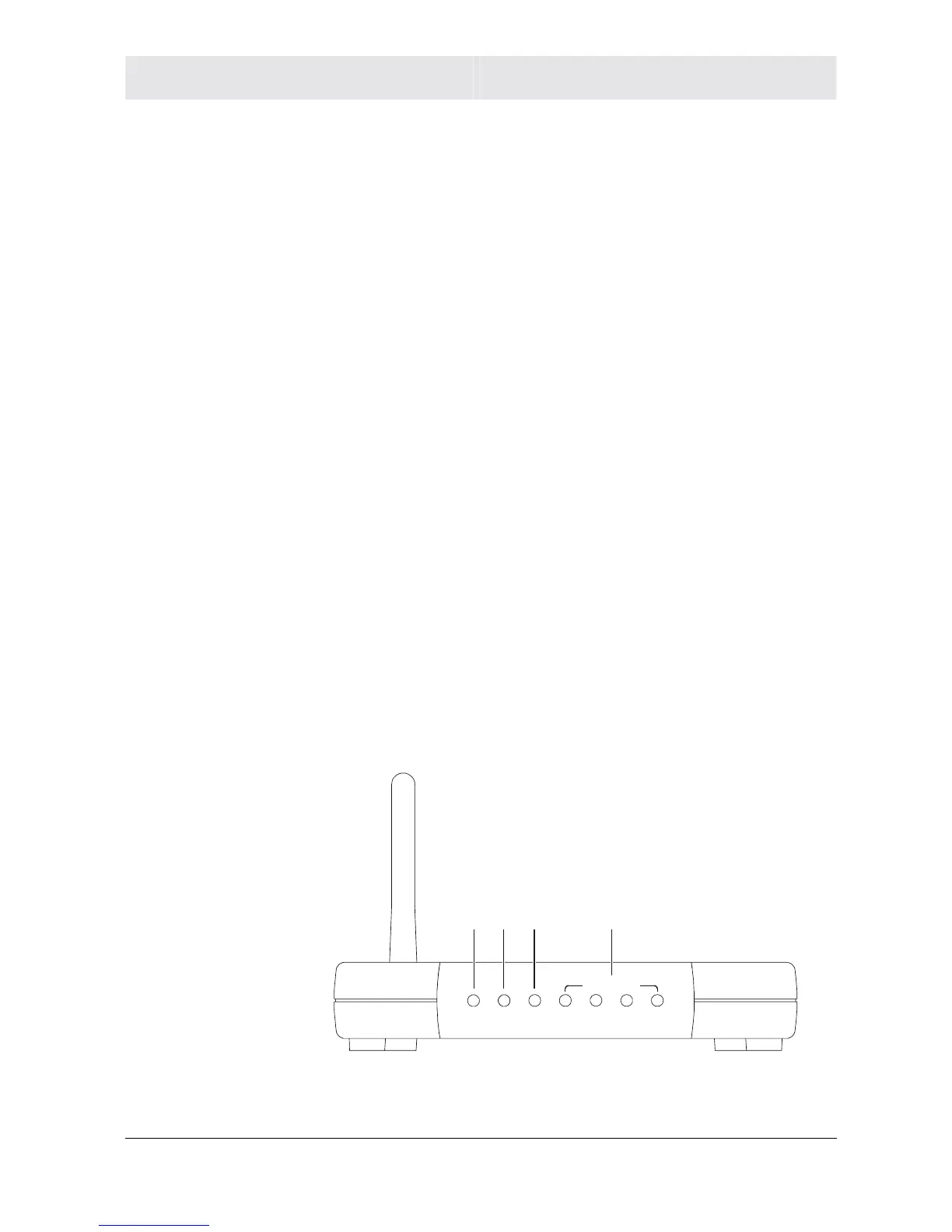

The following illustration shows the WR850G front panel:
123 4
P
o
w
e
r
M
ode
m
W
i
reles
s
Local Network
1
2 4
3
The LEDs of the router indicate its operational status.

Motorola WR850G Specifications

General

Brand	Motorola
Model	WR850G
Category	Wireless Router
Language	English
