23

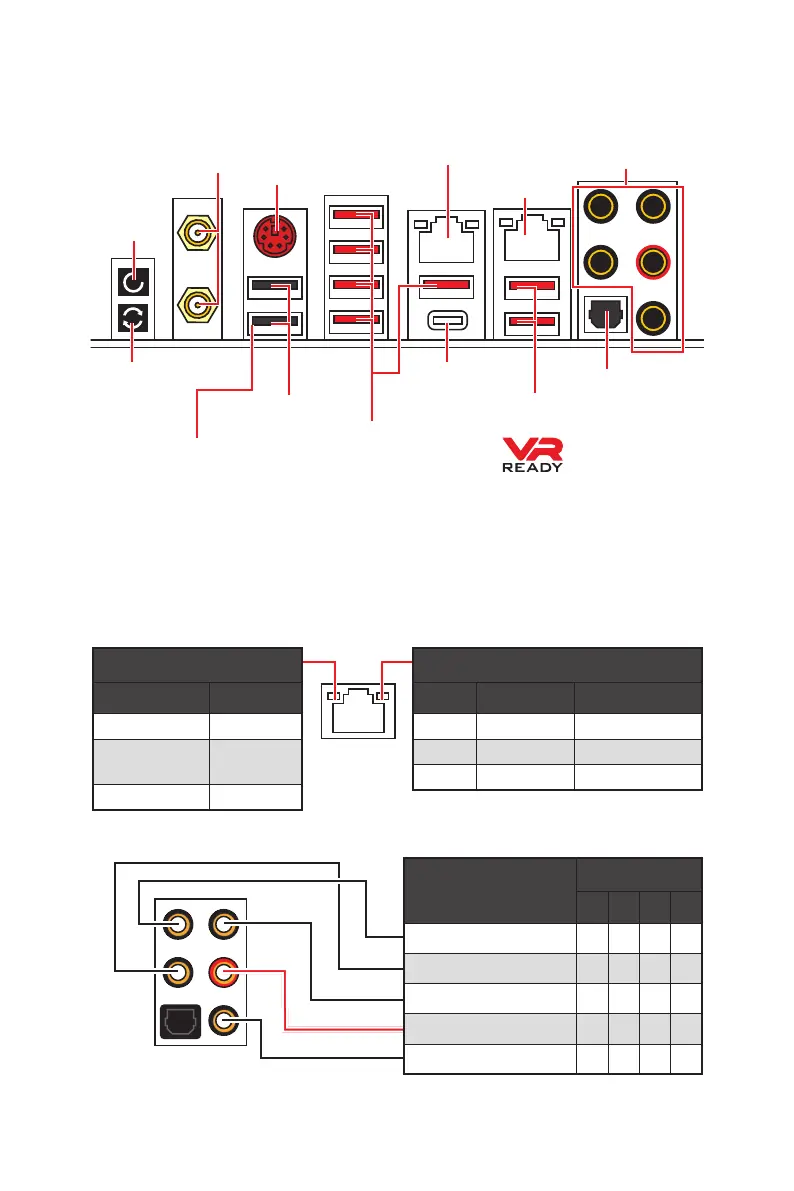

Rear I/O Panel
USB 3.2
Gen 2x2
Type-C
USB 3.2 Gen 1
Type-A
Link/ Activity LED
Status Description
Off No link
Yellow (1Gb LAN)
Green (10Gb LAN)
Linked
Blinking Data activity
Speed LED
Status Gigabit LAN 10 Gbps LAN
Off 10 Mbps
Green 100 Mbps 100 Mbps / 1 Gbps
Orange 1 Gbps 10 Gbps
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out
Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out
Mic In
Blank: empty)
Rear I/O Panel
PS/2 Combo port
1Gbps LAN
10 Gbps
LAN
USB 2.0 Type-A
Audio Ports
Optical S/PDIF-Out
Clear CMOS
button
Wi-Fi Antenna
connectors
USB 3.2 Gen 1
Type-A
Flash BIOS Button
∙ Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5-10 seconds to reset BIOS to default values.
∙ Flash BIOS Port/ Button - Please refer to page 64 for Updating BIOS with Flash BIOS
Button.
Flash BIOS Port
