BIOS Setup
HARDWARE MONITOR
Speed
Temperature
Fan Manage
Information
display
Setting
Buttons

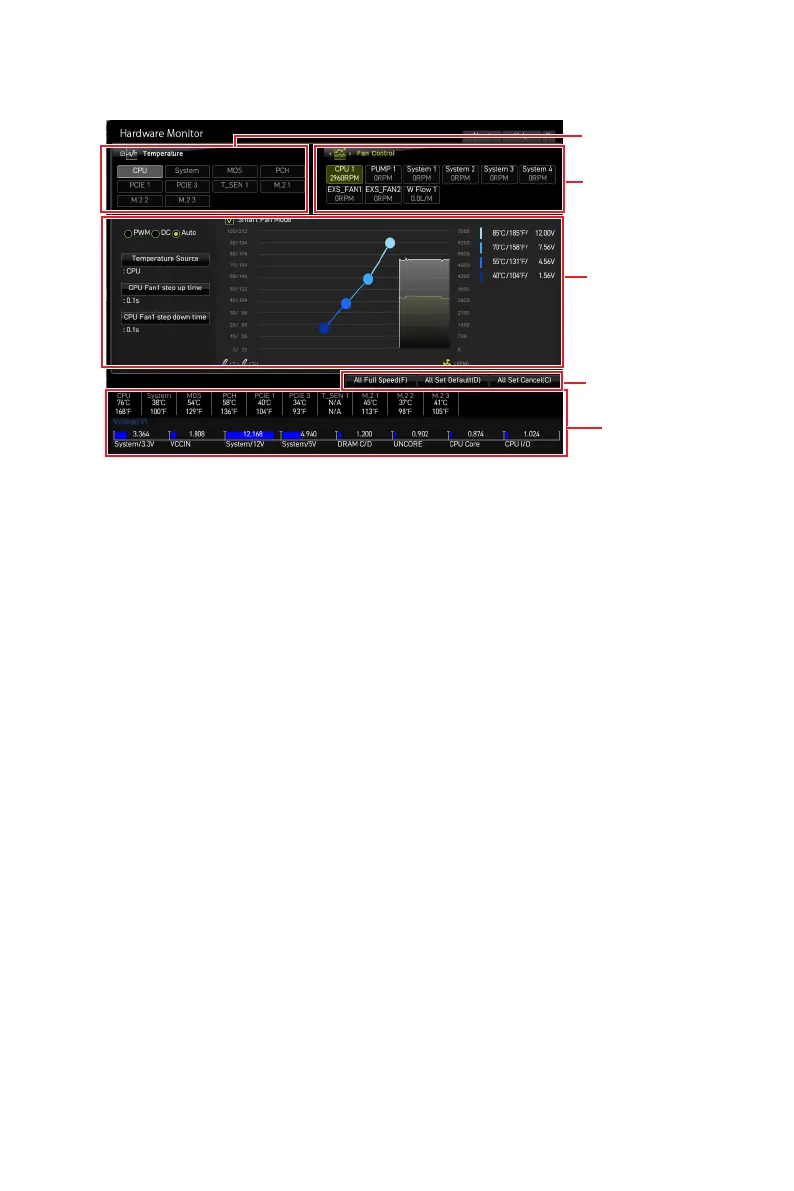

▶ Temperature
The assignment fan will be controlled according to the selected temperature source.
And you can set the duty cycle for each fan.
▶ Speed
Shows all fans' speeds.
▶ Fan Manage
▪ PWM - allows you to select the PWM mode for fan operation.
▪ DC - allows you to select the DC mode for fan operation.
▪ Auto (optional) - the BIOS will automatically detect the fan type and enable the
default fan operation mode.
▪ Fan step up/ down time - allows you to set the value of each fan step up/ down.
▪ Smart Fan Mode field - allows you to drag the gradient points to configure
the fan target speeds for Smart Fan mode. Smart Fan can control the fan speed
automatically depending on the CPU temperature to keep it with in a specific
range. If the current CPU temperature reaches to the target value, the Smart Fan
function will be activated.
⚠
Important
The changing will achieve after you save the changes and reboot the system.
▶ Settings Buttons
▪ All Full Speed - configures all fans to run at full operating speed.
▪ All Set Default - configures all fans to run at default operating speed.
▪ All Set Cancel - discards current changes and restores previous operating fan
speeds.
▶ Voltage display
Shows the current voltages of CPU, system and memory and current temperatures.
