Mounting the scanner
• Use the supplied mounting template and tape it securely to the chosen location site.
• Before drilling, check that:
-
you have oriented the mounting template correctly so that the front of the scanner
unit will face the front of the vessel
-
the location site is not more than 18 mm (0.7") thick. If the location site is thicker use
longer bolts
The four bolts supplied are M8 x 30 mm. If you need to use longer bolts make sure they are
marine grade stainless steel and allow for minimum of 8 mm (0.3") and maximum of 18 mm
(0.7") of thread contact.
• Use a 9.5 mm (3/8") drill bit to drill the four holes where shown on the mounting
template.
• Remove the mounting template.
• Connect the scanner interconnection cable (see "Connect interconnection cable to the
scanner" page 13)
• Route the connection cable through the cable retention channel.
• Position the scanner carefully over the bolt holes so that they are aligned.

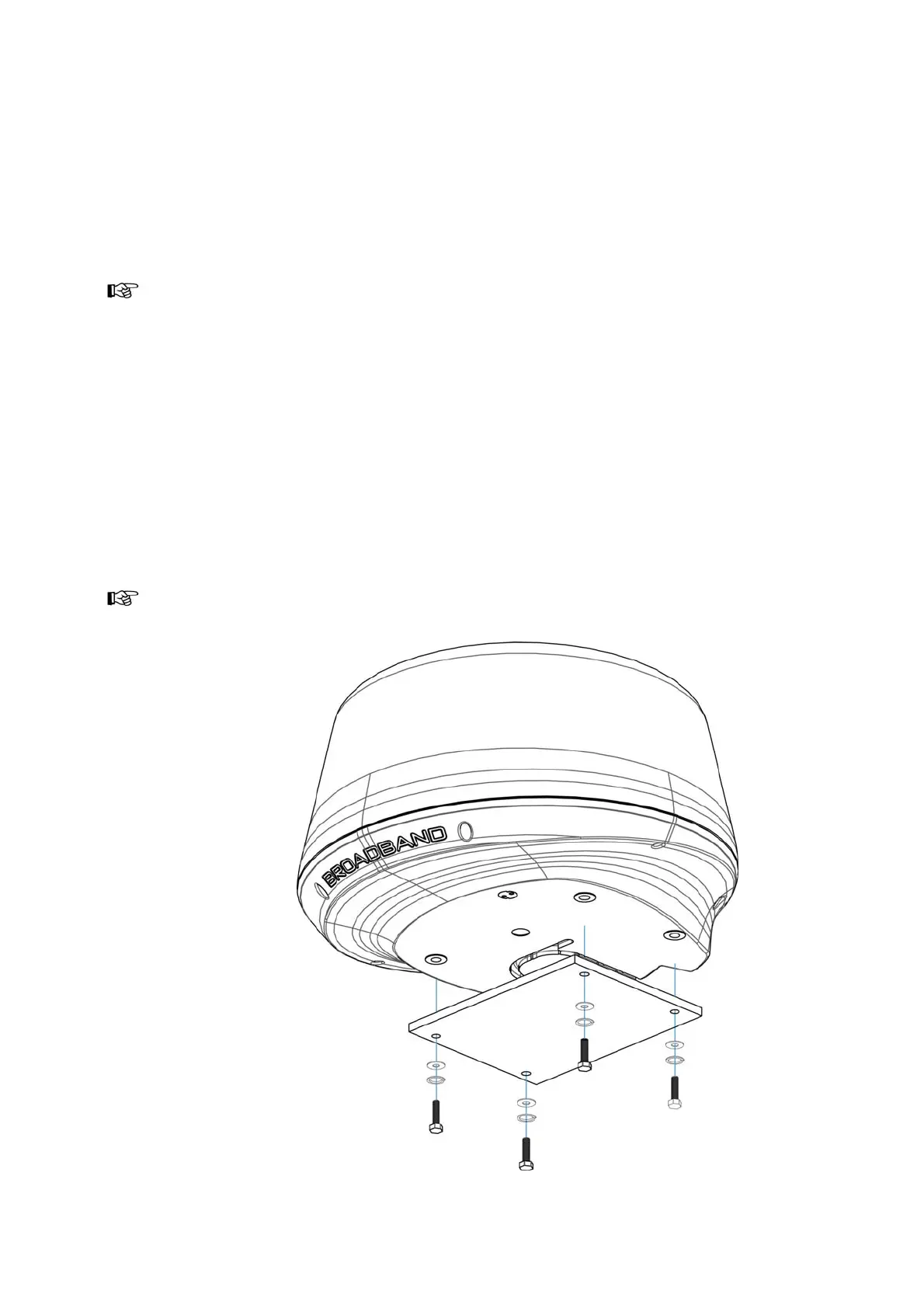

• Place a lock washer and a plain washer onto each bolt, as shown.
• Insert bolt into drill hole and locate into scanners threaded mounting holes and tighten
securely.
The torque settings for the mounting bolts are 12 Nm – 18 Nm (8.9 lb ft – 13.3 lb ft)
Install the radar | 11
