NX40, NX45
M84, M121
RI11 Data cable NX or M series
COMMS port AA010114
3 m (9.8 ft)
RADAR port

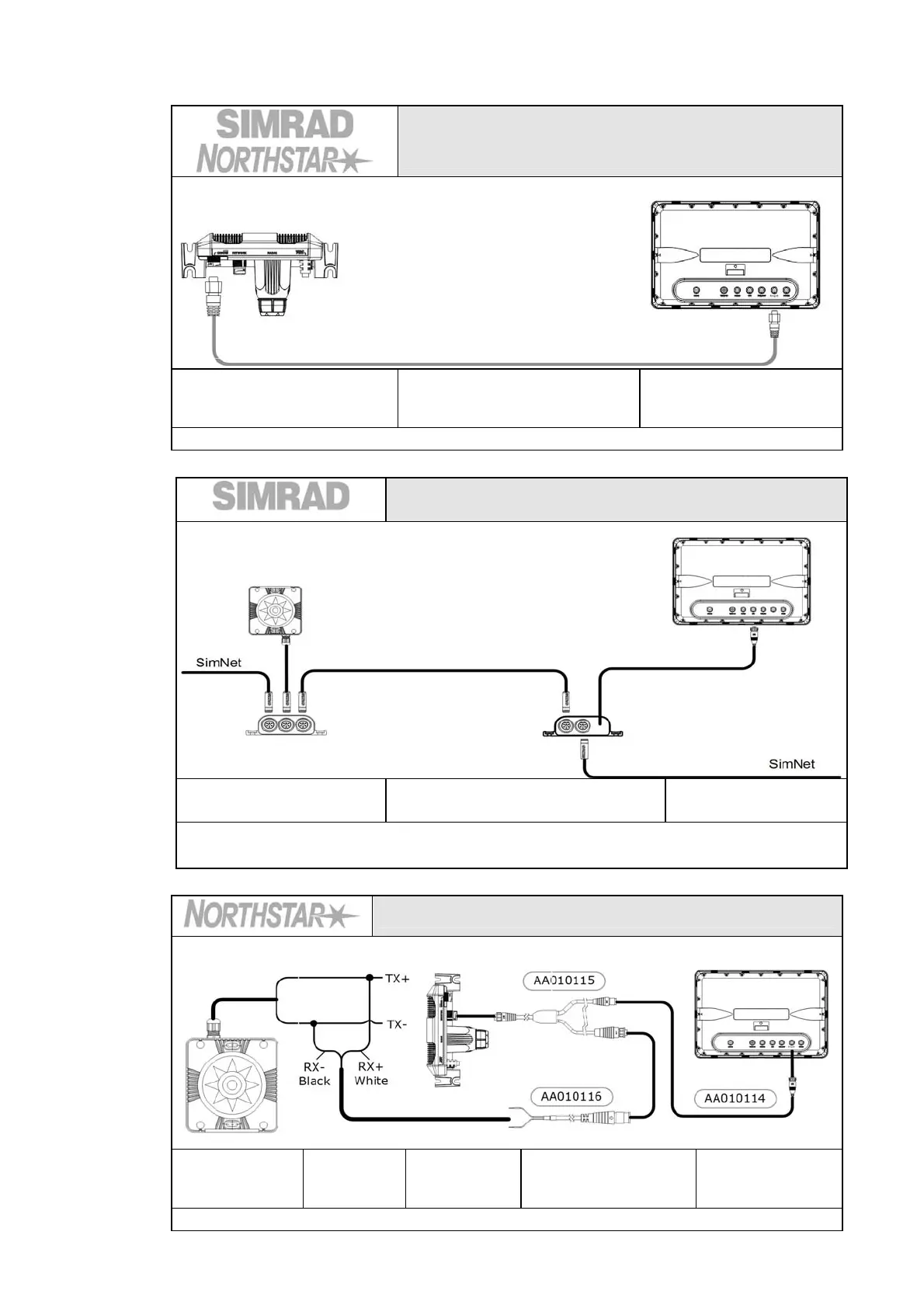

Connects to NX40/45 or M84/121 via RS232 using the supplied data cable.
NX40, NX45 SimNet Heading
SimNet heading sensor AT40 or AT45 SimNet to NMEA 0183
converter
NX40 or NX45
FC40 or RC42 GPS port
Optionally, for accurate radar chart overlay, a heading sensor on the SimNet backbone passes through
the AT40 or AT45 which connects to the GPS port on the NX display.
M84, M121 NMEA 0183 Heading
NMEA 0183
heading sensor
Junction box RI11 Connection kit AA010112 M84 or M121 Display
COMMS port Consisting of cables,
AA010114/15/16
Radar port
Optionally, for accurate radar overlay use an NMEA 0183 heading sensor. Use supplied connection kit.
Wiring the radar system | 17
