Navico BR24 User Manual

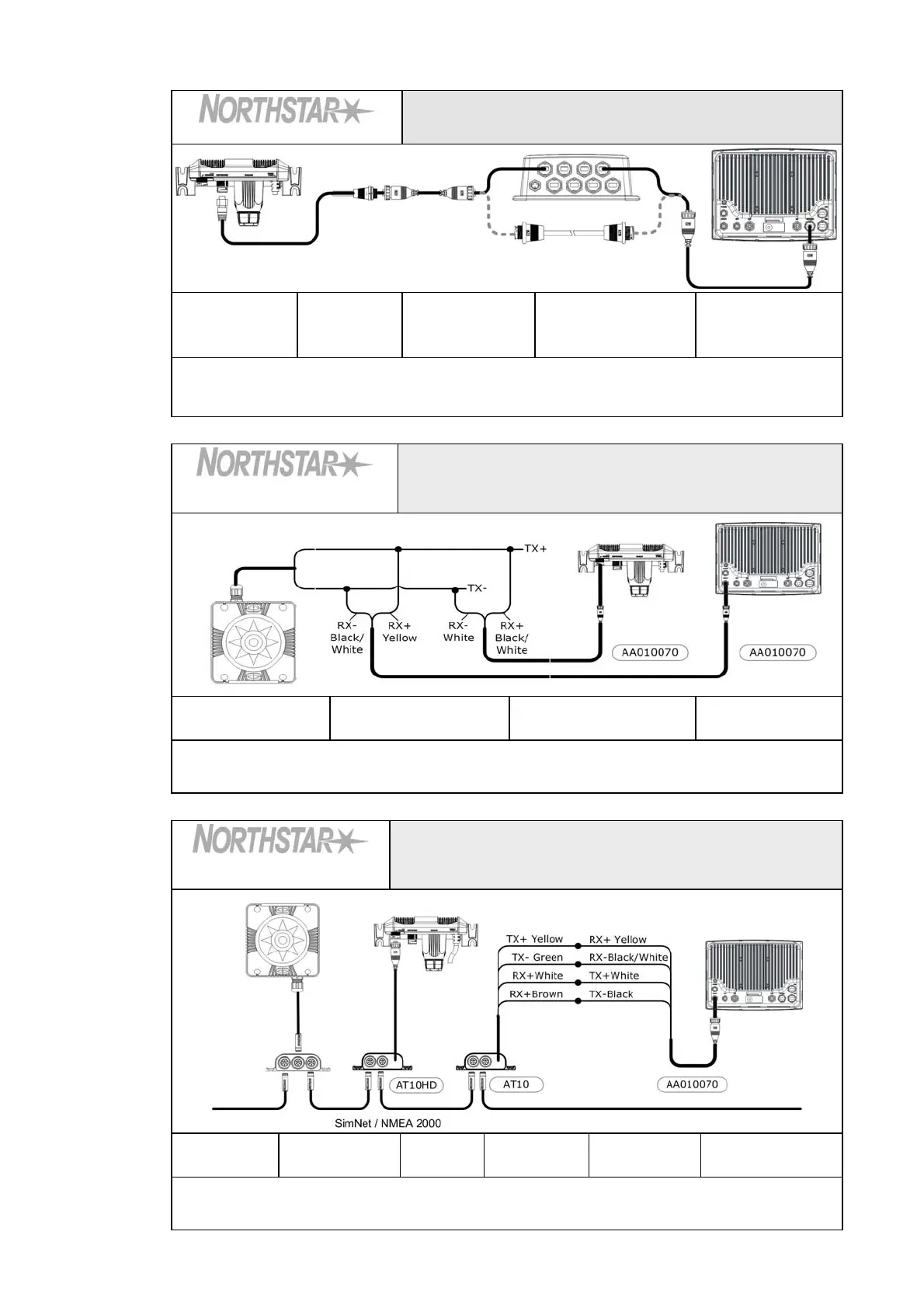

8000i
12" Display processor or Black box processor
RI11 Adapter cable Ethernet cable 8 port Ethernet linker
(or cross-over cable)
8000i
NETWORK port 000-0127-56 2
m (6 ft)
AA010079 NETWORK port
AA010009 (AA010084)
0.6 m (2 ft)
Connects to 8000i system via Ethernet. Connect 8000i Ethernet cable in between 8 port linker (or cross-
over cable) and supplied adapter cable.
Max Ethernet cable length from RI11 box to switch/display is 50 m.
8000i NMEA 0183 Heading
12" Display processor, Black box processor, or Simrad GB40 not
using a SimNet heading sensor
NMEA 0183 Heading
Sensor
Junction Box RI11 8000i NavComputer
COMMS port Utility port
For MARPA functionality, heading information at 10 Hz needs to be sent to both the RI11 and the master
NavComputer. Use the 12 pin cable AA010070 cable from both units to a junction box to share the same
heading source.
8000i SimNet / NMEA2000 Heading
12" Display processor, Black box processor connecting to a SimNet or
NMEA2000 heading sensor
AT10HD RI11 AT10 Junction box 8000i NavComputer Heading sensor
FC40 or RC42 24006694 COMMS 24005936 Utility port
For MARPA functionality, heading information at 10 Hz needs to be sent to both the RI11 and the master
NavComputer. AT10HD connects to RI11 providing fast heading from SimNet or NMEA 2000 backbone.
AT10 connects to the 12 pin Utility cable (AA010070) of the 8000i.
Wiring the radar system | 19
