Navico BR24 User Manual

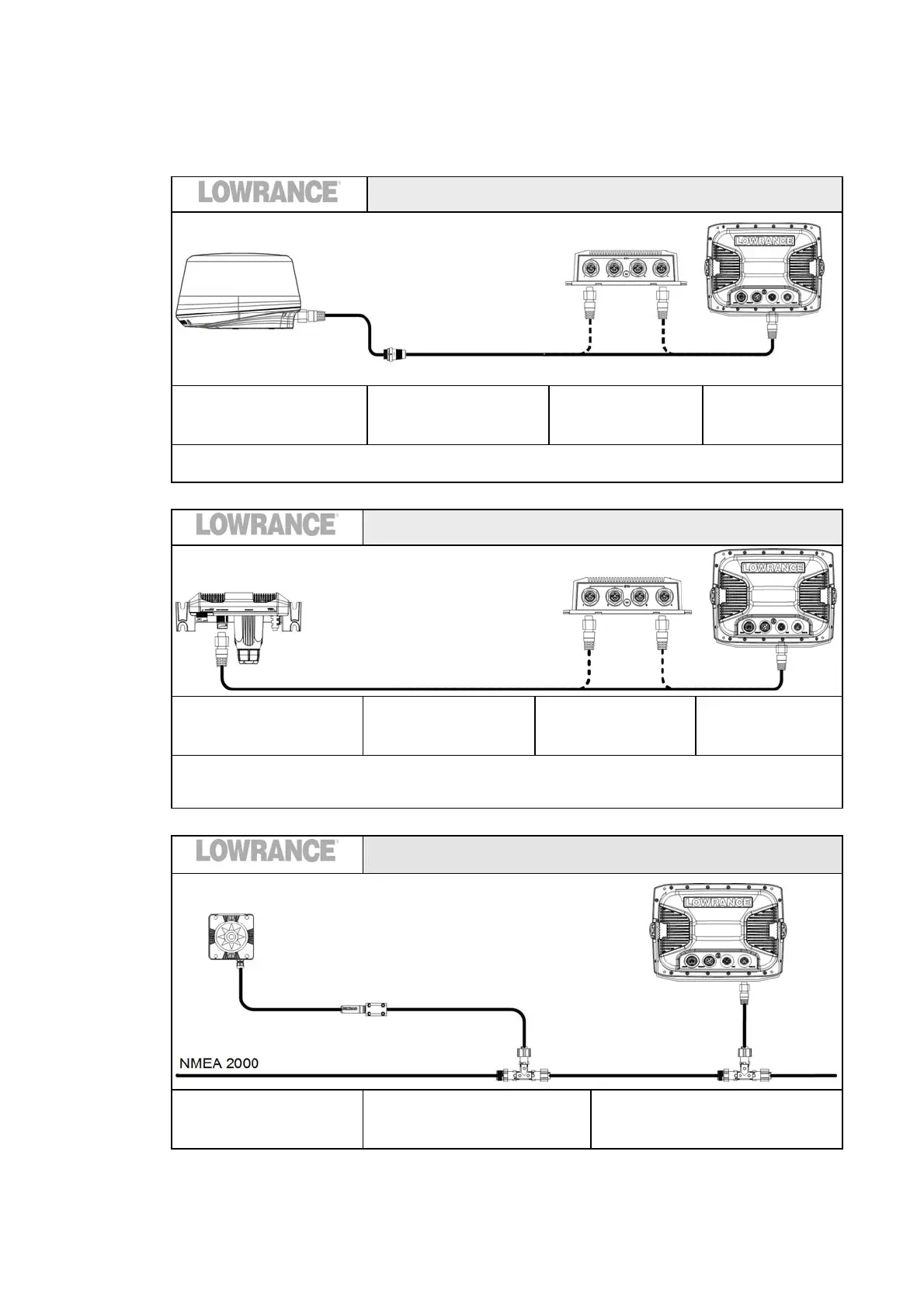

Connect the Broadband radar to your display
HDS (USA only)
Broadband radar scanner Adapter cable Optional Lowrance 5
Port Ethernet switch.
HDS Display
000-0127-56
2 m (6 ft)
ENET Port
NEP-1
Lowrance broadband radar in the United States does not require a radar interface box. The scanner
connects directly the display or Ethernet switch via the adapter cable.
HDS (Non USA)
RI11 Ethernet cable Optional Lowrance 5
port Ethernet switch.
HDS Display
NETWORK port 000-0127-28
2 m (6 ft)
ENET port
NEP-1
Lowrance Broadband radar outside the USA requires a RI11 interface box. This connects to HDS display
via Ethernet either directly into the ENET port on the display or by using an optional 5 port Ethernet
switch. An additional Ethernet cable will be required.
HDS NMEA 2000 Heading
SimNet heading sensor SimNet to NMEA2000 adapter
cable.
HDS
FC40 or RC42 NMEA 2000 port
24005729
16 | Wiring the radar system
