NEC SV9100 Configuration Note

Configuration Note 4. Configuring AudioCodes E-SBC
Version 7.0 25 AudioCodes Mediant E-SBC
4.1.1 Step 1a: Configure VLANs
This step describes how to define VLANs for each of the following interfaces:

LAN VoIP (assigned the name "Voice")

WAN VoIP (assigned the name "WANSP")
 To configure the VLANs:
1. Open the Ethernet Device Table page (Configuration tab > VoIP menu > Network >
Ethernet Device Table).
2. There will be one existing row for VLAN ID 1 and underlying interface GROUP_1.
3. Add another VLAN ID 2 for the WAN side as follows:
Parameter Value
Index
1
VLAN ID
2
Underlying Interface
GROUP_2 (Ethernet port group)
Name
vlan 2
Tagging
Untagged

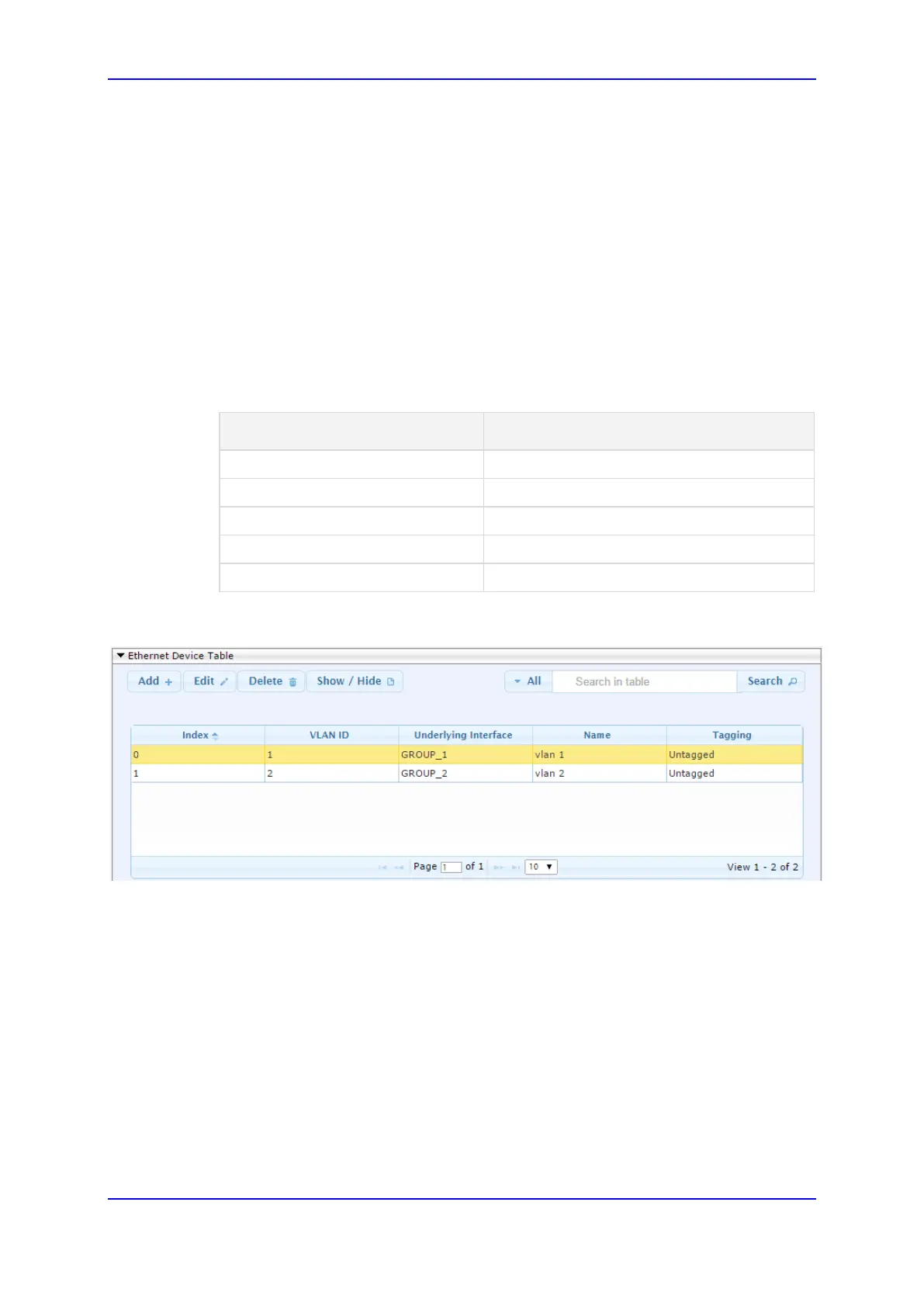

Figure 4-2: Configured VLAN IDs in Ethernet Device Table
4.1.2 Step 1b: Configure Network Interfaces
This step describes how to configure the IP network interfaces for each of the following
interfaces:

LAN VoIP (assigned the name "Voice")

WAN VoIP (assigned the name "WANSP")
 To configure the IP network interfaces:
1. Open the IP Interfaces Table page (Configuration tab > VoIP menu > Network > IP
Interfaces Table).
2. Modify the existing LAN network interface:
