NetComm Wireless NTC-30
WV 3G Outdoor Router with Voice
www.netcommwi
reless.com
Ver 1.6

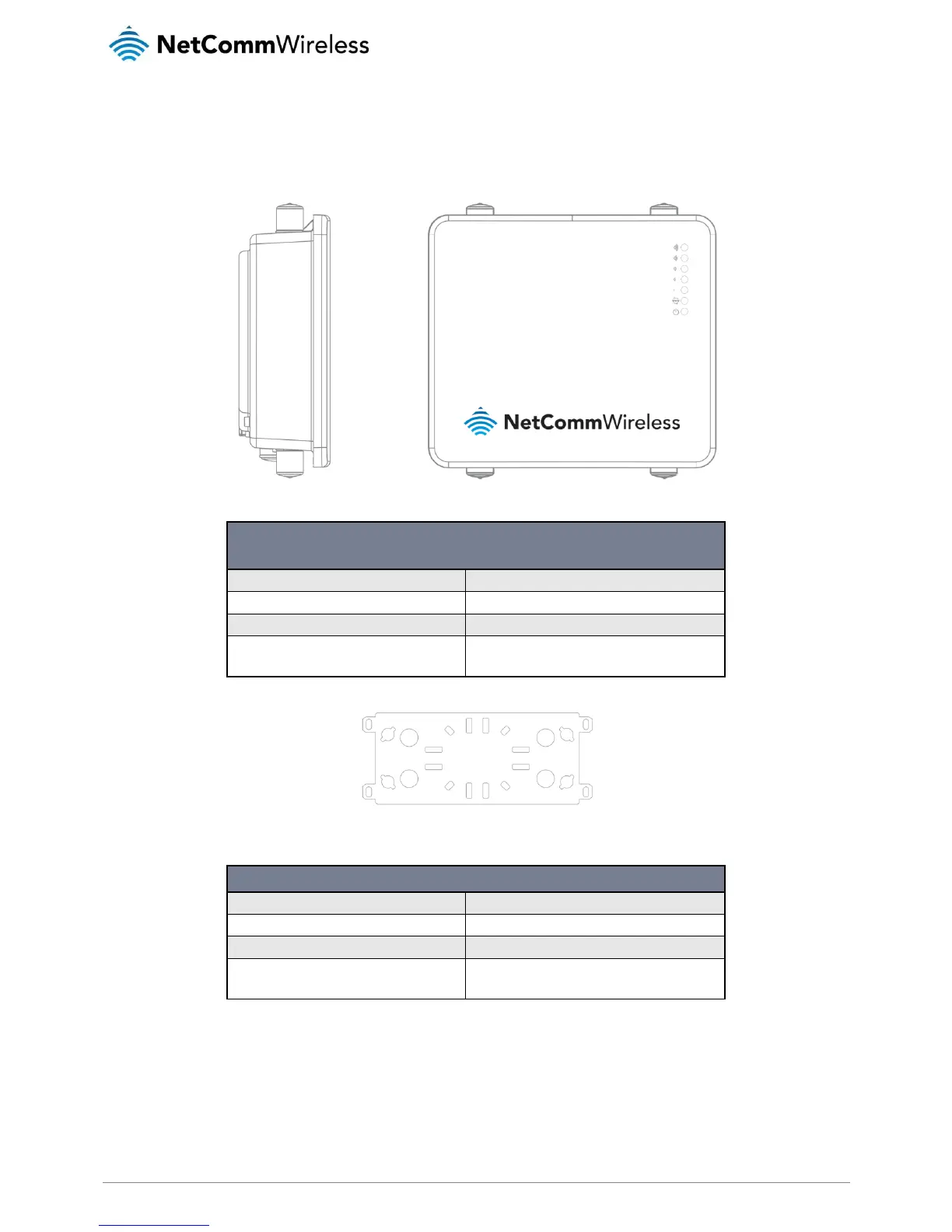

Physical Dimensions
The physical dimensions of the NTC-30WV, antennas and the included mounting bracket which can be used to attach the NTC-
30WV to a pole or to provide a wall / ceiling mount are listed below.
Figure 2
–
NTC-30W
V Dimensions
NTC-30WV
(WITHOUT ANTENNAS ATTACHED)
Length
255
mm
Depth
80
mm
Height
240
mm
Weight
1750 g
(w/o mounting bracket
and antennas)
Table 5 - Device Dime
nsions
Figure 3
–
NTC-30W
V Mounting Brack
et
NTC-30WV MOUNTING BRACKET
Length
110
mm
Depth
12
mm
Height
290
mm
Weight
410 g
(w/o NTC-30WV a
ttached)
Table 6 -
Mounting Bracket Dime
nsions
