NETGEAR C6300 User Manual

Manage Your Network
72
AC1750 WiFi Cable Modem Router
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin. The default password is password.
The user name and
password are case-sensitive.
The BASIC Home screen displays.

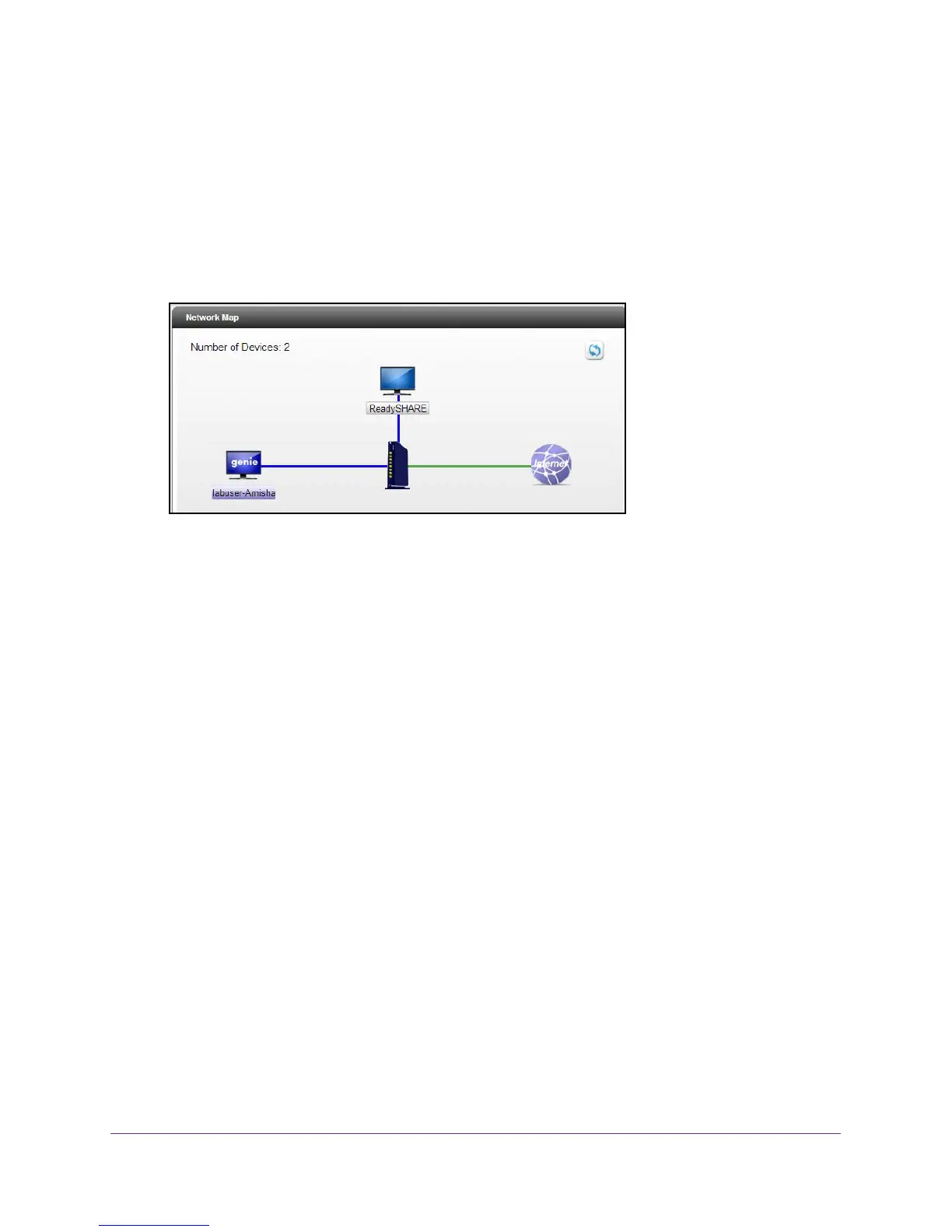

4. Select ADVANCED > Administration > Network Map
.
The screen displays the modem router, its Internet connection, and all devices that are
currently connected to the modem router network.
Manage the Modem Router Configuration File
The configuration settings of the modem router are stored within the modem router in a
configuration file. You can back up (save) this file to your computer, restore it, or reset it to the
factory default settings.
Back Up Settings
 To back up the modem router’s configuration settings:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin
.
The default password is password.
The user name and
password are case-sensitive.
The BASIC Home screen displays.

NETGEAR C6300 Specifications

General

DSL WAN	Yes
Ethernet WAN	-
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Processor frequency	600 MHz
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Power source type	DC

Weight and Dimensions

Depth	174 mm
Width	277.9 mm
Height	75.18 mm
Weight	690 g
