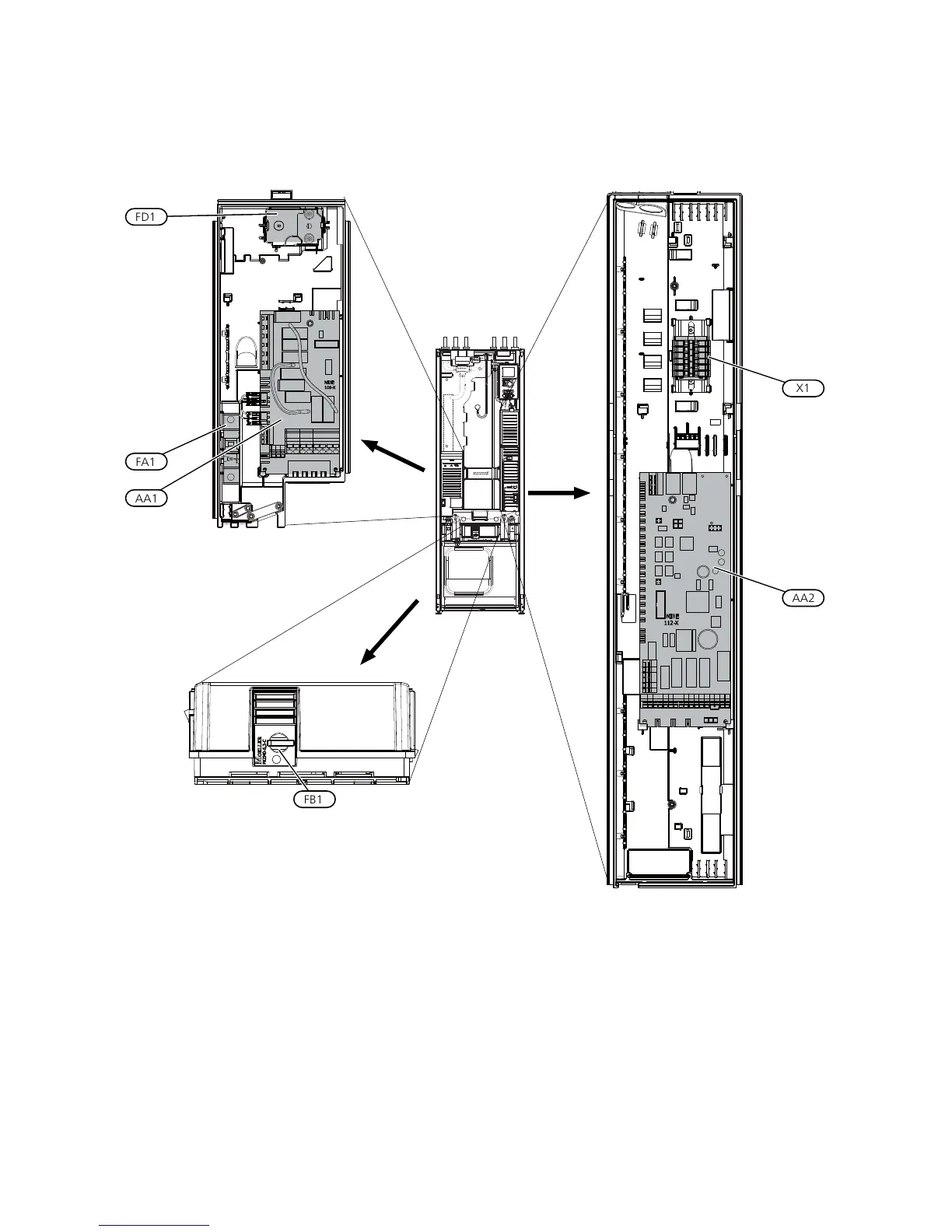

Distribution boxes
FB1
FD1
AA1
FA1
X1
AA2
Electrical components
Immersion heater cardAA1
Base cardAA2
Miniature circuit-breakerFA1
Motor cut-outFB1
Temperaturelimiter/Emergency mode thermostatFD1
Terminal blockX1
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
NIBE F1226Chapter 3 | The heat pump design10
