Nibe F1226 series User Manual

3x400 V 6-12 kW
FB1 AA10
Electrical components
Soft-start cardAA10
Motor cut-outFB1
Designations in component locations according to
standard IEC 81346-1 and 81346-2.

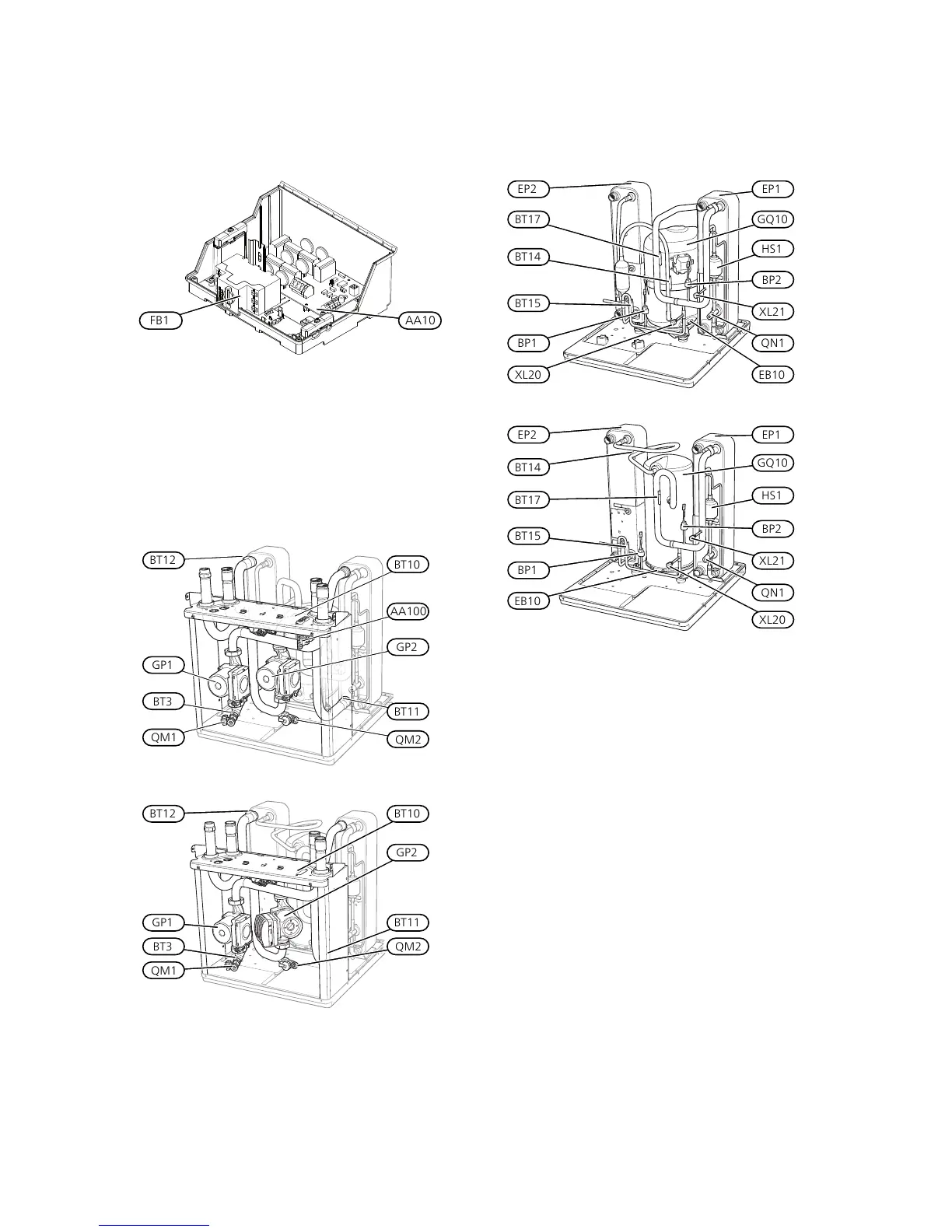

Cooling section
6 & 8 kW
UN
BT11
QM2
GP2
BT10
AA100
QM1
BT3
GP1
BT12
12 kW
U
N
BT12
GP2
GP1
BT3
QM1
BT10
BT11
QM2
6 & 8 kW
UN
EP2
BT17
BT14
BP2
BT15
BP1
XL20
EP1
GQ10
HS1
XL21
QN1
EB10
12 kW
U
N
EP2
BT14
BT17
BP2
BT15
BP1
EB10
EP1
GQ10
HS1
XL21
QN1
XL20
Pipe connections
Service connection, high pressureXL20
Service connection, low pressureXL21
HVAC components
Circulation pumpGP1
Brine pumpGP2
Drainage, climate systemQM1
Draining, brine sideQM2
Sensors etc.
High pressure pressostatBP1
Low pressure pressostatBP2
Temperature sensors, heating medium returnBT3
Temperature sensor, brine inBT10
Temperature sensor, brine outBT11
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, suction gasBT17
Electrical components
Joint cardAA100
Compressor heaterEB10
11Chapter 3 | The heat pump designNIBE F1226
