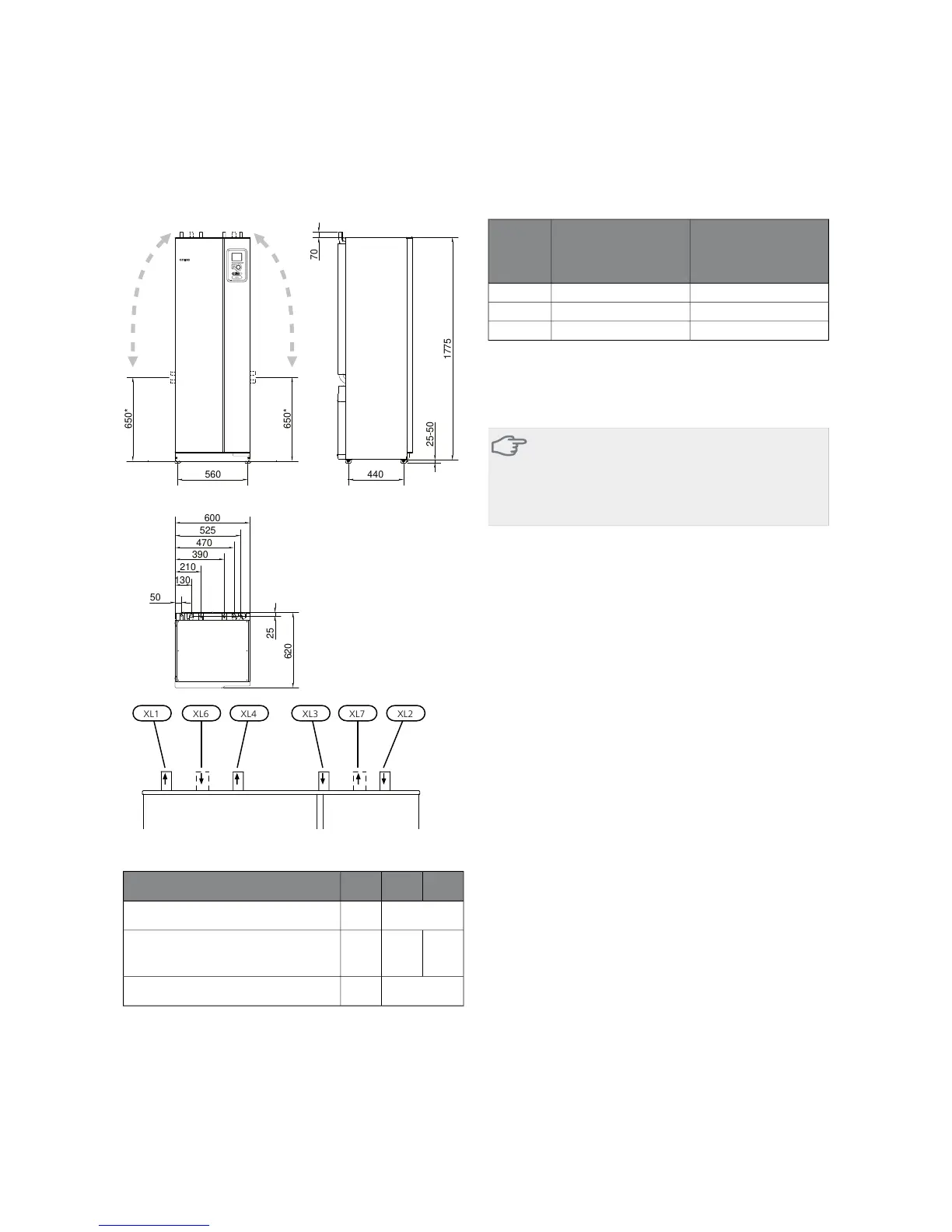

Pipe dimensions
126-8(kW)Connection
28(mm)(XL6)/(XL7) Brine in/out ext Ø
2822(mm)(XL1)/(XL2) Heating medium
flow/return ext Ø
22(mm)(XL3)/(XL4) Cold/hot water Ø
Brine side
Collector
Rock heat, recom-
mended active
drilling depth (m)
Surface soil heat, re-
commended collect-
or length (m)
Type
90-110250-4006 kW
120-145325-2x2508 kW
180-2102x250-2x35012 kW
Applies to PEM hose 40x2.4 PN 6.3.
These are rough example values. At installation the cor-
rect calculations must be made according to local condi-
tions.
Caution
The length of the collector hose varies depend-
ing on the rock/soil conditions, climate zone
and on the climate system (radiators or under-
floor heating).
Max length per coil for the collector should not exceed
400 m.
In those cases where it is necessary to have several col-
lectors, these should be connected in parallel with the
possibility for adjusting the flow of the relevant coil.
For surface soil heat, the hose should be buried at a
depth determined by local conditions and the distance
between the hoses should be at least 1 metre.
For several bore holes, the distance between the holes
must be determined according to local conditions.
Ensure the collector hose rises constantly towards the
heat pump to avoid air pockets. If this is not possible,
airvents should be used.
Because the temperature of the brine system can fall
below 0 °C, it must be protected against freezing down
to -15 °C. When making the volume calculation, use 1
litres of ready mixed brine per metre of collector hose
(applies when using PEM-hose 40x2.4 PN 6.3) as a guide
value.
Side connection
It is possible to angle the brine connections, for connec-
tion to the side instead of top connection.
To angle out a connection:
1.
Disconnect the pipe at the top connection.
2.
Angle the pipe in the desired direction.
3.
If necessary, cut the pipe to the desired length.
* Can be angled for side connection.
NIBE F1226Chapter 4 | Pipe connections14
