Nilfisk-Advance SC2000 Service Manual

Wheels, Drive System 103Service Manual – SC2000
Drive System Gearmotor Disassembly/Assembly
Warning! Thisproceduremustbeperformedbyqualiedpersonnelonlyandwiththehelpof
an assistant.
1. Drive the machine on a level oor or on a hoisting system to facilitate the disassembly procedures.
2. Place a suitable lifting device (A, Figure 5) to raise one side of the machine approximately 2 cm from the
oor.
3. Remove the plug (B), remove the screw (C) and retrieve the washer.
4. Remove the wheel (D) and retrieve the key.
5. Disconnect the connection (E).
6. Remove the 4 screws (F) and retrieve the washer.
7. Repeat step 2 to 6 for the other wheel, then carefully disassemble the gearmotor (G) from the machine.

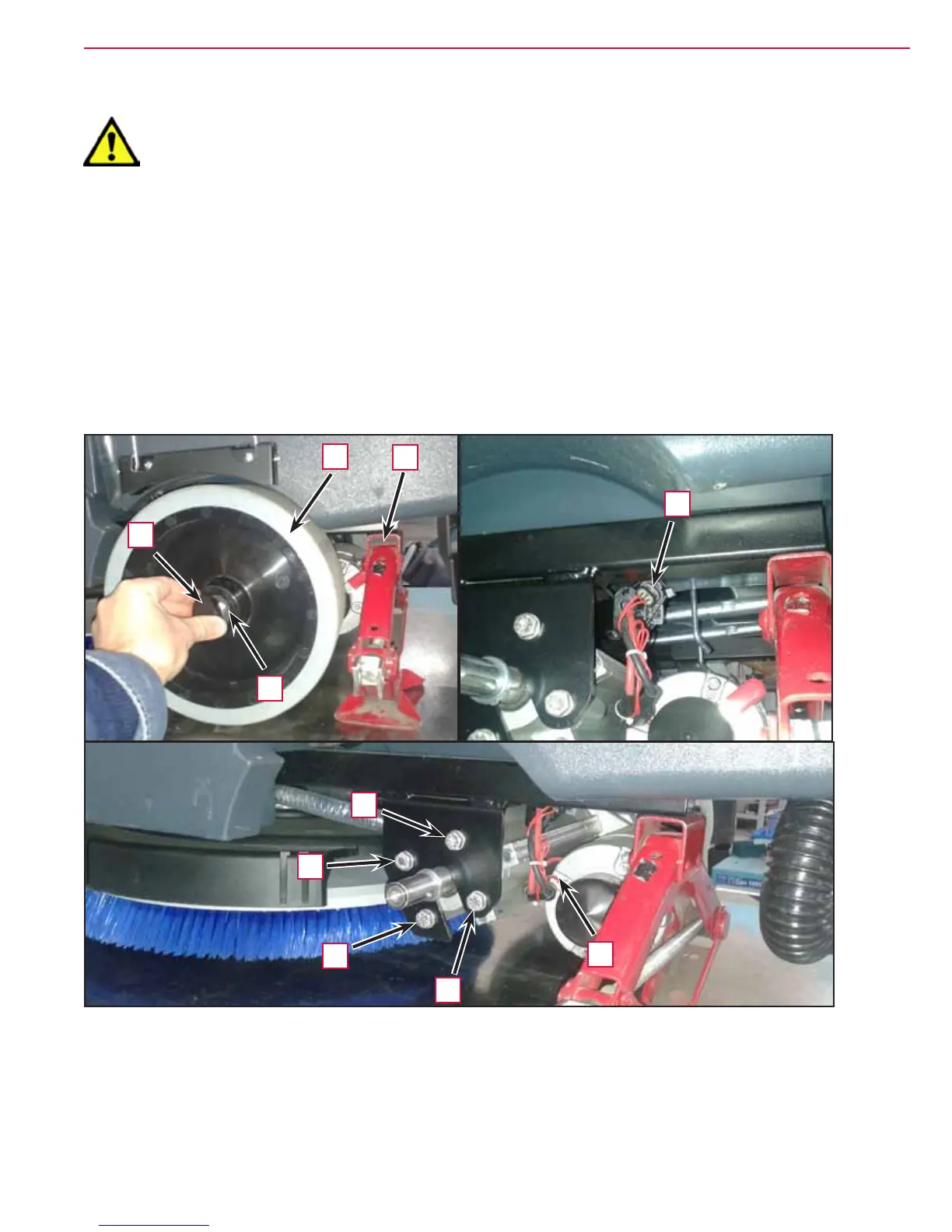

Figure 5
C
E
A
B
D
G
F
F
F
F
