Solution System 82Service Manual – SC2000
Removal and Installation
Solenoid Valve Disassembly/Assembly
Disassembly
1. Drive the machine on a level oor or on a
hoisting system to facilitate the disassembly
procedures.
2. Remove the brush.
3. Remove the two screws (A, Figure 8) under the
brush deck.
4. Insert the operator key in its slot.
5. Lower the brush deck by pressing the One-
Touch button .
6. Switch off the machine and disconnect the
battery connector.
7. Unscrew and disconnect the connection (B).
8. Remove the elastic clamp (C) and disconnect
the detergent supply hose (D) from the solenoid
valve.
9. Disassemble the solenoid valve (E).
Assembly
10. Assemble the components in the reverse order of
disassembly.

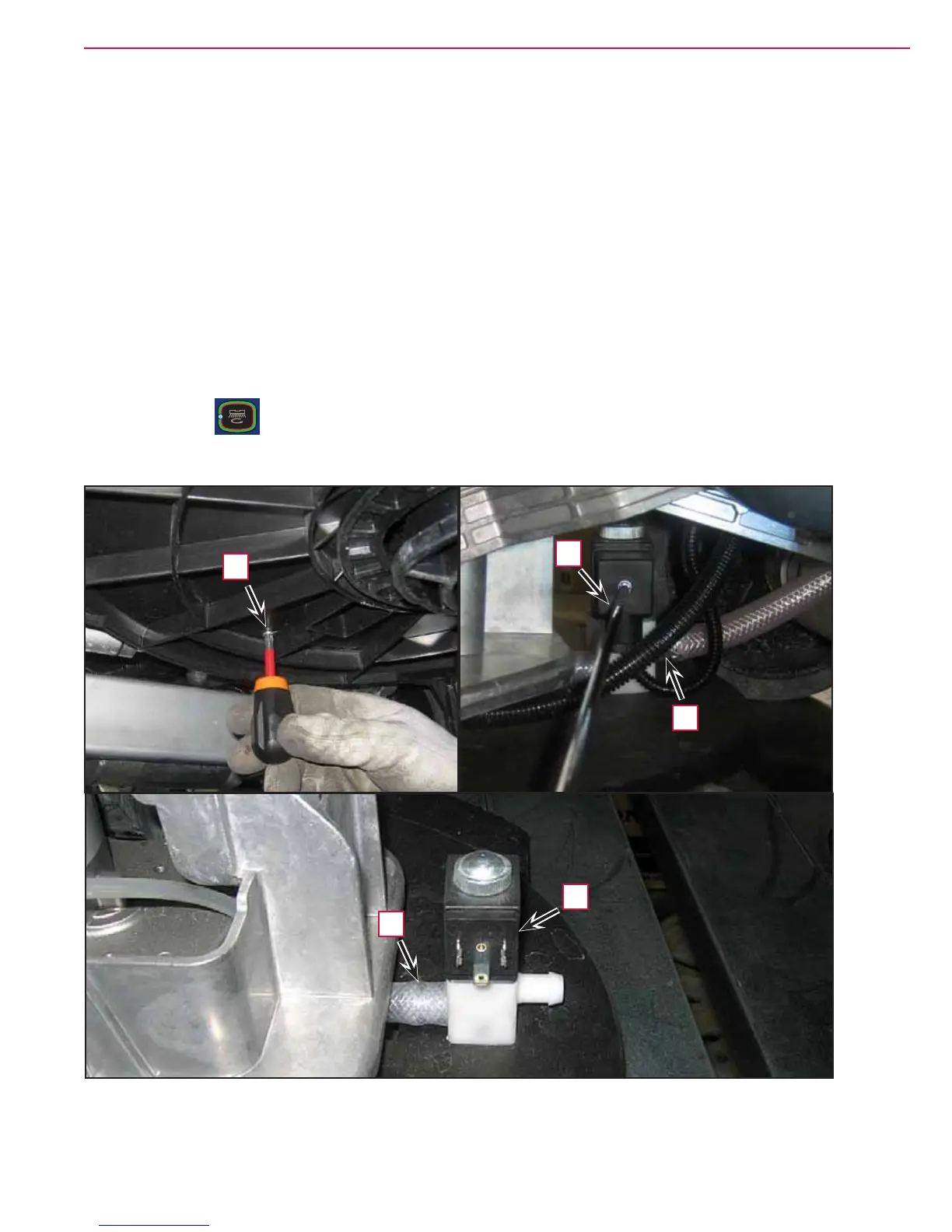

Figure 8
C
E
A
D
B
