Recovery System 58Service Manual – SC2000
Container and Vacuum System Motor Disassembly/Assembly
Disassembly
1. Disassemble the vacuum system motor unit as shown in the previous paragraph.

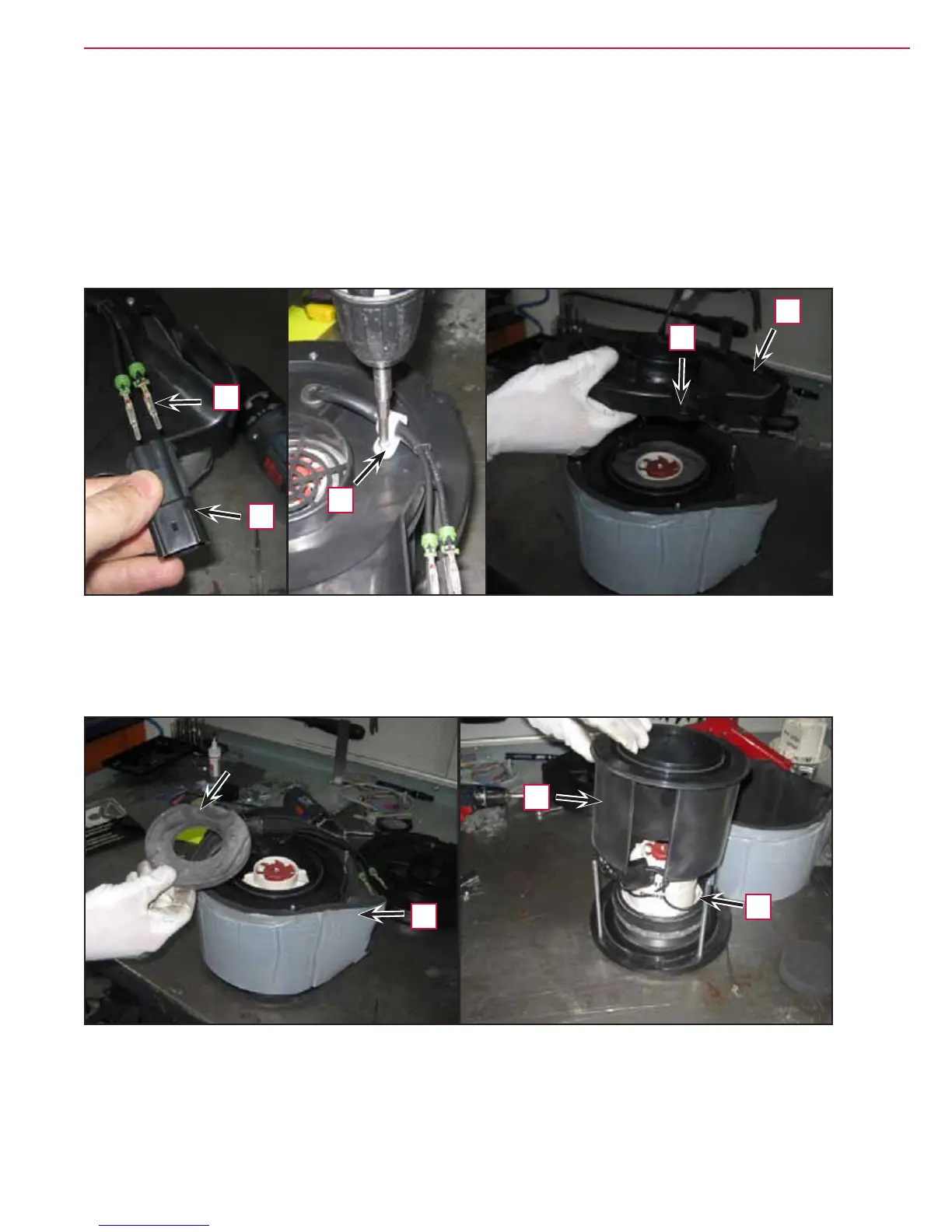

2. At the workbench, remove the connector (A) (Figure 7) form the faston terminals (B).
3. Remove the clamp (C).
4. Remove the 4 screws (D) and remove the cover (E).
Figure 7
A
C
D
E
B
5. Remove the soundproong (F) (Figure 8) and (G).
6. Remove the protection (H) to reach the vacuum system motor (I).
Figure 8
H
I
G
