Nilfisk-Advance SC3000 Service Manual

Squeegee System 110Service Manual – SC3000
Removal and Installation

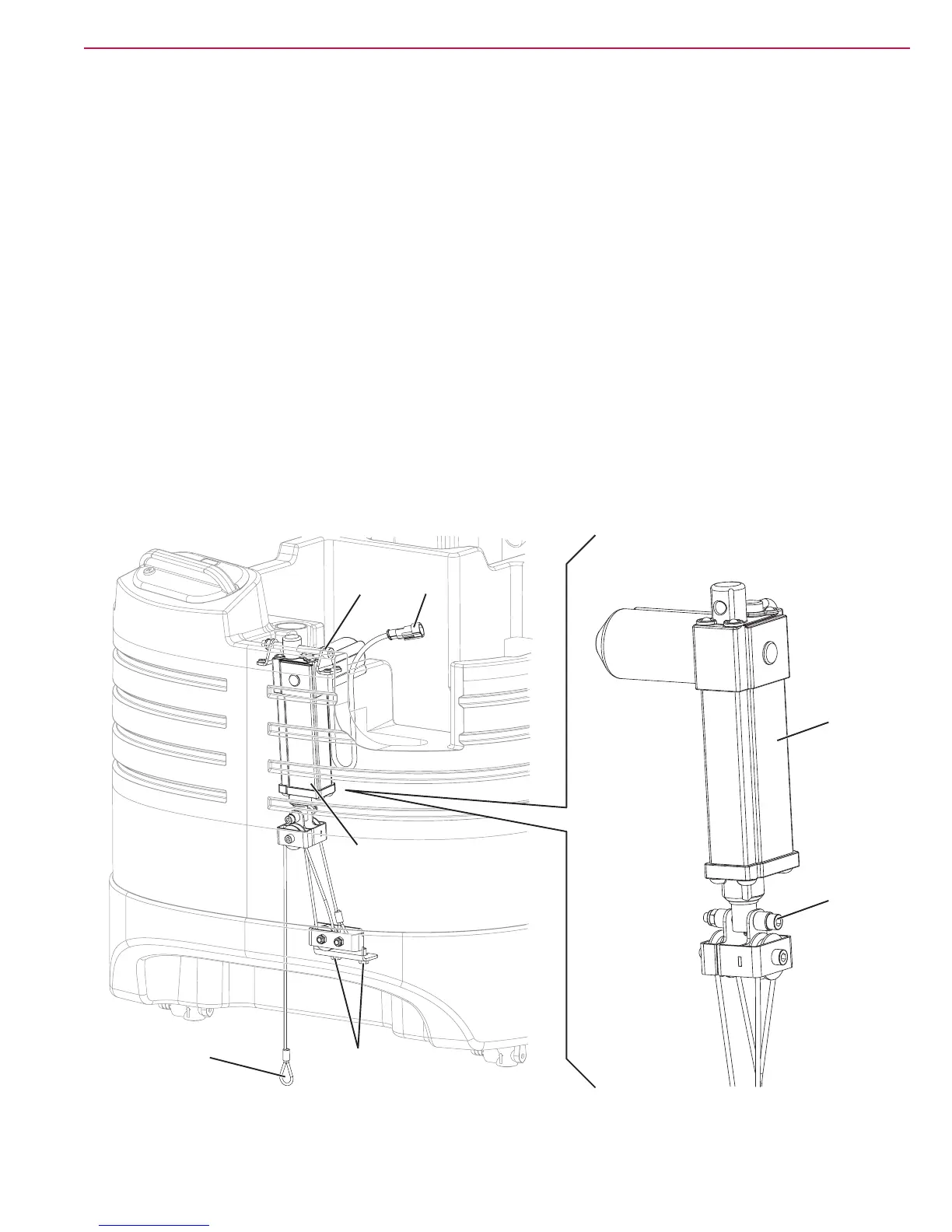

Squeegee Lifting Actuator Disassembly/Assembly
Disassembly
1. Lower the squeegee.
2. Turn the ignition key to “0” and disconnect the batteries.
3. Disengage the cable grommet (A) and remove it from the squeegee.
4. Remove the screws (B) and recover the washers.
5. Remove the screw (C) and recover the nut.
6. Disconnect the connector (D) and remove the squeegee lifting assembly (E).
7. At the workbench, remove the screw (F), recover the spacers and the nut.
8. Remove the squeegee lifting actuator (G).
Assembly
9. Assemble the components in the reverse order of disassembly.
AB
DC
E
F
G
P100385
