Nilfisk-Advance SC3000 Service Manual

Control System 38Service Manual – SC3000
Specications

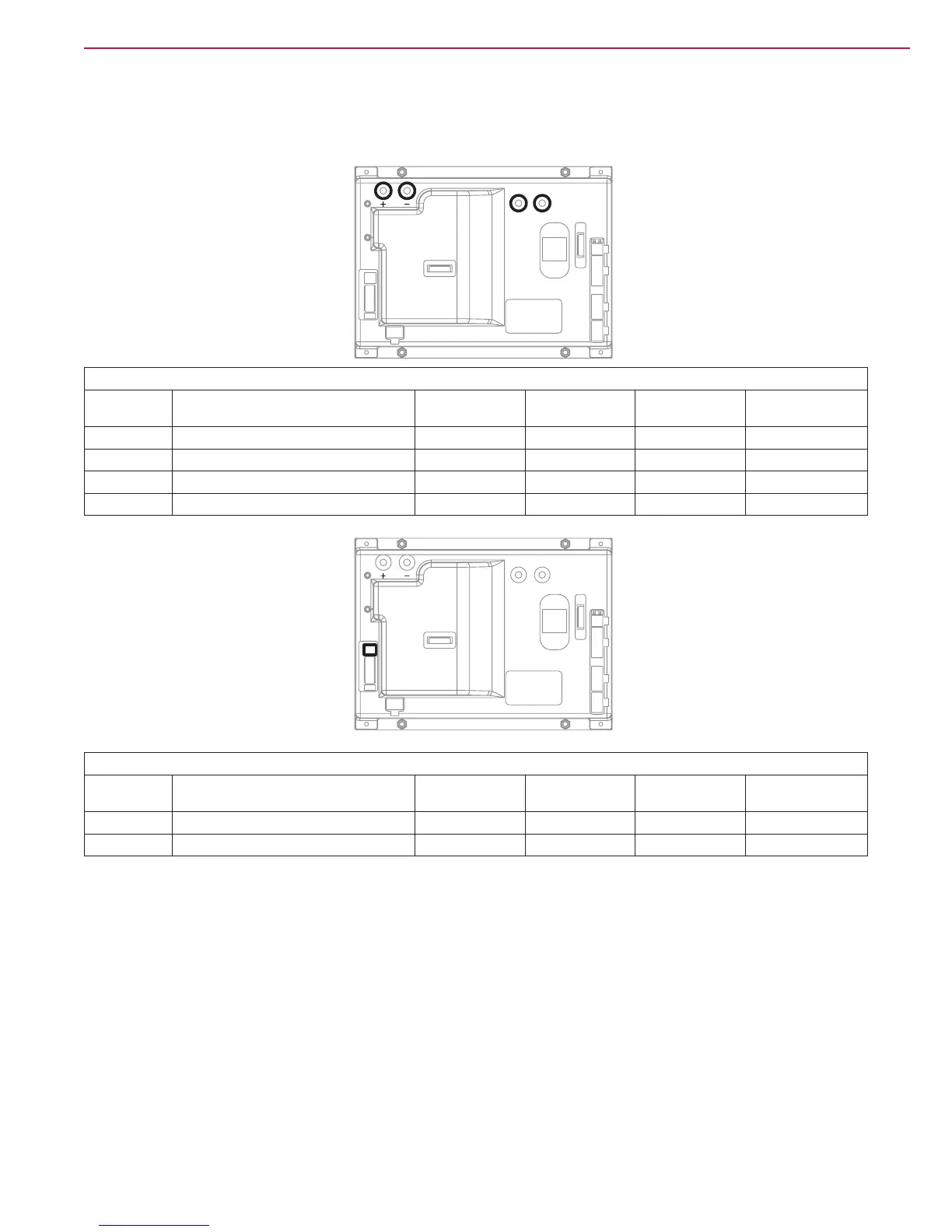

Connectors on the function electronic board
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
Power connections (male RADSOK terminals Ø6mm (AMPHENOL P/N N01 060 0001 1 or equivalent))
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
B+ Electronic board power supply + in 24V 120A BAT+
B- Electronic board power supply - in 24V 120A BAT-
M1 Drive system motor + out 24V 100A M3+
M2 Drive system motor - out 24V 100A M3-
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
Vacuum system connections (2-ways male faston 6.3x0.8 – pitch 6.5mm)
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
VA+ Vacuum system power supply + out 0V 30A M2+
VA- Vacuum system power supply - out 10-24V 30A M2-
