Scrub System, Cylindrical 66Service Manual – SC3000
Maintenance and Adjustments

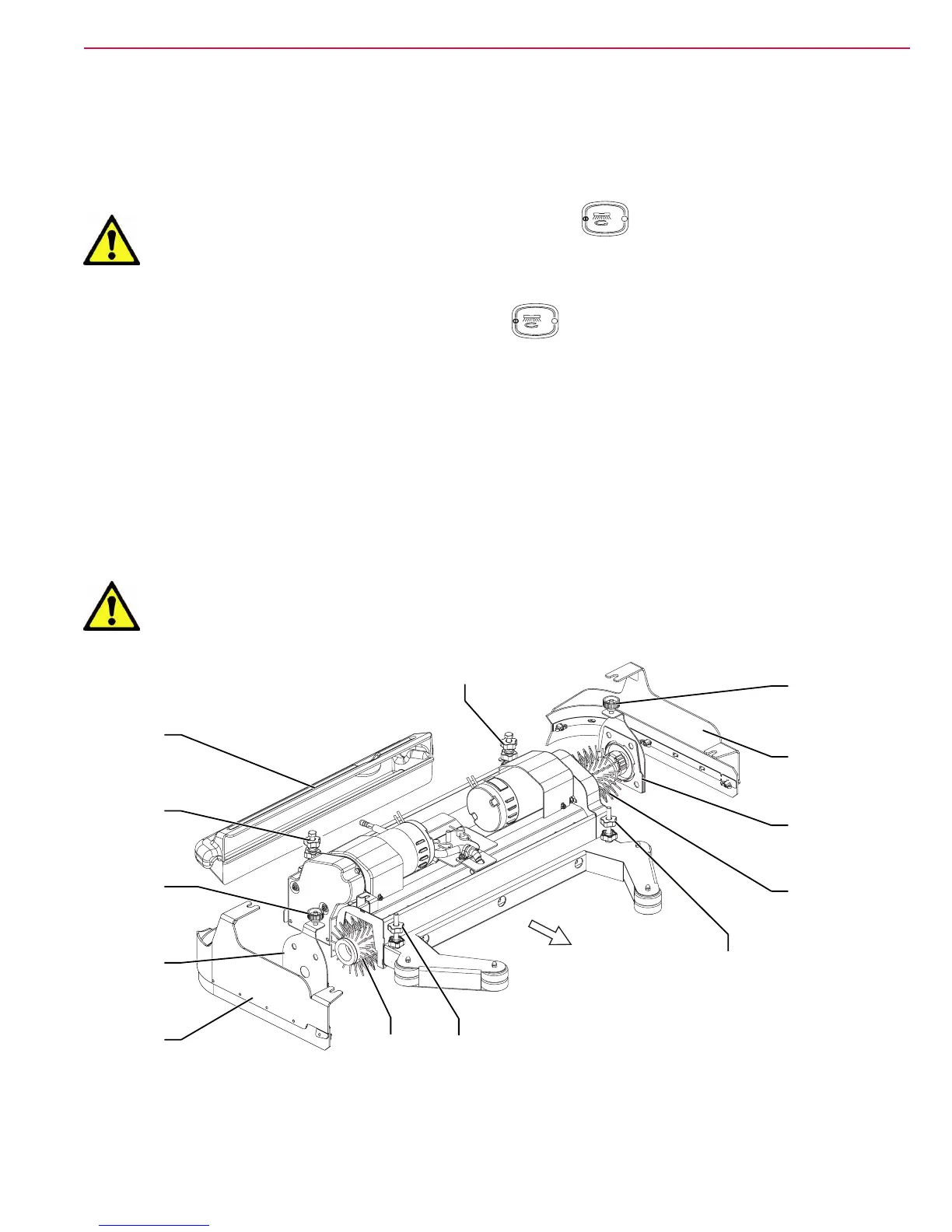

Cylindrical brush installation/removal
1. Insert the ignition key and turn it to “I”.
Warning! Before pressing the scrub On/Off push button , always check that, between the
deck and the machine there is no foreign material which may prevent the deck from
lifting.
2. Lift the deck by pressing the scrub On/Off push button .
3. Turn the ignition key to “0” and remove it.
4. On both sides of the machine, loosen the knobs (A) and remove the side skirt assemblies (B).
5. Unscrew the knobs (C) and remove the lids (D) by pushing the knobs downwards.
6. Install the cylindrical brushes (E), or remove them to install new ones.
7. The cylindrical brushes must be installed on either sides.
8. Install the lids (D) and fasten them with the knobs (C).
9. Install the side skirt assemblies (B), fasten them with the knobs (A).
Warning! If the machine is not perfectly assembled it can cause damages to people and
properties. Always check that all components are assembled before starting the
machine. Carefully inspect the machine before using it.
Front
B
D
C
A
F
E
A
E
D
B
C
A
A
P100363
