Scrub System, Cylindrical 67Service Manual – SC3000
Side skirt check and replacement
Check

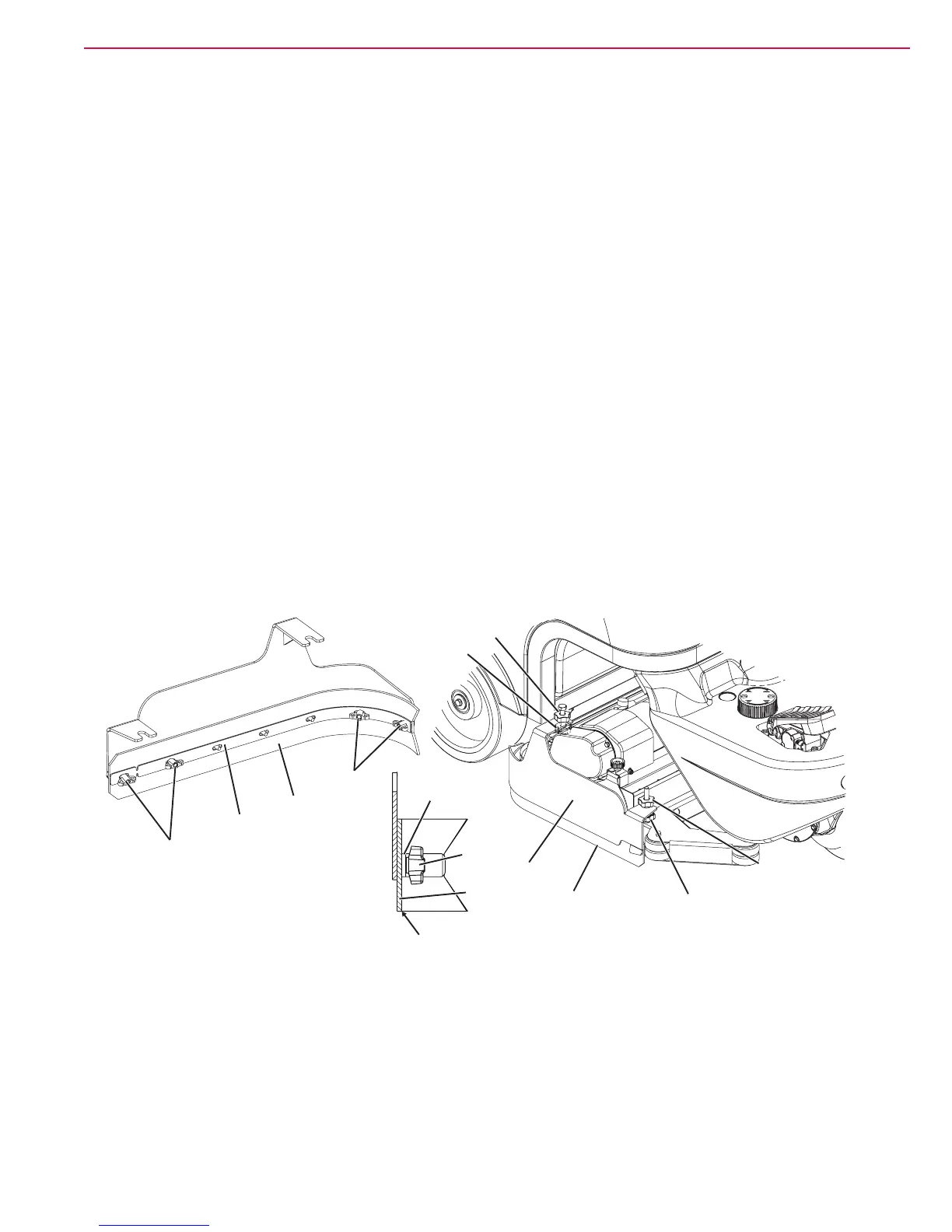

1. Drive the machine on a level oor.
2. Turn the ignition key to “0”.
3. On both sides of the machine, loosen the knobs
(A) and remove the side skirt assemblies (B).
4. Wash and clean the skirt.
5. Check that the skirt lower edge (C):
◦ Lays down on the same level, along all its
length;
◦ Is integral and free from cuts and lacerations;
◦ Has the inner corner (D) that is not worn;
6. Otherwise overturn or replace the skirts
according to the following procedure.
Overturning or replacement
7. Remove the wing nuts (E), then remove the
retaining strip (F).
8. Remove the skirt blade (G) and, if possible,
overturn the blade to replace the lower inner
corner (D) with the opposite one. If the other
corner is worn too, replace the blade.
Assembly and height adjustment
9. Assemble the blades (G) and skirt assembly (B)
in the reverse order of disassembly.
10. Start the machine and lower the cylindrical
brush deck, then check that the side skirt blades
(G):
◦ Slightly touch the oor;
◦ Collect the solution.
11. If necessary stop the machine and adjust the
skirt height by loosening the knob (A) and
turning the knobs (H).
12. After adjusting, tighten the knob (A).
H
A
A
H
B
E
C
E
F
F
I
G
D
E
P100369
