Scrub System, Disc 81Service Manual – SC3000

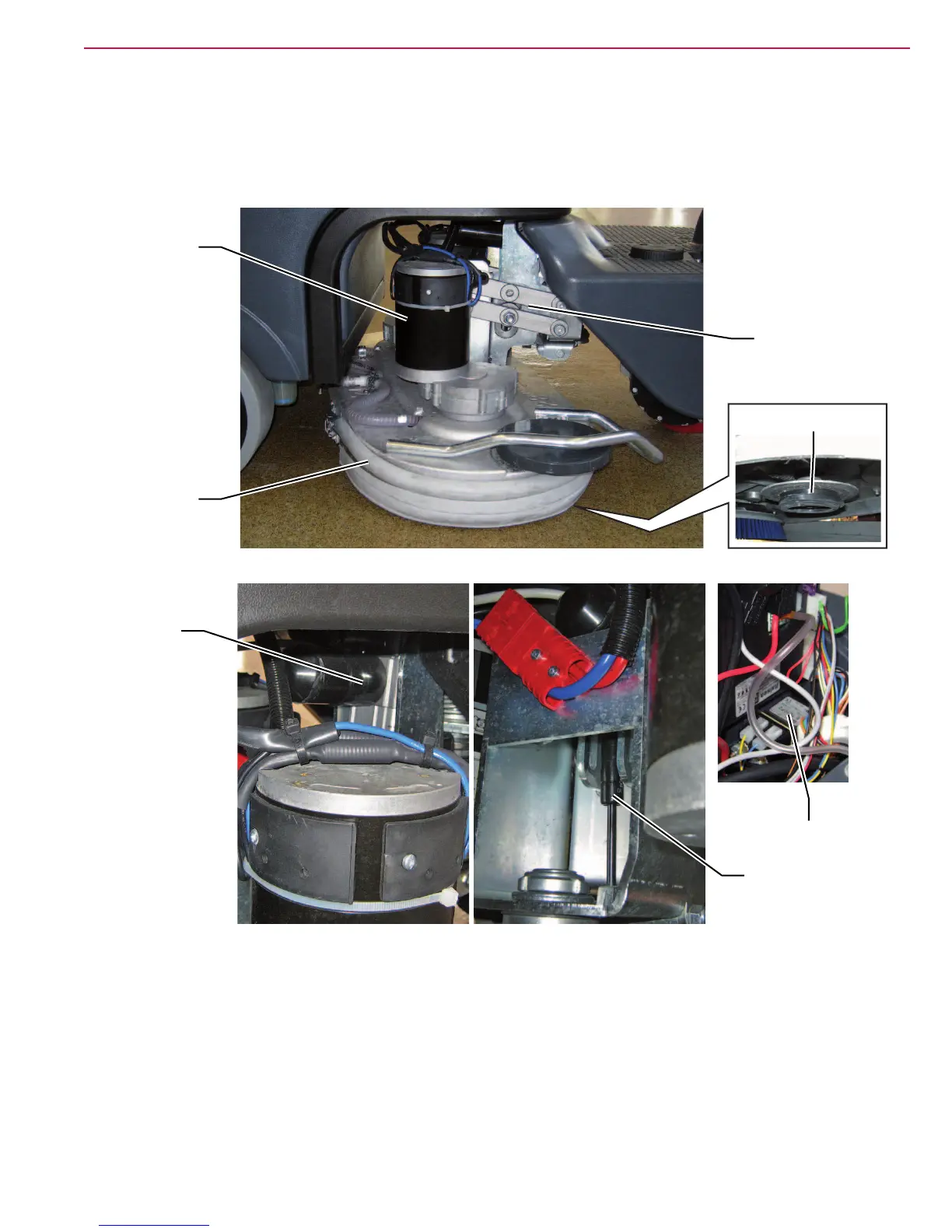

Component Location
• Disc brush deck
• Brush gearmotor (M1, M2)
• Drive hub
• “Magic deck” system
• Brush deck lifting/lowering actuator (M5)
• Gas spring for extra pressure
• Brush electromagnetic switch (ES1)
2
1
4
3
Brush gearmotor
(M1, M2)
Disc brush deck
Magic deck” system
Drive hub
P100571
5
6
7
Brush deck lifting/
lowering actuator
(M5)
Gas spring for extra
pressure
Brush electromagnetic
switch (ES1)
P100572
