GB 22

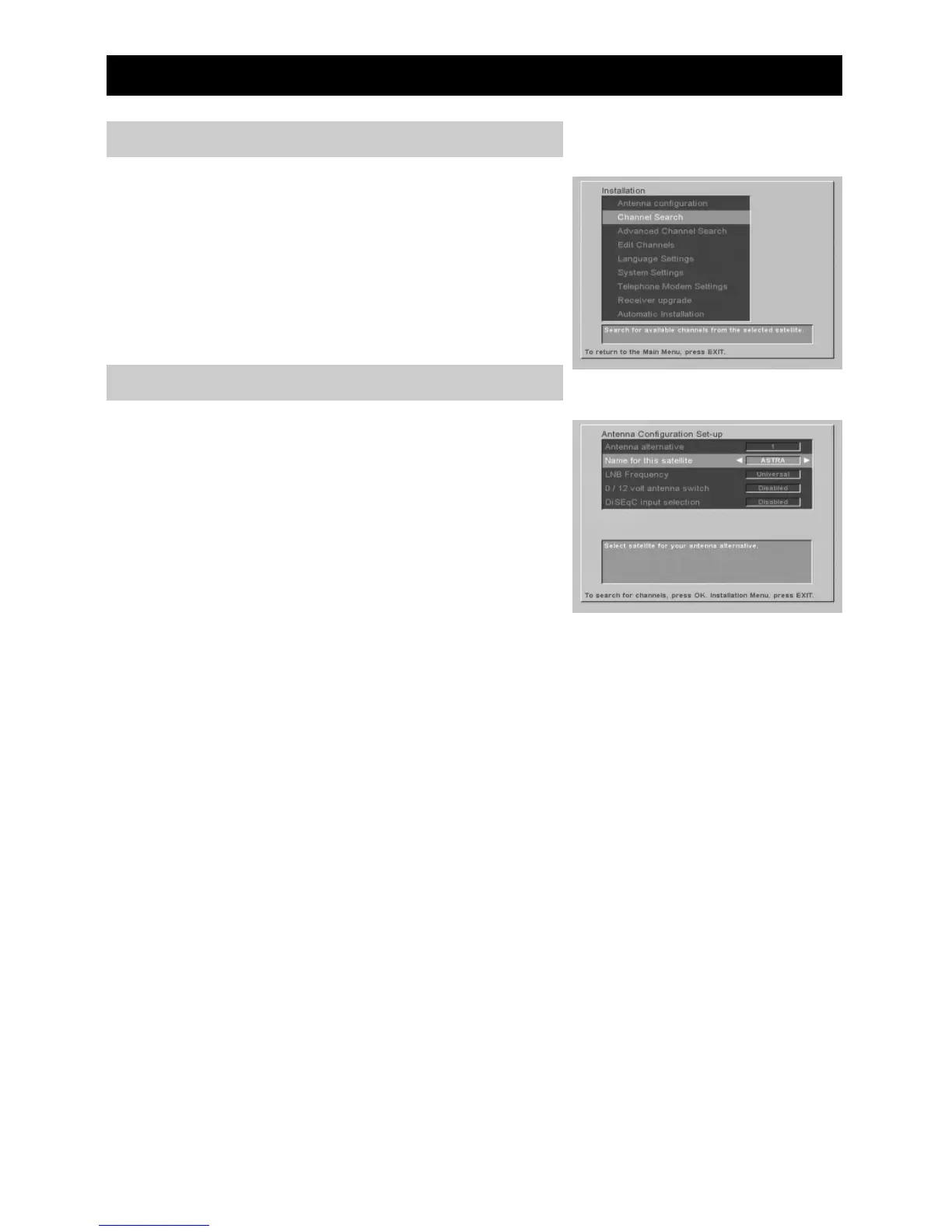

Antenna Configuration Set-Up
If you have changed your antenna configuration since the first
time installation you might have to change some settings.
Antenna alternative: Select an Antenna alternative from 1 to 8.
Please note, that the parameters in the menu are prepro-
grammed, but you can change any of them to suit your combi-
nation.
Name for this satellite: From here you can select a name for the
configuration.
LNB frequency: Selection is possible for different kind of LNBs.
Select the frequency for the LNB that is valid for your combina-
tion. You may also enter an combination with the number buttons
on the remote control.
0/12 V antenna switch: Control of an external LNB switch,
i. e. switching between two different satellite dishes.
DiSEqC input selection: There are in principle two kinds of ex-
ternal DiSEqC switches on the market at present. One for con-
nection of two LNBs. The other one for connection of up to
4 LNBs.
If you connect a two input switch, you must be sure that it is of
a so called “Tone Burst” type.
If this is the case, select
Mini A
for the LNB connected to input
A on the switch; select
Mini B
for the LNB connected to input B.
If you have the other switch, defined as “DiSEqC Level 1” on the
market, select DiSEqC 1, 2, 3 and 4 for each LNB connected
respectively on this switch.
Installation
Select this Menu from the line “Installation” in the Main Menu.
The submenu will give you the opportunity to change the prefer-
ences performed during first time installation. You can also add
features that were not included from the first time installation.
Please note that helpful information for every line is given at the
end of the menu.
Installation Submenus
