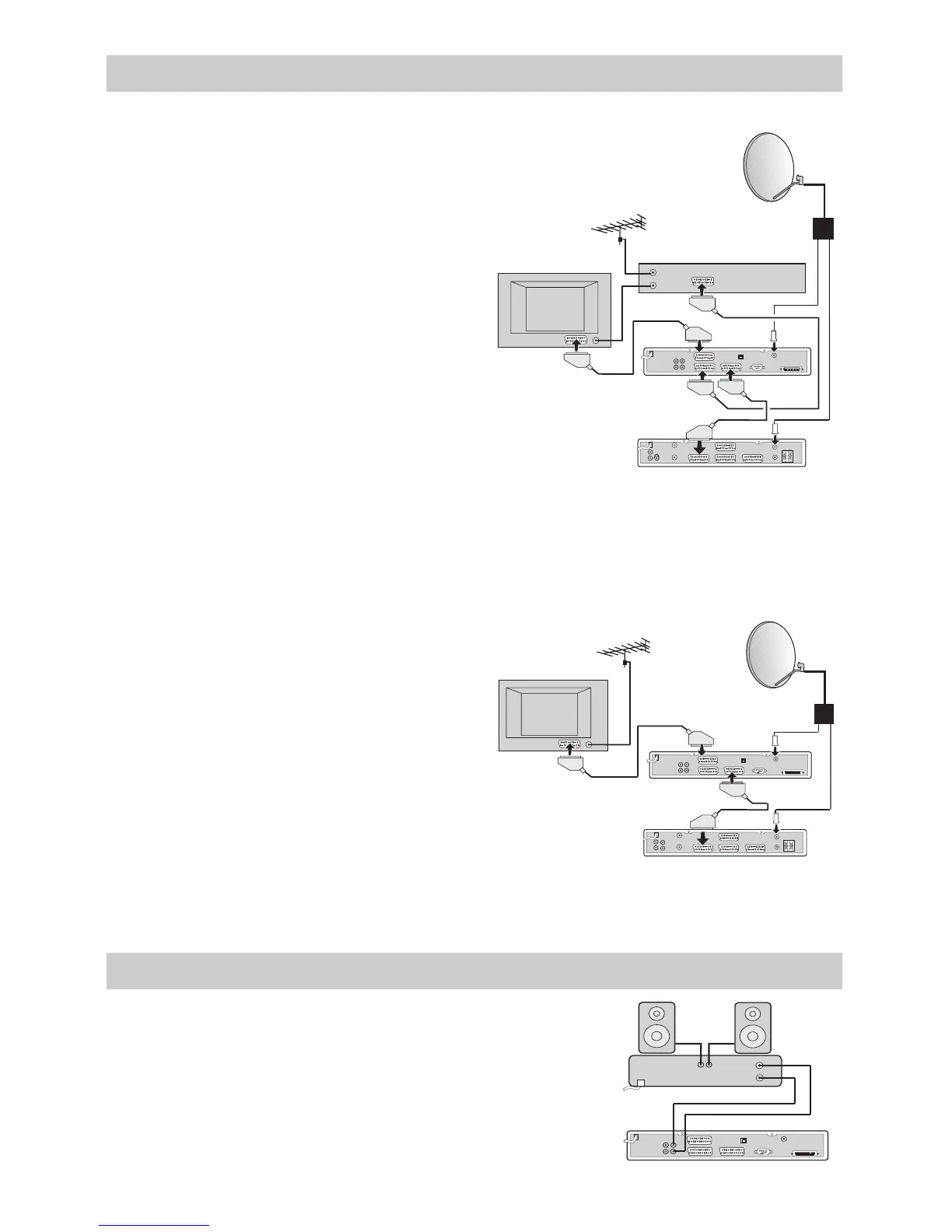

Connecting to a Hi Fi System
• Connect a RCA/Cinch stereo cable from the AUDIO L R sock-
ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA
input sockets on your Hi Fi system.
Connecting to an analogue receiver and a video recorder
• Connect one SCART cable between the TV and the TV SCART
socket on the Mediamaster.
• Connect one SCART cable between the TV SCART socket on
the analogue satellite receiver and the SAT SCART socket on
the Mediamaster.
• Connect one SCART cable between the video recorder and the
VCR SCART socket on the Mediamaster.
• Connect a RF cable from the RF output on the
video recorder to the TV aerial input on the TV.
• Connect the ordinary TV aerial directly to the RF
input socket on the video recorder (TV if no VCR).
In order to switch the signal from the dish between the ana-
logue and digital receivers, you need a Nokia Smart priority
switch (see diagram).
• Connect a coaxial cable between output A on the NOKIA Smart
priority switch (accessory) to the LNB socket on the analogue
receiver.
• Connect a coaxial cable between output B on the NOKIA Smart
priority switch (accessory) to the LNB socket on the Media-
master.
Note: With this connection the analogue receiver has priority
over the Mediamaster and can receive satellite signals irre-
spective of all other active units. The Mediamaster can receive
signals only if the analogue receiver is in standby or unplugged.
With Video Recorder
A
B
Analogue receiver
Mediamaster
Without Video Recorder
