Nokia Mediamaster 9602 S User Manual

GB 5
AUDIO L R
Stereo outputs
for connection
to a HiFi system
TV SCART
for the audio /
video input of
the TV set
SATELLITE
SCART for an
analogue
receiver
VCR SCART
for a video
recorder
* LNB cables also feed the LNB with a sup-
ply voltage of 13/18 V (V/H polarisation) and
a 22 kHz signal for LNB switch.
0/12 VOLT
for an external
LNB switch
Mains lead
230 V AC +/-
15%,50 Hz
LNB *
Satellite dish
input(F-
connector)

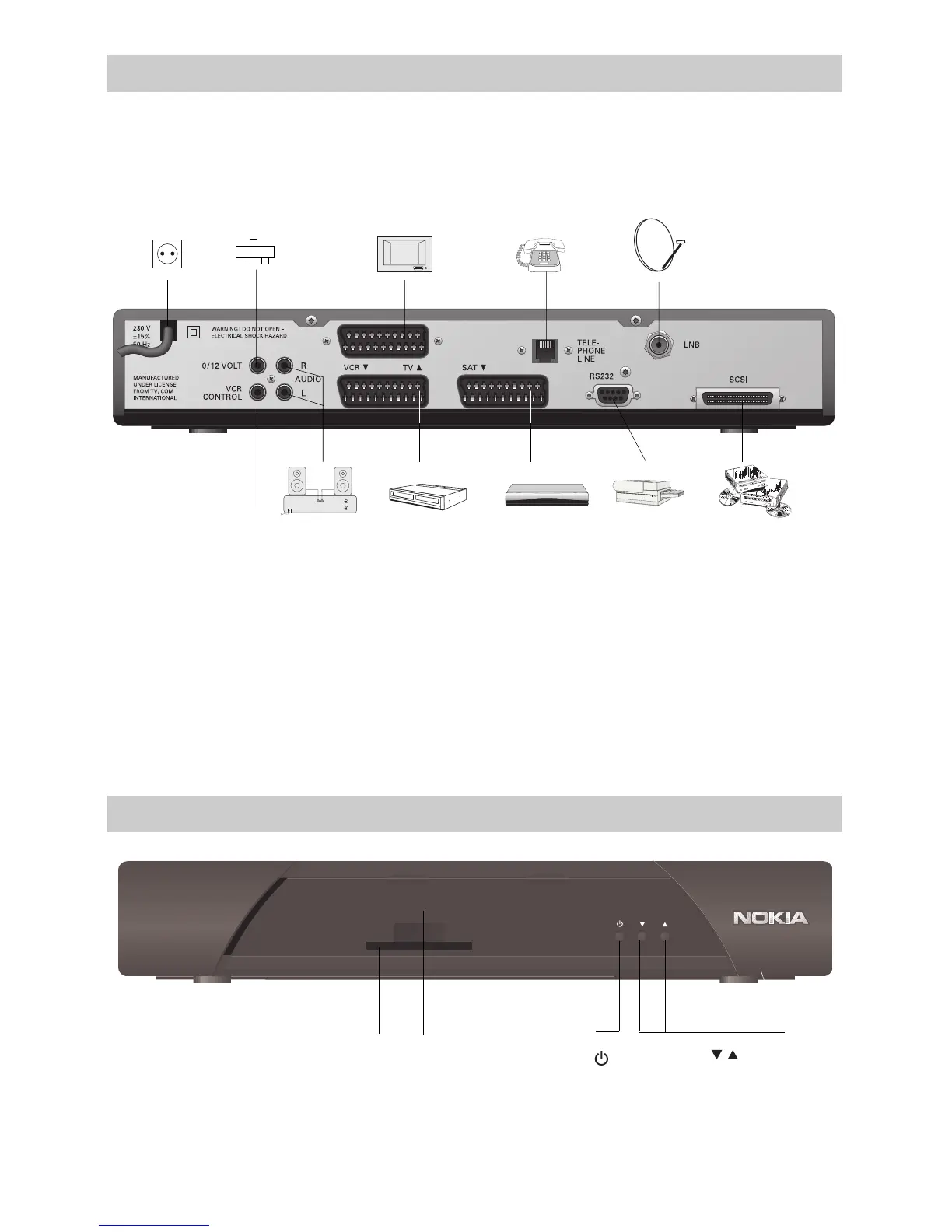

Overview of connections
RS232
for a printer,
PC or a high
speed modem
TELEPHONE LINE
for modem
connection to the
telephone jack
CTRL VIDEO
for an IR-diode
cable connec-
tion to a video
recorder
SCSI
(9610 S)
for a CD-ROM
player or other
high-speed data
equipment
Slot
for the CA module
with Smart Card
to turn the
Mediamaster
on/off (standby)
to step up and
down programme
number
Display
shows programme
information.
When Mediamaster start
up, it displays software
version and boot-loader
number
Front panel
