Nokia Mediamaster 9602 S User Manual

GB 28
Technical Specifications
Control output, 0/12 VOLT
Connector 1 x RCA/Cinch
Voltage 0/12 V 50 mA
Conditional access system:
Interface for the Common Interface
CA-module (DVB Standard)
Front panel, display 8 character alphanumeric matrix
Front panel, buttons standby, progr. number up/down
General data
Article code: The model code, variant and serial number,
are located on a label on the underside of
the housing.
Software: Software version (V.x.xxx) and Boot
version. (Bx.xx or Boot x.xx) are
displayed in the matrix display when the
Mediamaster is powered up.
Supply voltage 230 V AC ±15%, 50-60 Hz
Power consumption max 40 W
Power consumption in
standby 2 W
Working temperature +5° C to +40° C
Storage temperature - 40° C to +65° C
Operating distance for
remote control max 10 meters
Dimensions (w x d x h) 380 x 240 x 65 mm
Weight 2,2 kg approx
21
20
1
2
Transmission Standards
DVB, MPEG-2
Connections
LNB / Tuner input
Connector 1x F-type (LNB)
RF input frequency 950-2150 MHz
RF input power level -20 to -70 dBm
Supply voltage 13,5 /18,5 V ±5%
Max. current 400 mA, overload
protected
Control voltage 22 kHz, 0,65 V
pp
DiSEqC Tone burst A/B or
Level 1, 1-4
RF impedance 75 Ω
TV SCART
Video output 1 V
pp
(± 1 dB) / 75 Ω
Audio output 0,5 V
rms
/ R
L
>10 kΩ
RGB output Internal RGB or from
SATELLITE SCART
RGB bandwidth 6 MHz ±3 dB
Fast blanking output Internal RGB or from
SATELLITE SCART
Status output 0/6/12 V / R
L
10 kΩ
VIDEO SCART
Video output 1 V
pp
(±1 dB) / 75 Ω
Video input 1 V
pp
/ 75 Ω
Audio output 0,5 V
rms
/ R
L
>10 kΩ
Audio input 0,5 V
rms
/ R
L
>10 kΩ
Status input 0/6/12 V / R
L
>10 kΩ
SAT SCART
Video input 1 V
pp
/ 75 Ω
RGB input Yes
Fast blanking input Yes
Audio input 0,5 V
rms
/ R
L
>10 kΩ
Status input 0/6/12 V / R
L
>10 kΩ
AUDIO R L
Connector 2 x RCA (R + L)
Output 0,5 V
rms
/ R
L
10 kΩ
Return channel (Telephone line, Modem)
Connector Modular jack 6-pin
Protocol V 22 bis (9602 S)
V 32 bis (9610 S)
Low speed serial data (RS 232)
Connector 9-pin D-sub
Signals RS232, max. 19.2 kbit/s
fax support
Pin 1 not connected 2 RXD
3 TXD 4 Set to high
5 GND 6 not connected
7 RTS 8 CTS
9 not connected
High speed data (SCSI) (9610 S)
Connector 50-pin high density
Signals SCSI-2 (Up to 3,8 Mb/s)
VCR CONTROL
Connector 1 x RCA/Cinch, IR interface
to external equipment

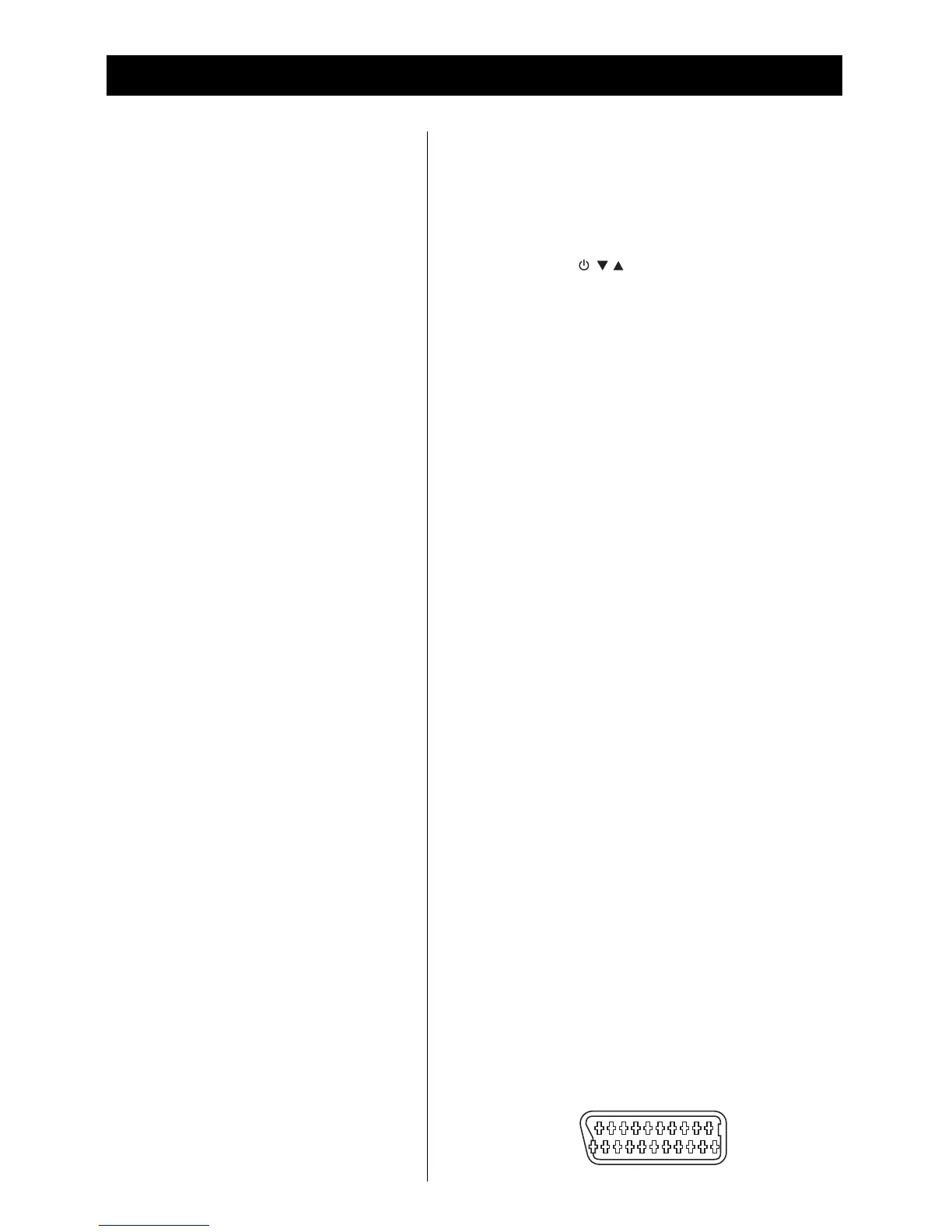

SCART-sockets
TV SAT VIDEO
1 Audio out right ch. - Audio out right ch.
2 - Audio in right ch. Audio in right ch.
3 Audio out left ch. - Audio out left ch.
4 Audio ground Audio ground Audio ground
5 RGB blue ground RGB blue ground -
6 - Audio in left ch. Audio in left ch.
7 RGB blue signal out RGB blue signal in -
8 Switch voltage out Switch voltage in Switch voltage in
9 RGB green ground RGB green ground -
10 AV-link - -
11 RGB green signal out RGB green signal in -
12 - - -
13 RGB red ground RGB red ground -
14 Fast blank. ground Fast blank. ground -
15 RGB red signal out RGB red signal in -
16 Fast blanking out Fast blanking in -
17 Video out ground - Video out ground
18 - Video in ground Video in ground
19 Video out Video out Video out
20 - - Video in
21 Ground (casing) Ground (casing) Ground (casing)
