Nvidia DGX-2 SYSTEM Service Manual

U.2 NVMe Cache Drive Upgrade from 8 to 16
DGX-2 System DU-09224-001 _v09|12
/systems/localhost/storage/drives/nvme5n1
Properties:
Capacity = 3840755982336
BlockSizeBytes = 7501476528
SerialNumber = 174719FCF9F1
PartNumber = N/A
Model = Micron_9200_MTFDHAL3T8TCT
Revision = 100007H0
Manufacturer = Micron Technology Inc
Status_State = Enabled
Status_Health = OK
Name = Non-Volatile Memory Express
MediaType = SSD
IndicatorLED = N/A
EncryptionStatus = N/A
HotSpareType = N/A
Protocol = NVMe
NegotiatedSpeedsGbs = 0
Id = 5
3. Determine the manufacturer (Samsung or Micron) and model from the Model= entry in the
output, and then order the additional drives from NVIDIA Enterprise Support, specifying the
manufacturer and model.
4.3. Installing the Optional NVMe Drives
1. Be sure you have obtained the additional drives.
2. Back up any critical data to a network shared volume or some other means of backup.
3. Power off the system using the power button.
4. Remove the blank filler disks from slots 2, 3, 6, 7, 10, 11, 14, and 15.
Squeeze the levers on the handle and pull the blank filler disks out.

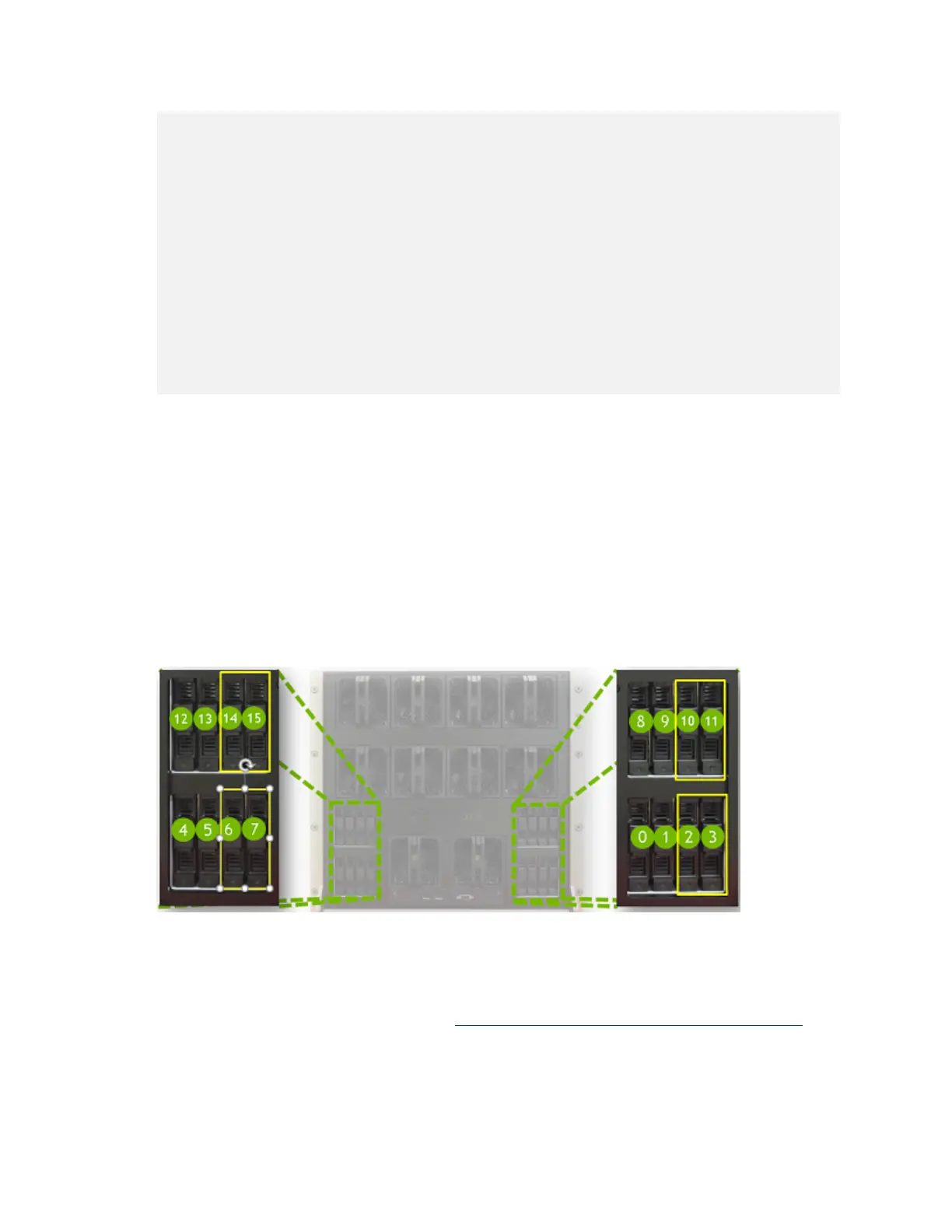

5. Install the additional eight NVMe drives in slots 2, 3, 6, 7, 10, 11, 14, and 15.
6. Power on the system.
Perform the tasks describes in the chapter U.2 NVMe Cache Drive Post-Installation Tasks.
