Oki Microline 3320 User Manual

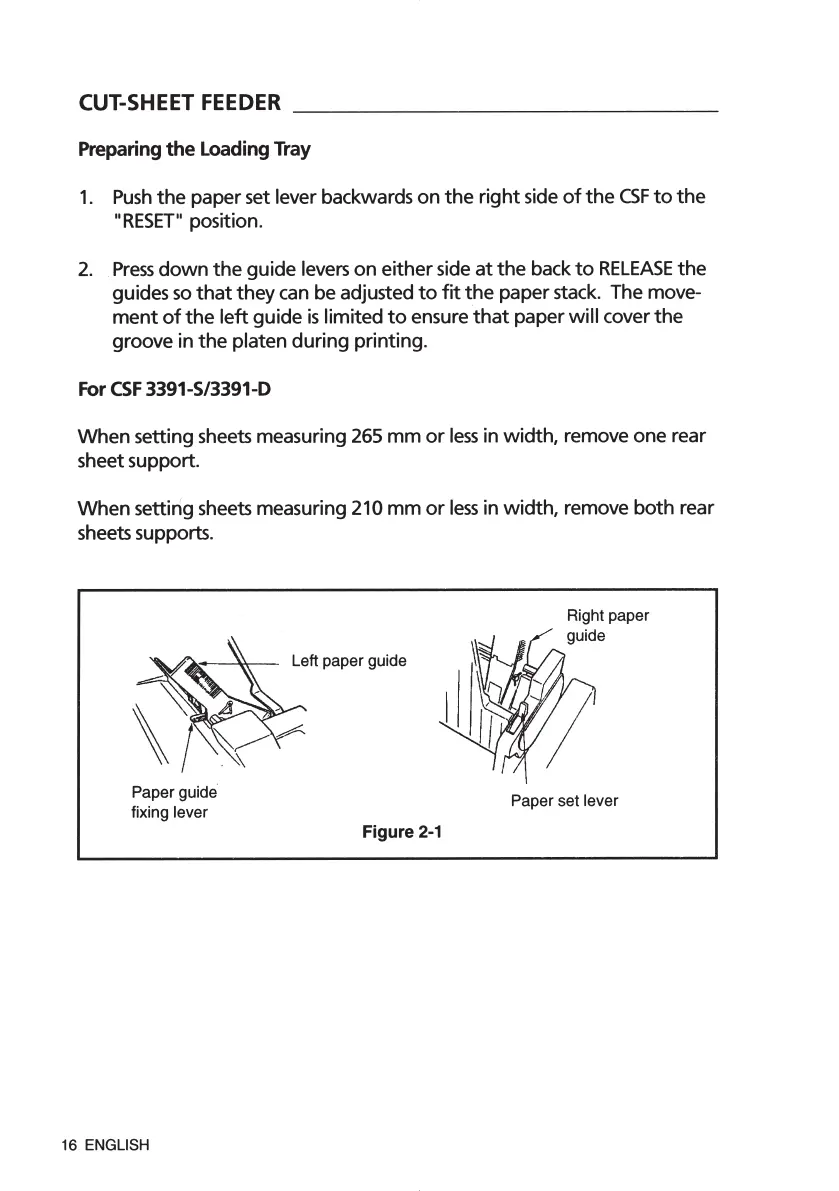

CUT-SHEET FEEDER
Preparing the Loading Tray
1. Push the paper set lever backwards on the right side of the CSF to the
"RESET" position.
2. Press down the guide levers on either side at the back to RELEASE the
guides so that they can be adjusted to fit the paper stack. The move-
ment of the left guide is limited to ensure that paper will cover the
groove in the platen during printing.
For
CSF 3391-S/3391-D
When setting sheets measuring 265 mm or less in width, remove one rear
sheet support.
When setting sheets measuring 210 mm or less in width, remove both rear
sheets supports.
ML3320id8.indd24ML3320id8.indd24 2015/05/0817:542015/05/0817:54
プロセスシアンプロセスシアンプロセスマゼンタプロセスマゼンタプロセスイエロープロセスイエロープロセスブラックプロセスブラック

Oki Microline 3320 Specifications

General

Brand	Oki
Model	Microline 3320
Category	Printer
Language	English
