Oki ML3410 User Manual

Basic Control
Basic Control

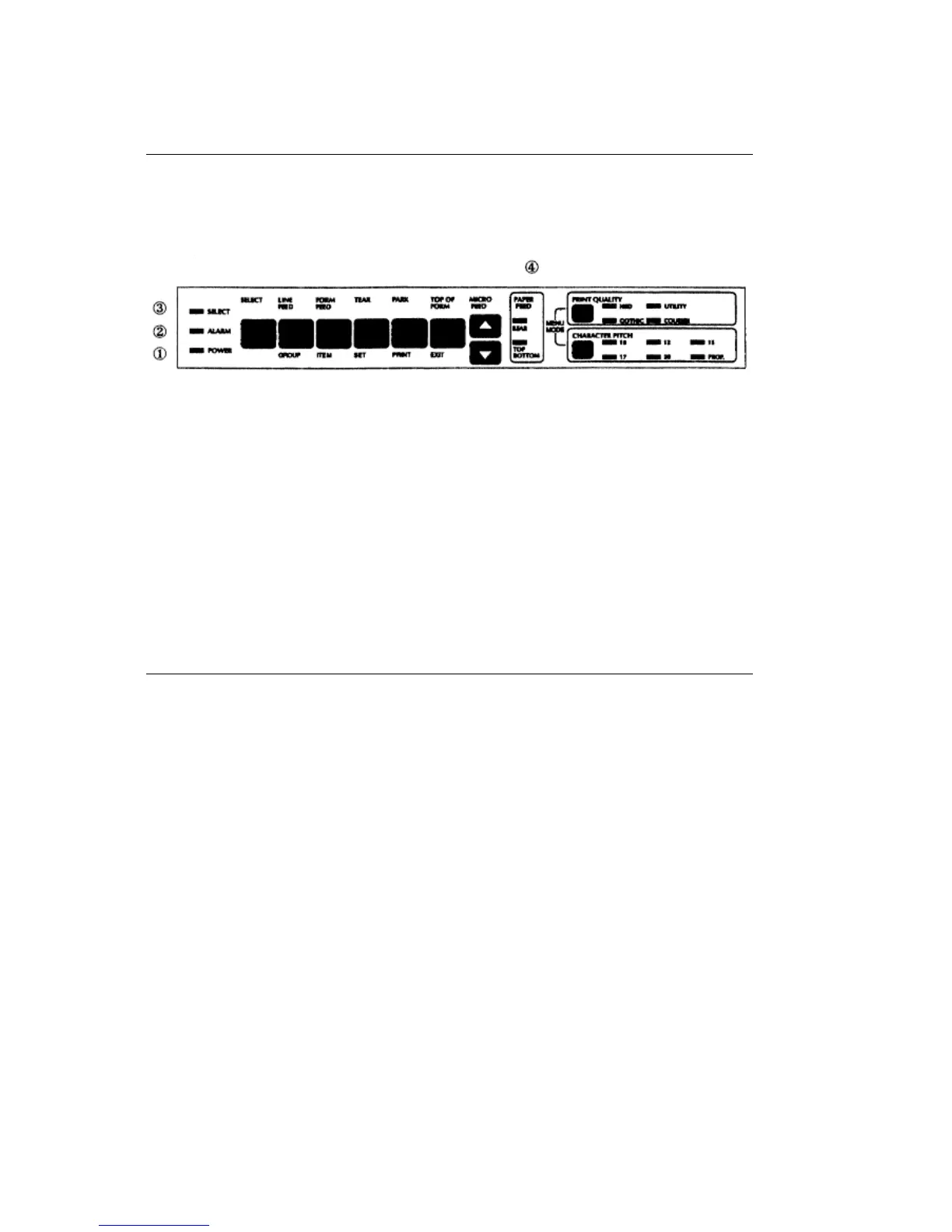

The basic control portion of the panel displays the status and controls the basic functions of the
printer.
There are five lights in this part of the panel. They reflect the printer status at any given time.
1.
POWER light:
The POWER light is lit whenever the printer is on.
2.
ALARM light:
This light is lit when an error condition exists such as a paper jam, cover open, the
printer is out of paper, and so on.
3.
SELECT light:
This light is lit when the printer is ready to receive data. If the SELECT light is not
lit, the printer is deselected and can•t receive data. If the light flashes, there•s a problem with the
printer that requires service.
4.
PAPER FEED lights:
these lights indicate which paper path is active.
Your printer has two modes of operation: Print mode and Menu Select mode. You will notice that
there are functions printed above and below the basic control buttons.
The functions above the buttons are active during Print mode; those below the buttons are active during
Menu Select mode.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
