Oki ML3410 User Manual

The Bottom Feed Tractor Unit
The Bottom Feed Tractor Unit
This separate unit makes it easy and convenient for you to use continuous forms paper fed from the
bottom of the printer.
To install the bottom feed unit:

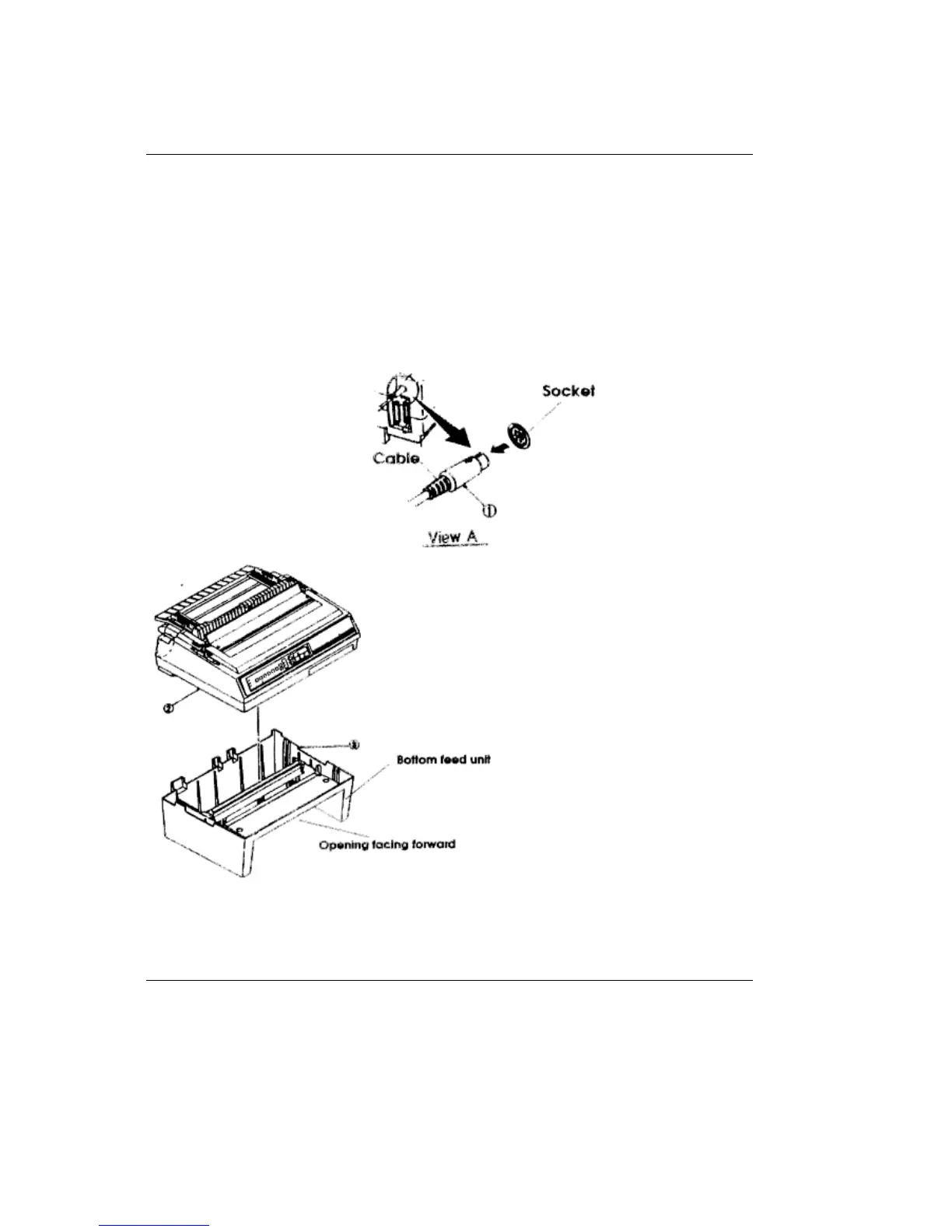

1. Place the unit where you plan to put the printer. The opening in the unit should face the same
direction as the front of the printer.
2. Pick up the printer and put it on top of the bottom feed unit as shown. Be sure the printer is firmly
seated on the unit.
3. Plug the cable on the unit into the round socket above the parallel interface connector on the
back of the printer. The arrow on the plug faces up.
Caution
Do not attempt to pick up the printer and bottom feed unit together. Disconnect the printer from
the bottom feed unit
and move them separately.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
