Choosing Parallel or Serial
Choosing Parallel or Serial
Your Pacemark 3410 has both a parallel and a serial port. All you have to do is decide which one
you want to use. You can only use one of them at a time.

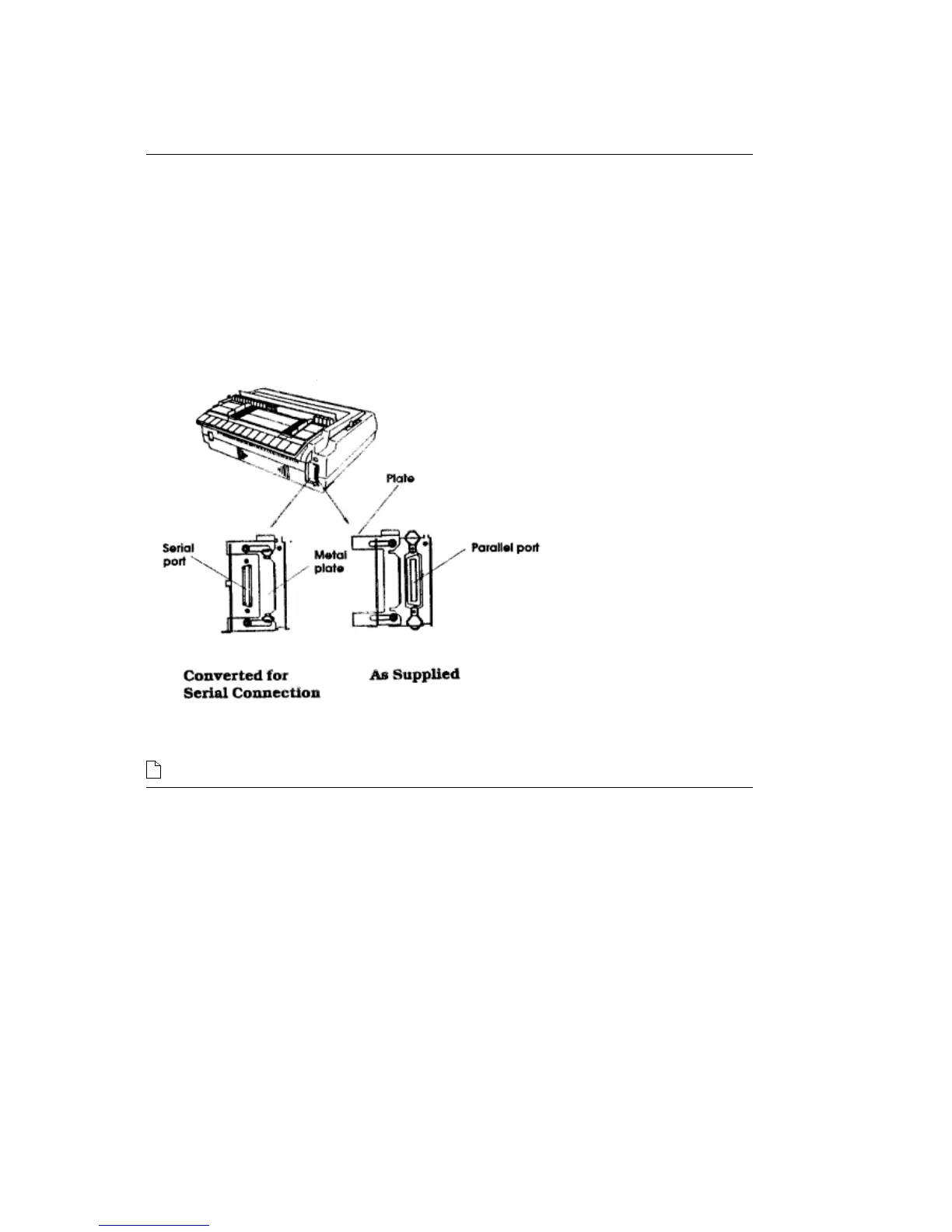

When you take the printer out of the box, there will be a metal plate over the serial port. If you want
to use the parallel port, just plug in your cable and fasten the clips to it.
If you want to use the serial interface, loosen the metal plate with a Phillips screwdriver and slide it
to the right to uncover the serial port. Plug your cable into the serial port and tighten the screws.
You can fasten the metal plate over the parallel port to eliminate confusion in the future.
You can fasten the metal plate over the parallel port to eliminate confusion in the future. If you use the
serial port, you may have to enter the Menu Select mode and adjust the menu settings. See Chapter 3 (
) for an explanation of the Menu Select mode.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
