Olympus CX43 User Manual

20
2

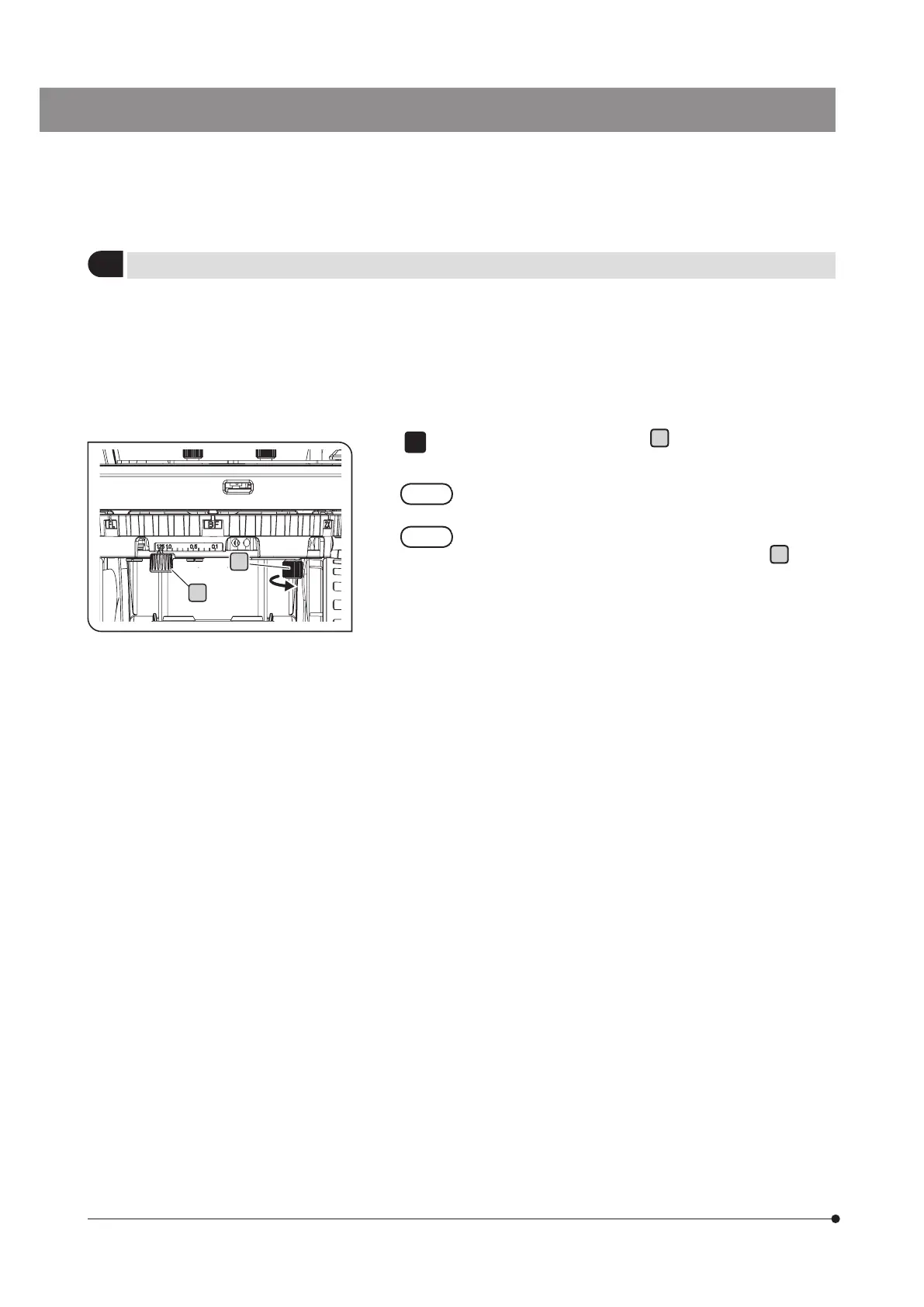

Adjusting the aperture diaphragm
The aperture diaphragm is a diaphragm to adjust the numerical aperture
of the condenser.
Adjusting the numerical aperture of the condenser appropriately with
respect to the numerical aperture of each objective allows you to observe
the specimen with the best contrast and resolution. (For the aperture
diaphragm, see page 31.)
Move the aperture diaphragm lever
a
to right and left direction to
match with the numerical aperture (NA) of the objective in use.
For darkfield observation, fully open the aperture
diaphragm.
If you want to fix the aperture diaphragm at the desired
position, rotate the aperture diaphragm fixing knob
b
at the
back of the condenser in the arrow direction to fix the aperture
diaphragm.
1
NOTE
TIP
a
b

Olympus CX43 Specifications

General

Category	Microscope
Type	Biological Microscope
Illumination	LED
Focus	Coaxial coarse and fine focus knobs
Optical System	UIS2 optical system
Power Supply	AC 100-240V, 50/60 Hz
Observation Method	Brightfield
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Condenser	Abbe condenser (N.A. 1.25)
Nosepiece	Revolving nosepiece with 4 positions
