CX43
6 Image acquisition
1
Camera adapter
The observed image can be acquired by attaching the camera adapter and the digital camera for microscope to the
trinocular tube. (For attaching procedures, see page 38.)
When using the camera adapter, be sure to adjust the parfocality (camera adapter and eyepieces).
Otherwise, the image through eyepieces and the image acquired by the camera are not focused at
the same position.
For procedures to adjust the parfocality, refer to the instruction manual of the respective camera
adapter.
NOTE

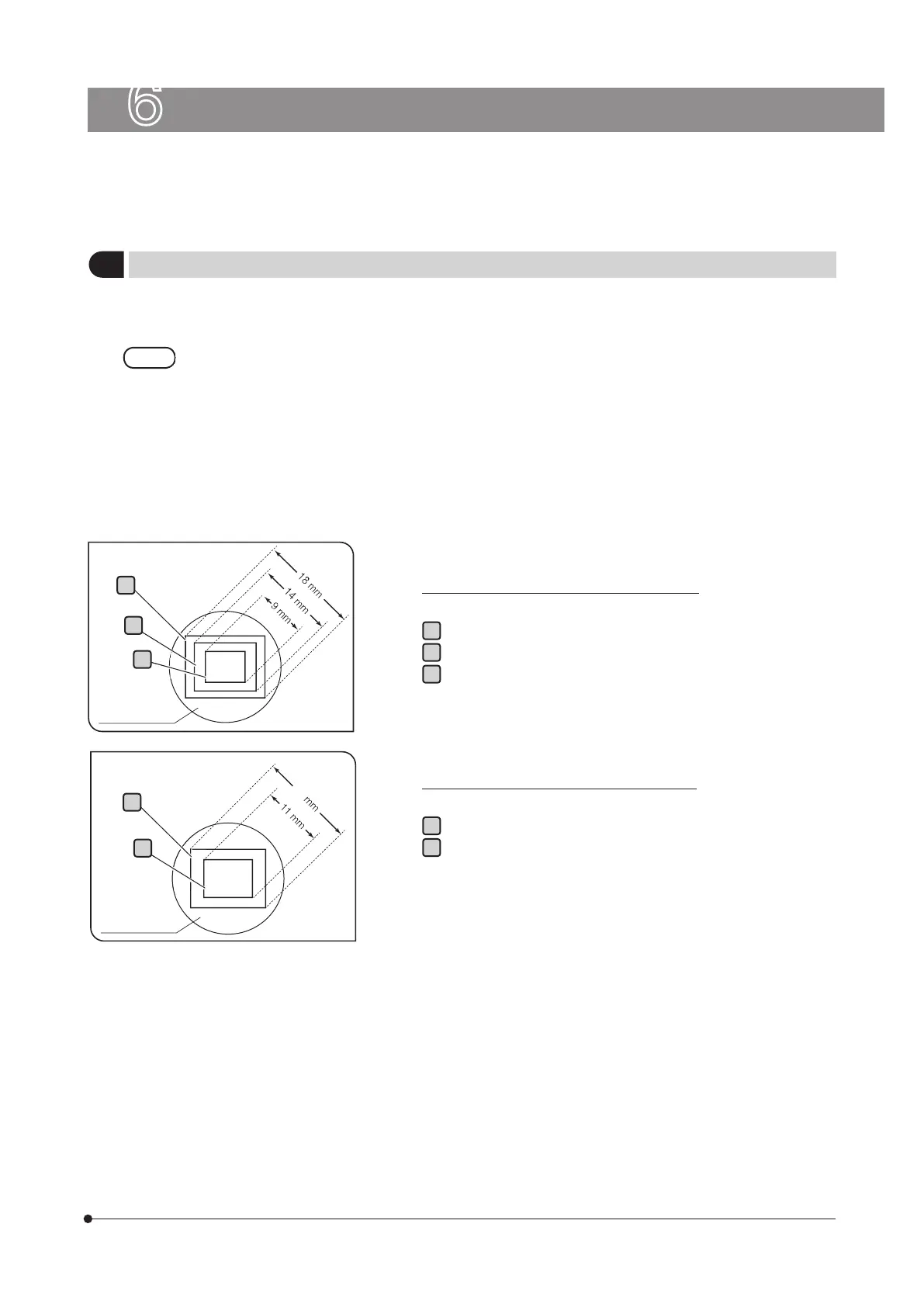

The image acquisition range is determined by the size of the image sensor
used in the camera and the magnification of the camera adapter.
The image acquisition ranges for the observation range of the eyepiece
WHB10X (Field number 20) are as follows.
· Digital camera for microscope (DP22) (Picture A on the left)
Image sensor size (diagonal) : 1/1.8-inch (9mm)
The image acquisition range
a
Camera adapter 1x (U-TV1XC) : 9mm
b
Camera adapter 0.63x (U-TV0.63XC) : 14mm
c
Camera adapter 0.5x (U-TV0.5VC-3) : 18mm
· Digital camera for microscope (DP27) (Picture B on the left)
Image sensor size (diagonal) : 2/3-inch (11mm)
The image acquisition range
a
Camera adapter 1x (U-TV1XC) : 11mm
b
Camera adapter 0.63x (U-TV0.63XC) : 17mm)
a
b
c
A
17
a
b
B
Observation
range by
standard 10X
eyepieces
Observation
range by
standard 10X
eyepieces

Olympus CX43 Specifications

General

Category	Microscope
Type	Biological Microscope
Illumination	LED
Focus	Coaxial coarse and fine focus knobs
Optical System	UIS2 optical system
Power Supply	AC 100-240V, 50/60 Hz
Observation Method	Brightfield
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Condenser	Abbe condenser (N.A. 1.25)
Nosepiece	Revolving nosepiece with 4 positions
