Olympus CX43 User Manual

37
CX43
11 Assembly

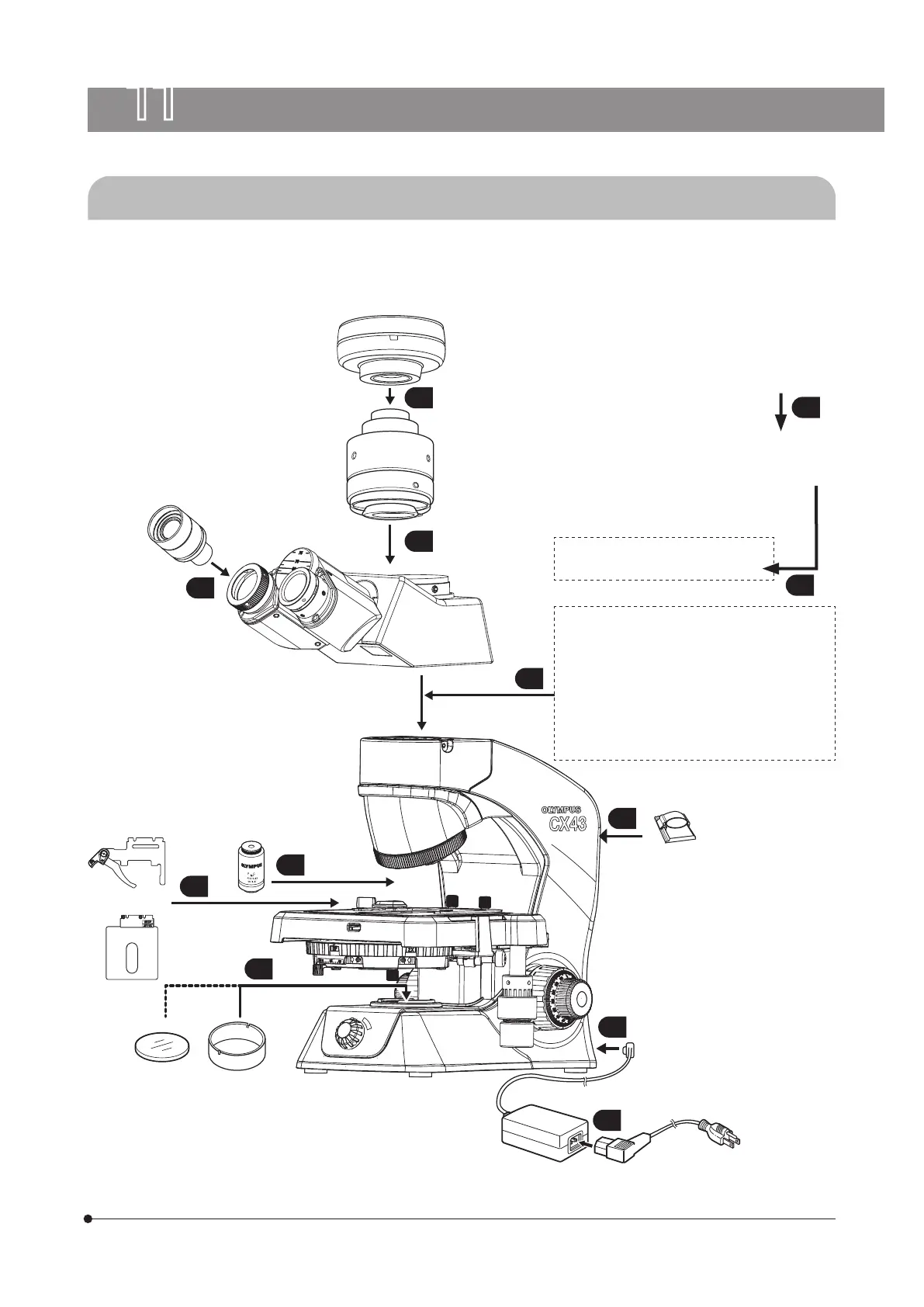

11-1 Assembly diagram
The number in the following diagram indicates the order to attach each unit.
The detail assembly procedures are described on and after next page.
1
2
3
6
7
5
8
2
8
WHB10X
WHB10X-H
C3X-10X/18
C3X-10X/18-H
Eyepiece
Eyepiece
Camera adapter
U-TV1XC
U-TV0.63XC
U-TV0.5XC
Camera
DP22 / DP27
Eyepiece micrometer
Trinocular tube
U-CTR30-2
Binocular tube, etc. (U-CBI30-2)
Tilting binocular tube, etc. (U-CTBI)
Polarizer
U-POT
Diameter:
45mm
Filter
UIS objective
Outside diameter:
24mm
Simple polarizing intermediate attachment
(CX3-KPA)
Eye-point adjuster (U-EPA2)
Opposed discussion tube (U-DO3)
Drawing device (U-DA)
Arrow pointer (U-APT)
Trinocular intermediate attachment
(U-TRU, U-TRUS)
Intermediate magnification changer
(U-CA, U-ECA, U-ECA1.6X)
Specimen
holder
CX3-HLDT
Power cord
AC adapter
CX3-SHP
4
4
9
Allen wrench
holder

Olympus CX43 Specifications

General

Category	Microscope
Type	Biological Microscope
Illumination	LED
Focus	Coaxial coarse and fine focus knobs
Optical System	UIS2 optical system
Power Supply	AC 100-240V, 50/60 Hz
Observation Method	Brightfield
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Condenser	Abbe condenser (N.A. 1.25)
Nosepiece	Revolving nosepiece with 4 positions
