38
1

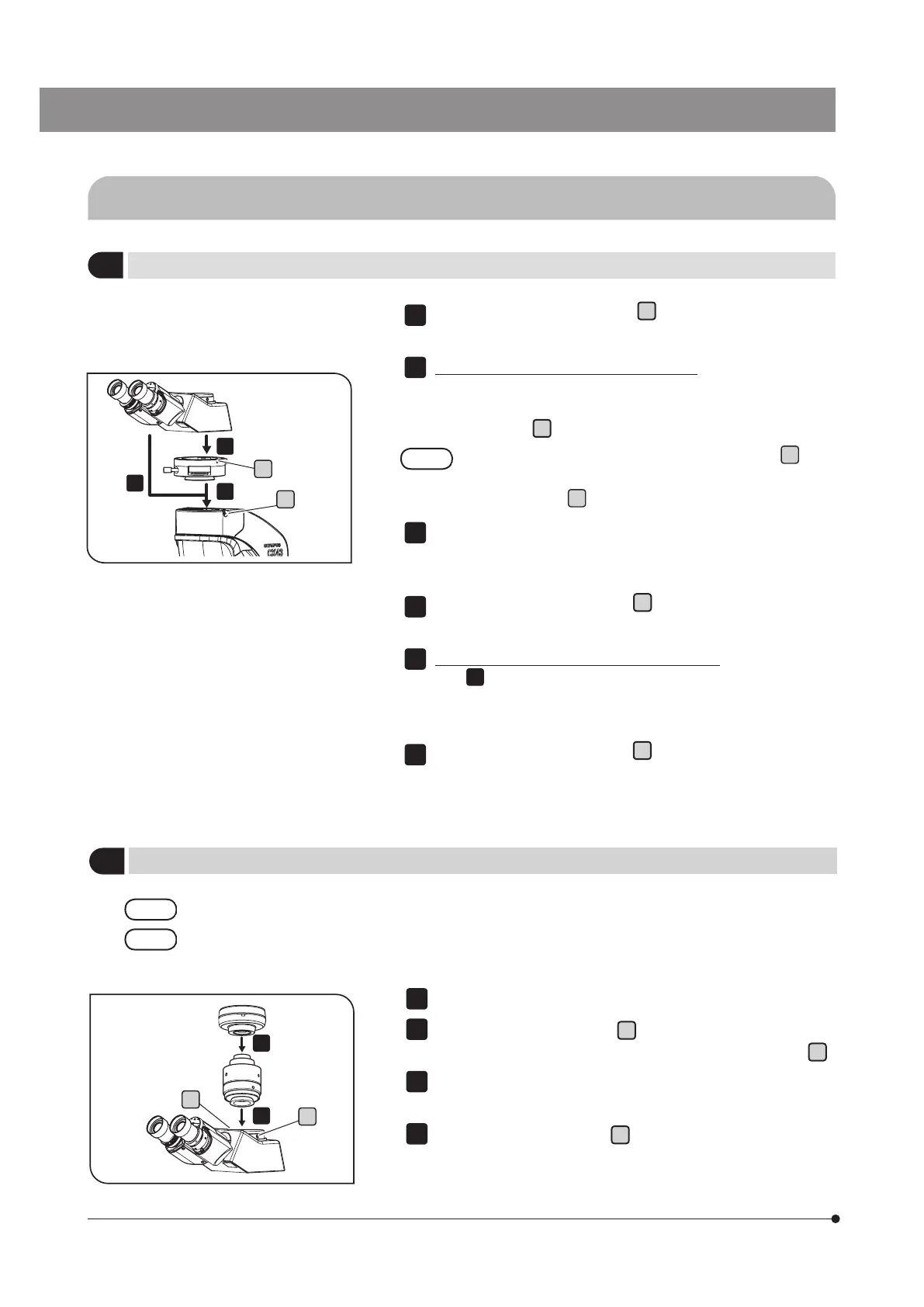

Attaching the intermediate attachment and the tube
11-2 Assembly procedures
Loosen the tube clamping screw
a
of the microscope frame with
the allen wrench.
When attaching the intermediate attachment
Fit the circular dovetail of the intermediate attachment into the tube
attaching portion of the microscope frame, and tighten the tube
clamping screw
a
to secure the intermediate attachment firmly.
At this time, the direction of the tube clamping screw
a
of the
microscope frame must be same as the direction of the tube
clamping screw
b
of the intermediate attachment.
Fit the circular dovetail of the tube into the tube attaching portion of the
intermediate attachment, and face the scale values of the interpupillary
distance of the tube to the front.
Tighten the tube clamping screw
b
of the intermediate attachment
to secure the tube firmly.
When not attaching the intermediate attachment
After
1
, fit the circular dovetail of the tube into the tube attaching
portion of the microscope frame, and face the scale values of the
interpupillary distance of the tube to the front.
Tighten the tube clamping screw
a
to secure the tube firmly.
1
2
3
4
5
6
2
Attaching the camera adapter
When attaching the camera adapter, also refer to the instruction manual of the camera adapter in use.
Be sure to use the specified camera adapter and the camera. Using those not specified cannot
ensure the stability of the microscope.
Attach the camera adapter to the camera.
Loosen the clamping screws
a
of the camera adapter attaching
portion sufficiently using the allen wrench, and remove the cap
b
.
Insert the camera adapter into the camera adapter attaching portion
of the trinocular tube.
Tighten the clamping screws
a
completely.
1
2
3
4
a
b
2
3
5
a
b
1
3
