- opti
onal limit switch on pre-stretch carriage door, it intervenes only when the machine is
running if the carriage door opens. By intervening it stops the machine in the shortest possible
time.
3.3 PROTECTIONS AND FIXED REPAIRS
During designing, a solution has been adopted to prevent / limit the access to dangerous zones of
the machine: a series of screw-fixed guards, completely preventing the access to the machine’s
internal parts.
Due to the fixing systems of the guards, tools are needed to open or remove them.
Onl
y remove fixed guards during maintenance operations and while the machine is
disconnected from the power supply.
Nev
er remove the pictograms from the guards, and immediately replace them if they are
faded or not easily readable.
Nev
er remove fixed guards while the machine is operating.
Nev
er start the machine if any fixed guard is missing. Before starting the machine, make
sure that fixed repairs are properly installed.
Nev
er modify or replace fixed repairs with repairs in other materials, or with a different form
or function.
The
table rotation electric motor is covered with a casing fixed to the machine frame

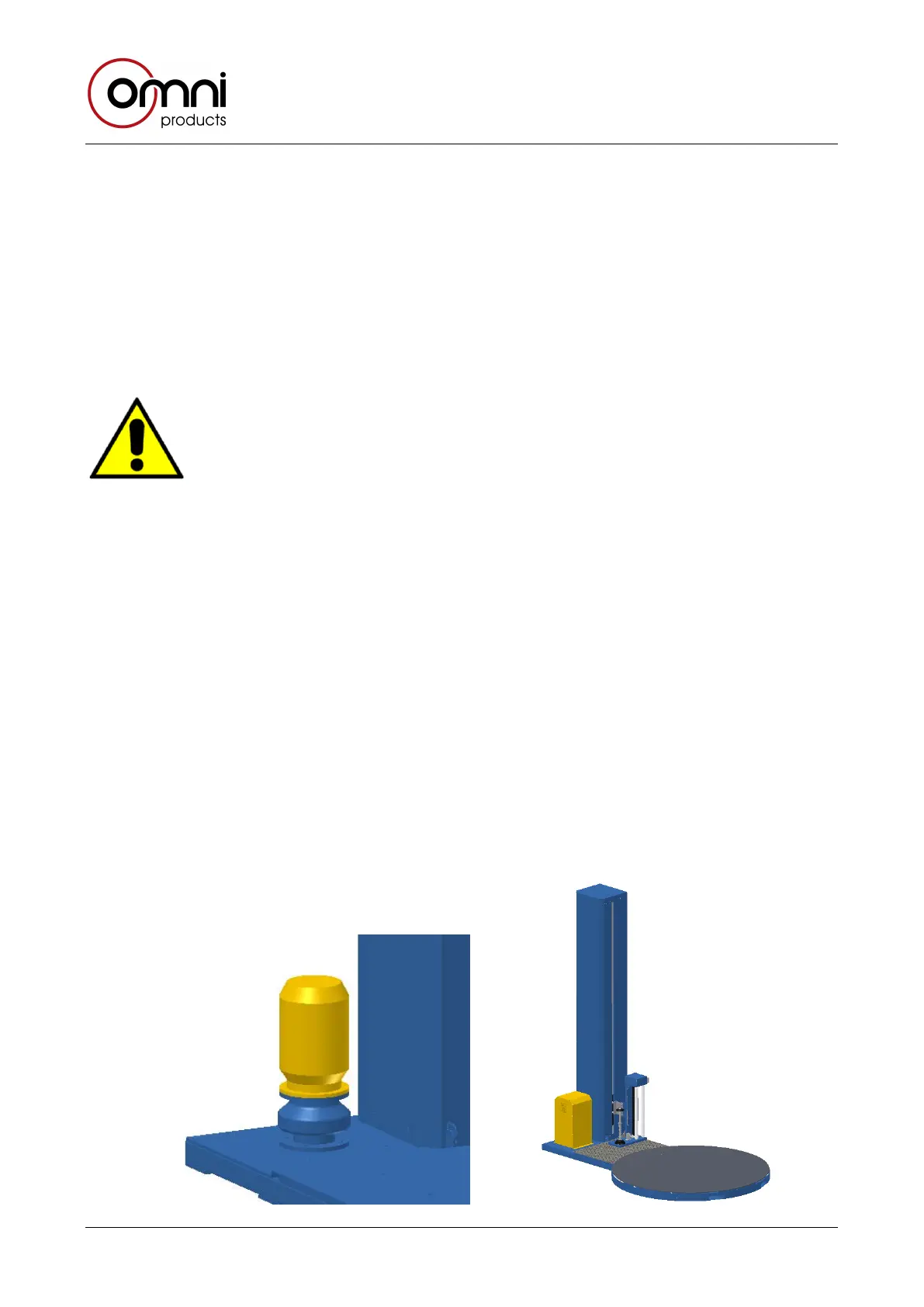

In the following pictures power motor is shown with and without fixed guard.
CEC BASE IGM REV13 27
