4-2-6 Properties Window

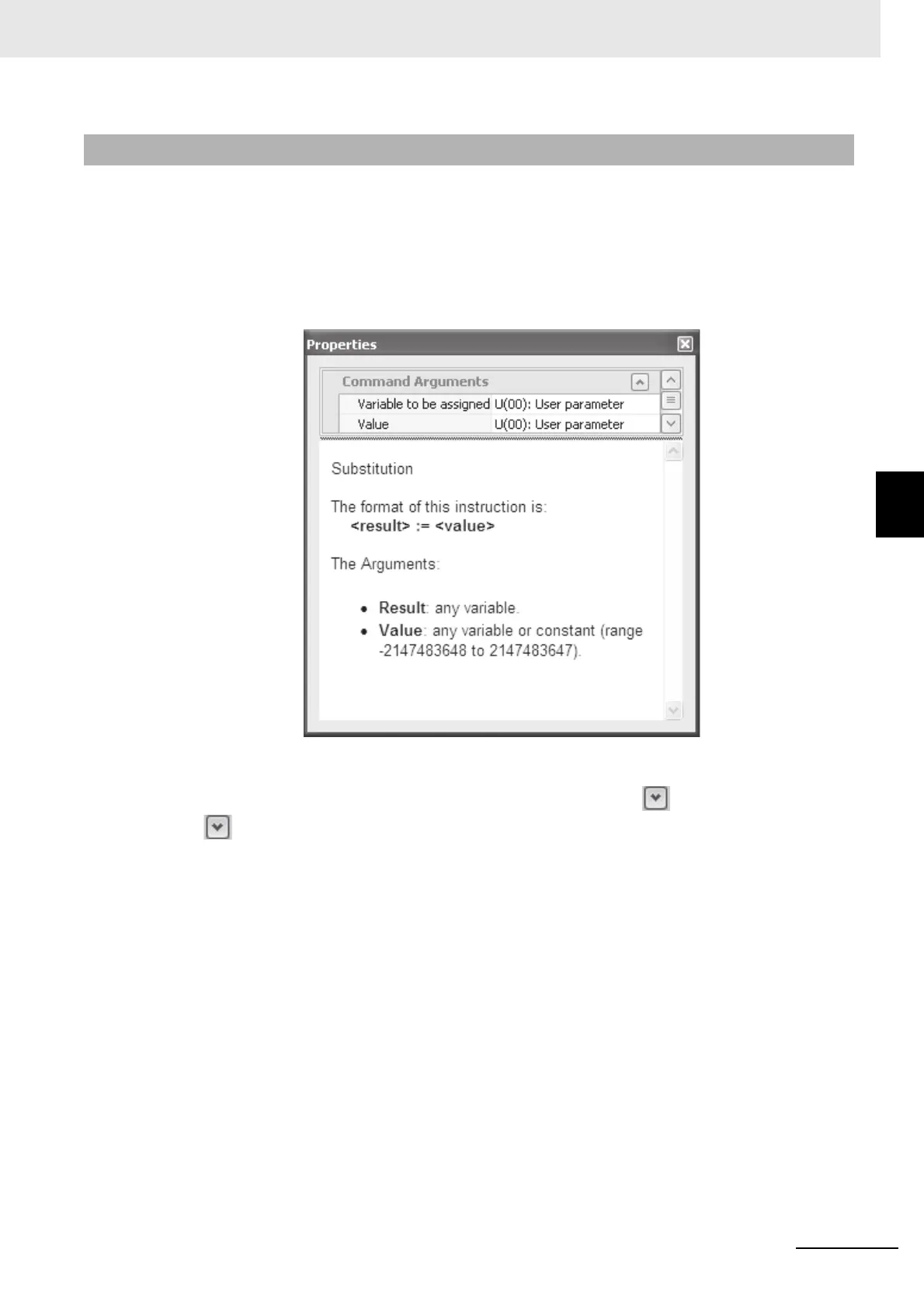

The Properties window allows you to edit the properties of the block which is currently selected in the
flowchart program.
The Properties is displayed when the DriveProgramming Editor is started. You can also show or hide it
by clicking [DriveProgramming] - [Properties] in the [View] Menu.
The Properties window is displayed by default at the right side of the the CX-Drive.
You can separate the window by double-clicking the title bar (wide frame of the window).
To change one block command argument, select the block in the flowchart and place the cursor on the
section where you want to edit in the Properties window.
• If the block argument has options, click on the current value to display icon at the rightmost side.
Click or double-click the current value to unfold the available options in the pulldown menu.
• If the block argument does not have options, click its current value and enter the new one to change
the value. A warning will be displayed if the entered value exceeds the valid range.
• If the block argument can have both an option and a custom value, you can set a value directly by
clicking the current value. Also, double-clicking the current value will unfold the available options
in
the pulldown menu
.
