3 Configuration Units
3-16
NJ-series CPU Unit Hardware User’s Manual (W500)
NJ-PA3001
NJ-PD3001
Supply 100 to 240 VAC (allowable: 85 to 264 VAC).
The NJ-PA3001 has a wide input range, so it does not have voltage switching terminals.
Supply 24 VDC (allowable: 19.2 to 28.8 VDC.)
Ground to a resistance of 100  or less to increase noise resistance and avoid electric shock.
Ground to a resistance of 100  or less to avoid electric shock.

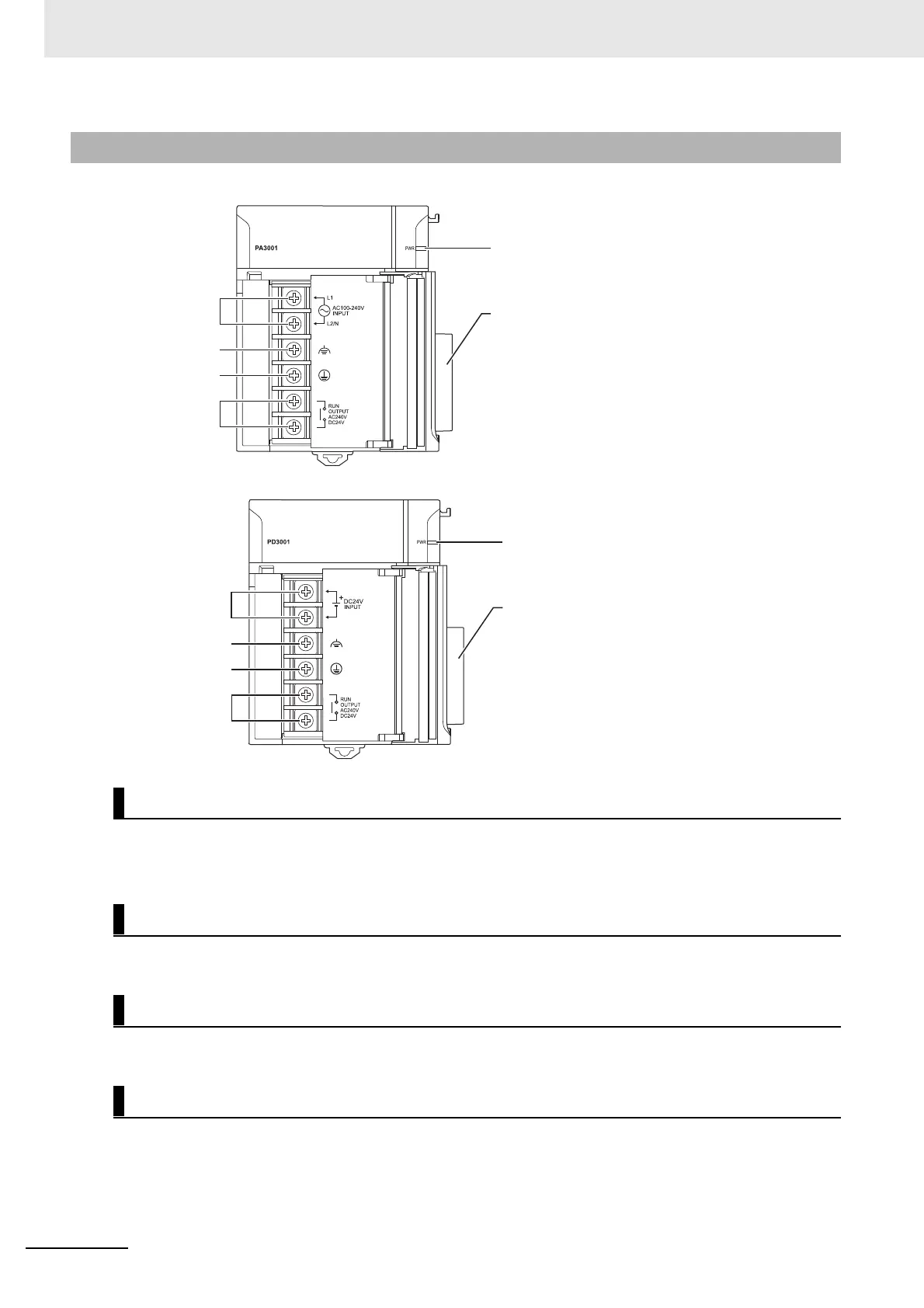

3-3-2 Components and Functions
AC Input
DC Input
LG
GR
Connector
POWER Indicator (PWR LED)
RUN output
AC input
LG
GR
Connector
RUN output
POWER Indicator (PWR LED)
+
(DC input)
LG
GR
−
(DC input)
