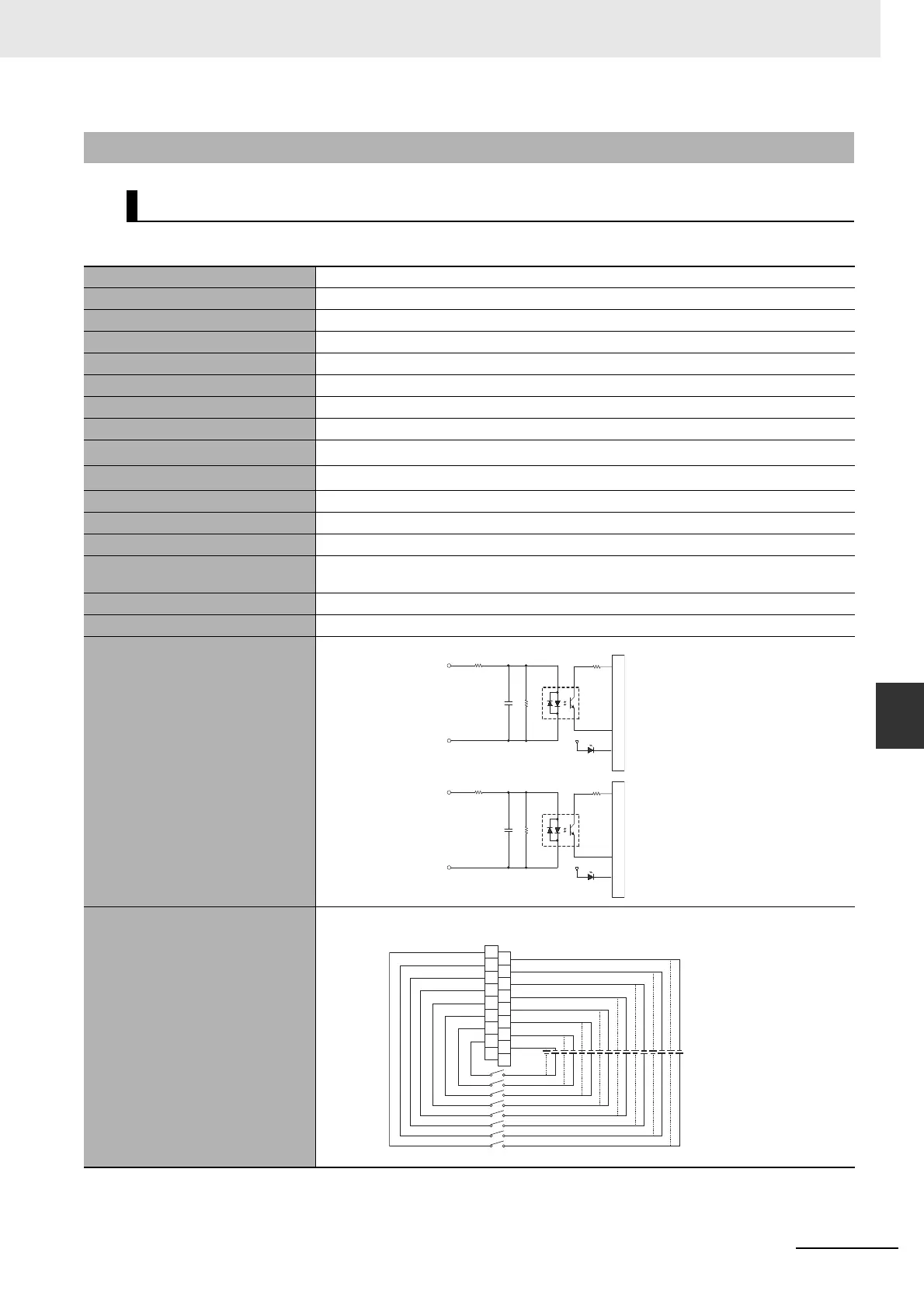

NJ-series CPU Unit Hardware User’s Manual (W500)
A-2 Specifications of Basic I/O Units
A
A-2-2 Basic I/O Units
CJ1W-ID201 DC Input Unit (12 to 24-VDC, 8 Points)
*1 The ON response time will be 20 s maximum and OFF response time will be 400 s maximum even if the response time are set to 0 ms
due to internal element delays.
*2 Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams. They are not
printed on the Units.
A-2-2 Basic I/O Units
Basic Input Units with Terminal Blocks
Name 8-point DC Input Unit with Terminal Block
Model CJ1W-ID201
Rated Input Voltage 12 to 24 VDC
Allowable Input Voltage Range 10.2 to 26.4 VDC
Input Impedance 2.4 k
Input Current 10 mA typical (at 24 VDC)
ON Voltage/ON Current 8.8 VDC min./3 mA min.
OFF Voltage/OFF Current 3 VDC max./1 mA max.
ON Response Time
8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.)
*1
OFF Response Time
8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.)
*1
Number of Circuits 8 independent circuits
Number of Simultaneously ON Points 100% simultaneously ON
Insulation Resistance 20 M between external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current
of 10 mA max.
Internal Current Consumption 80 mA max.
Weight 110 g max.
Circuit Configuration
External connection and terminal-
device variable diagram
Polarity of the input power supply can be connected in either direction.
560 Ω
2.4 kΩ
560 Ω
2.4 kΩ
1000 pF
Input indicator
Internal circuits
to
1000 pF
Input indicator
Internal circuits
Signal name
COM7
Jxx_Ch1_In07
COM0
Jxx_Ch1_In00
Signal
name
Signal
name
Con-
nector
pin
12 to 24 VDC
*2
B1
Jxx_Ch1_In00
B2
Jxx_Ch1_In01
B3
Jxx_Ch1_In02
B4
Jxx_Ch1_In03
B5
Jxx_Ch1_In04
B6
Jxx_Ch1_In05
B7
Jxx_Ch1_In06
B8
Jxx_Ch1_In07
NC
C0
C1
C2
C3
C4
C5
C6
C7
NC
B0
A1
A2
A3
A4
A5
A6
A7
A8
A0
To Next Page
