3 Configuration Units
3-34
NJ-series CPU Unit Hardware User’s Manual (W500)

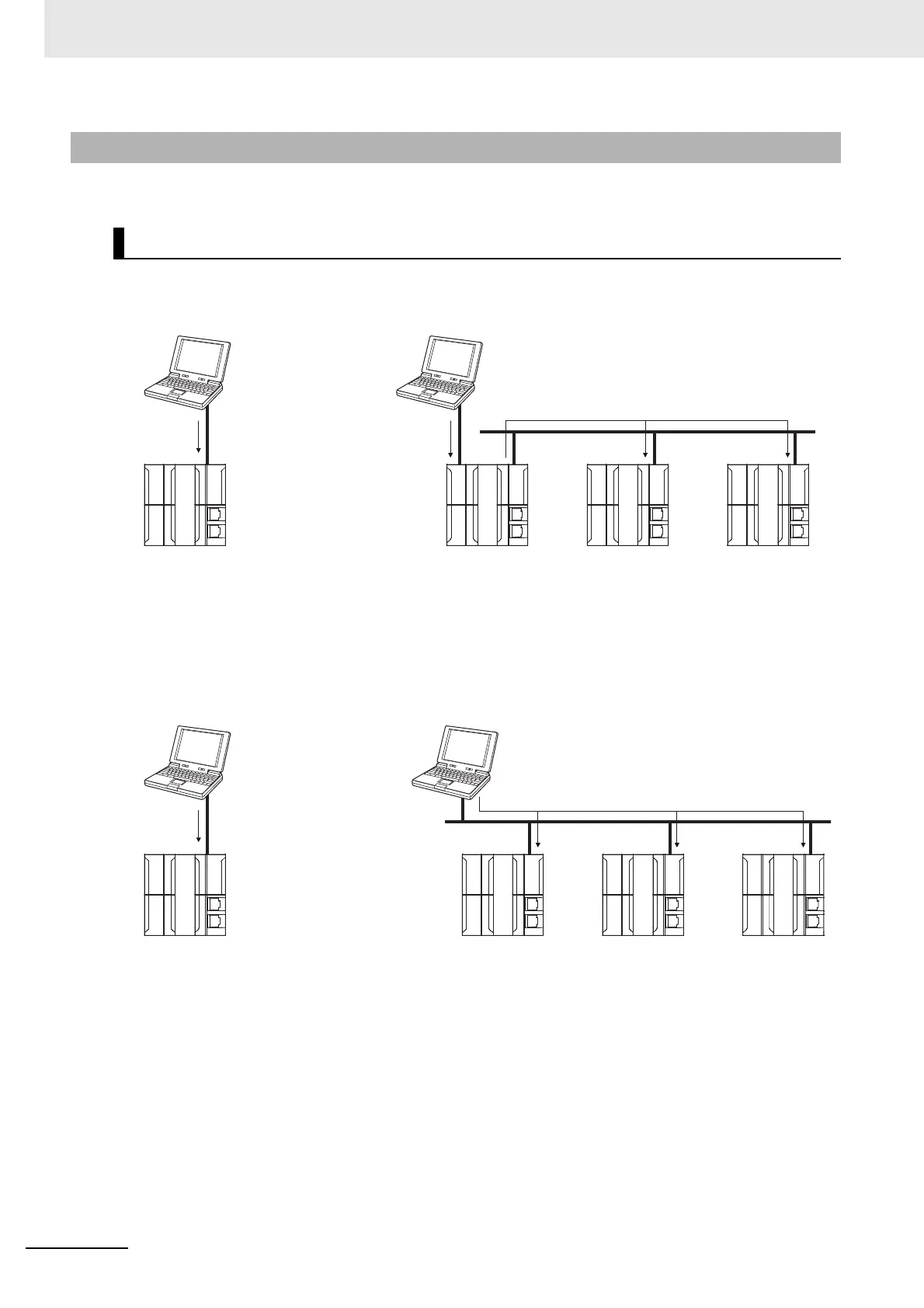

With an NJ-series CPU Unit, you can connect the Sysmac Studio online in the following ways.
Connecting by USB
Note Connect a computer and the CPU Unit with a USB 2.0 certified cable. Do not use a USB hub to connect
them.
Connection with EtherNet/IP
3-7-2 Connection
Configuration
• Direct Connection • Connection to CPU Unit on EtherNet/IP with USB
The connection device does not
need to be specified.
Directly specify the IP address of the remote device.
• 1:1 Connection • 1:N Connection
• A direct connection is made from
the Sysmac Studio. The IP
address and connection device
do not need to be specified.
• You can make the connection
whether or not a switching hub is
used.
• Support for Auto-MDI enables the
use of cross cables or straight
cables if a direct connection is
made.
Directly specify the IP address of the remote device.
Sysmac Studio
USB
EtherNet/IP
To Next Page
