A-9
Appendices
NJ-series CPU Unit Hardware User’s Manual (W500)
A-2 Specifications of Basic I/O Units
A
A-2-2 Basic I/O Units
* The ON response time will be 20 s maximum and OFF response time will be 400 s maximum even if the response times
are set to 0 ms due to internal element delays.
Note Observe the following restrictions when connecting to a 2-wire sensor.
• Make sure the input power supply voltage is larger than the ON voltage (19 V) plus the residual voltage of the sen-
sor (approx. 3 V).
• Use a sensor with a minimum load current of 3 mA min.
• Connect bleeder resistance if you connect a sensor with a minimum load current of 5 mA or higher.

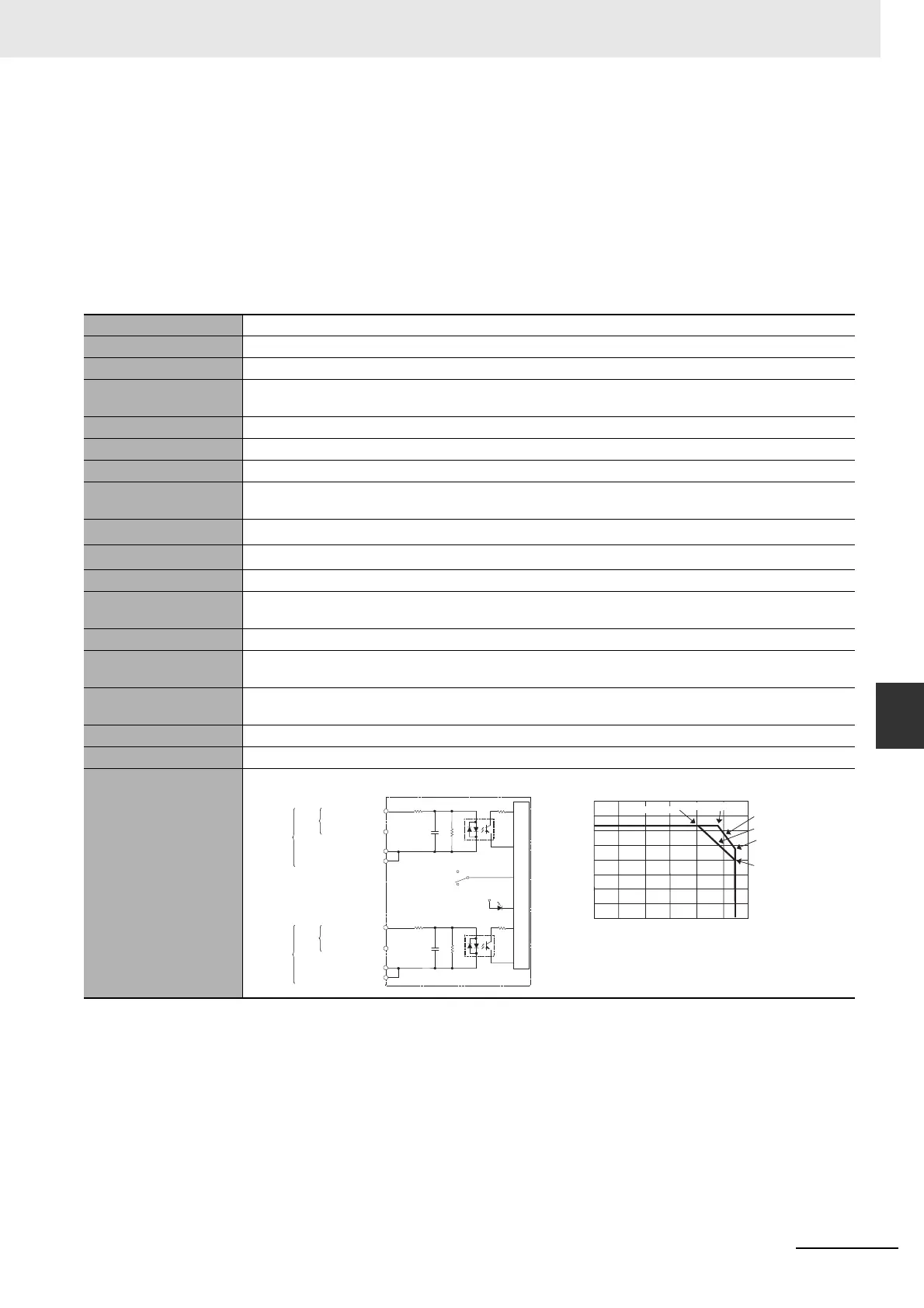

CJ1W-ID232 DC Input Unit (24 VDC, 32 Points)
Name 32-point DC Input Unit with MIL Connector
Model CJ1W-ID232
Rated Input Voltage 24 VDC
Allowable Input Voltage
Range
20.4 to 26.4 VDC
Input Impedance 5.6 k
Input Current 4.1 mA typical (at 24 VDC)
ON Voltage/ON Current 19.0 VDC min./3 mA min.
OFF Voltage/OFF Cur-
rent
5 VDC max./1 mA max.
ON Response Time
8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.)
*
OFF Response Time
8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.)
*
Number of Circuits 32 (16 points/common, 2 circuits)
Number of Simultane-
ously ON Points
75% (12 points/common) simultaneously ON (at 24 VDC) (Refer to the following illustration.)
Insulation Resistance 20 M between external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA
max.
Internal Current Con-
sumption
90 mA max.
Weight 70 g max.
Accessories None
Circuit Configuration
560 Ω560 Ω
5.6 kΩ
5.6 kΩ
1000 pF
1000 pF
Internal circuits
Input indicator
to
to
Wd
m+1
Wd m
Allocated
CIO word
Signal
name
Connector
row A
Connector
row B
Jxx_Ch1_In00
Jxx_Ch1_In15
COM0
Jxx_Ch2_In00
Jxx_Ch2_In15
COM1
COM0
COM1
SW
0
5
10
15
20
25
30
35
010 20 30 40 5060
Number of simultaneously ON points
Ambient Temperature
(°C)
10 points/common
at 55°C
12 points/common
at 55°C
Input voltage:
26.4 VDC
Input voltage:
24 VDC
32 points at 48°C
32 points at 40°C
Number of Simultaneously ON Points vs.
Ambient Temperature Characteristic
To Next Page
