Appendices
A-16
NJ-series CPU Unit Hardware User’s Manual (W500)

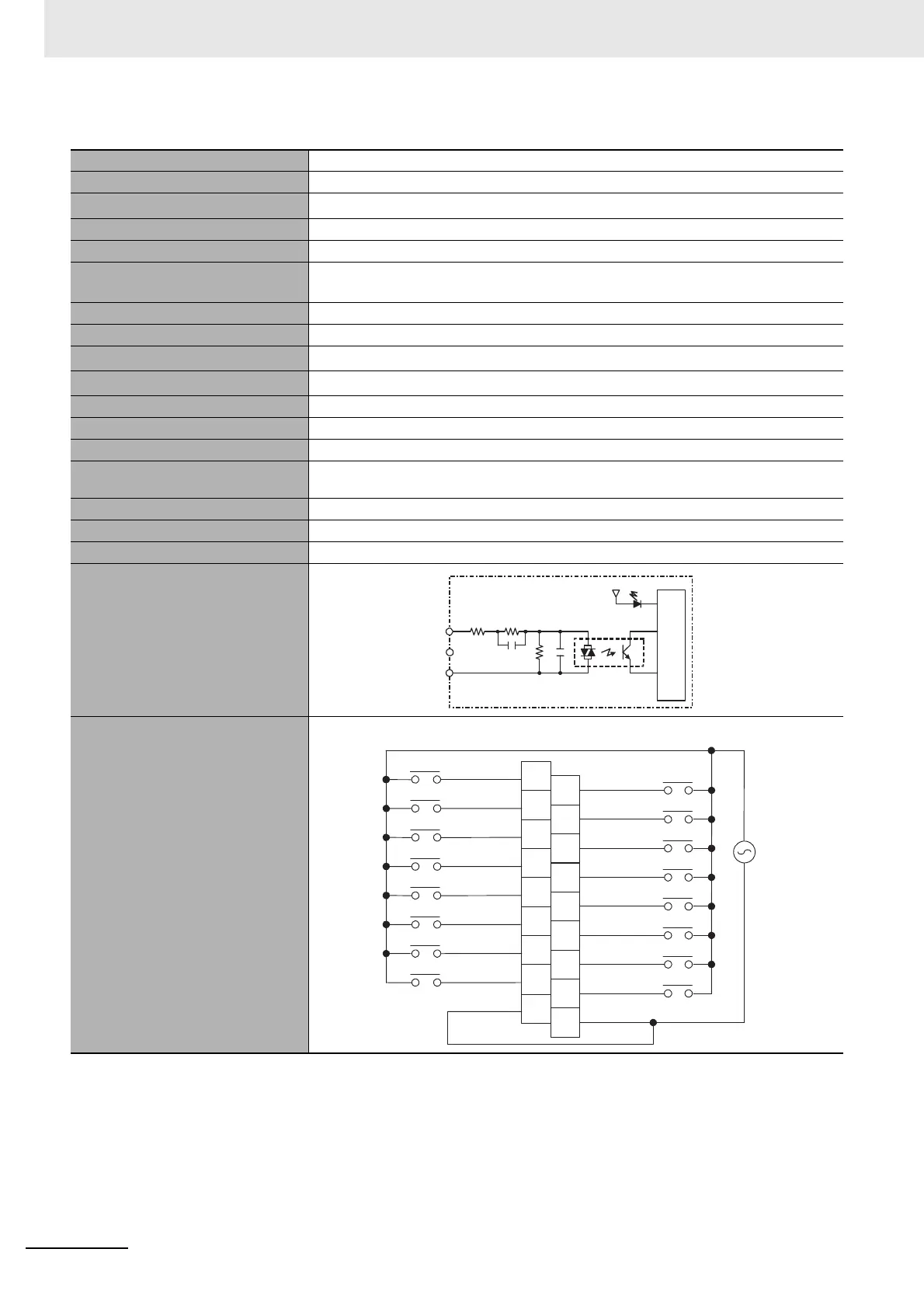

CJ1W-IA111 AC Input Unit (100 VAC, 16 points)
*1 Can be set to 0 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, or 32ms in the Unit Information settings. When the response
times have been set to 0 ms, the ON response time will be 10 ms maximum and the OFF response time will be 40 ms
maximum due to internal element delays.
*2 Use an input voltage of 90 VAC or higher when connecting 2-wire sensors.
*3 Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Name 16-point AC Input Unit with Terminal Block
Model CJ1W-IA111
Rated input voltage
100 to 120 VAC 50/60 Hz
*2
Allowable Input Voltage Range 85 to 132 VAC
Input Impedance 14.5 k (50 Hz), 12 k (60 Hz)
Input Current
7 mA typical (at 100 VAC, 50 Hz),
8 mA typical (at 100 VAC, 60 Hz)
ON Voltage/ON Current 70 VAC min./4 mA min
OFF Voltage/OFF Current 20 VAC max./2 mA max
ON Response Time
18.0 ms max. (Default setting in Unit Information: 8 ms)
*1
OFF Response Time
48.0 ms max. (Default setting in Unit Information: 8 ms)
*1
Number of Circuits 16 (16 points/common, 1 circuit)
Number of Inputs ON Simultaneously 100% simultaneously ON (16 points/common)
Insulation Resistance 20 M between external terminals and the GR terminal (500 VDC)
Dielectric Strength
2,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage cur-
rent of 10 mA max.
Internal Current Consumption 90 mA max.
Weight 130 g max.
Accessories None
Circuit Layout
External connection and terminal-
device variable diagram
470 Ω
1 MΩ
0.22 μF
270 Ω
Input indicator
Internal circuits
to
Signal
name
COM
Jxx_Ch1_In00
Jxx_Ch1_In15
100 to 120 VAC
Signal
name
Signal
name
Connec-
tor pin
*3
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
COM
COM
Jxx_Ch1_In00
Jxx_Ch1_In02
Jxx_Ch1_In04
Jxx_Ch1_In06
Jxx_Ch1_In08
Jxx_Ch1_In10
Jxx_Ch1_In12
Jxx_Ch1_In14
Jxx_Ch1_In01
Jxx_Ch1_In03
Jxx_Ch1_In05
Jxx_Ch1_In07
Jxx_Ch1_In09
Jxx_Ch1_In11
Jxx_Ch1_In13
Jxx_Ch1_In15
