Appendices
A-18
NJ-series CPU Unit Hardware User’s Manual (W500)

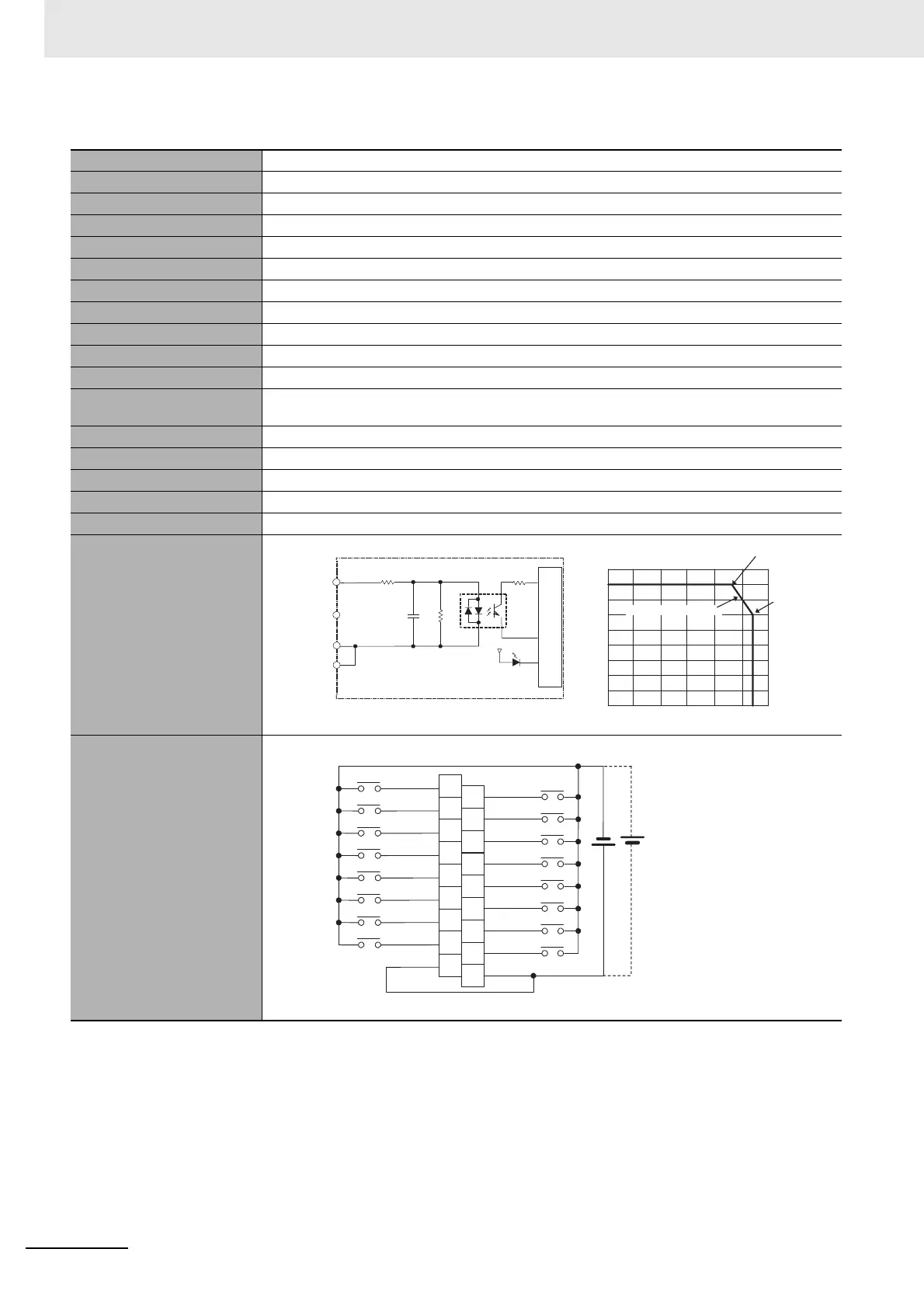

CJ1W-IDP01 Quick-response Input Unit (16 Points)
• With quick-response inputs, pulse inputs shorter than the CPU Unit's cycle time can be read by the CPU Unit.
• The pulse width (ON time) that can be read by the Quick-response Input Unit is 0.05 ms.
• Inputs read by the internal circuits are cleared when inputs are refreshed.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams. They
are not printed on the Units.
Name 16-point Quick-response Input Unit with Terminal Block
Model CJ1W-IDP01
Rated Input Voltage 24 VDC
Allowable Input Voltage Range 20.4 to 26.4 VDC
Input Impedance 3.3 k
Input Current 7 mA typical (at 24 VDC)
ON Voltage/ON Current 14.4 VDC min./3 mA min.
OFF Voltage/OFF Current 5 VDC max./1 mA max.
ON Response Time 0.05 ms max.
OFF Response Time 0.5 ms max.
Number of Circuits 16 (16 points/common, 1 circuit)
Number of Simultaneously ON
Points
100% (16 points/common) simultaneously ON (24 VDC)
Insulation Resistance 20 M between external terminals and GR terminal (at 100 VDC)
Dielectric Strength 1,000 VAC between external terminals and GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current Consumption 80 mA max.
Weight 110 g max.
Accessories None
Circuit Configuration
External connection and ter-
minal-device variable diagram
• The input power supply polarity can be connected in either direction.
18
16
14
12
10
8
6
4
2
0
010 20 30 40 50 60
Ambient Temperature
12 points at 55°C
Number of simultaneously ON points
(°C)
16 points at 45°C
Input voltage: 26.4 VDC
Number of simultaneously ON points --
Ambient temperature characteristics
3.3 kΩ
470 Ω
1000 pF
to
Input indicator
Internal circuits
Signal
name
Jxx_Ch1_In00
Jxx_Ch1_In15
COM
COM
24 VDC
Signal
name
Signal
name
Connector
pin
*
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
Jxx_Ch1_In00
Jxx_Ch1_In02
Jxx_Ch1_In04
Jxx_Ch1_In06
Jxx_Ch1_In10
Jxx_Ch1_In12
Jxx_Ch1_In14
Jxx_Ch1_In08
COM
Jxx_Ch1_In01
Jxx_Ch1_In03
Jxx_Ch1_In05
Jxx_Ch1_In07
Jxx_Ch1_In11
Jxx_Ch1_In13
Jxx_Ch1_In15
Jxx_Ch1_In09
COM
To Next Page
