This section describes how to remove NX Units, such as Position Interface Units.
1 Use a flat-blade screwdriver or similar tool to pull up the DIN Track mounting hook on the NX
Unit to remove.
2 As shown in the following figure, place your fingers on the protrusions on more than one NX
Unit, including the NX Unit to remove, and pull the NX Units straight forward.
Precautions for Correct Use
• When you need to remove an NX Unit, always remove more than one NX Unit at a time,
including the Unit you need to remove. It is sometimes very difficult to remove only one NX
Unit by itself.
• Do not release the DIN Track mounting hooks on all of the NX Units at the same time. If you
release the DIN Track mounting hooks on all of the Units at the same time, all of the Units will
come off.
4-1-3 Removing Position Interface Units

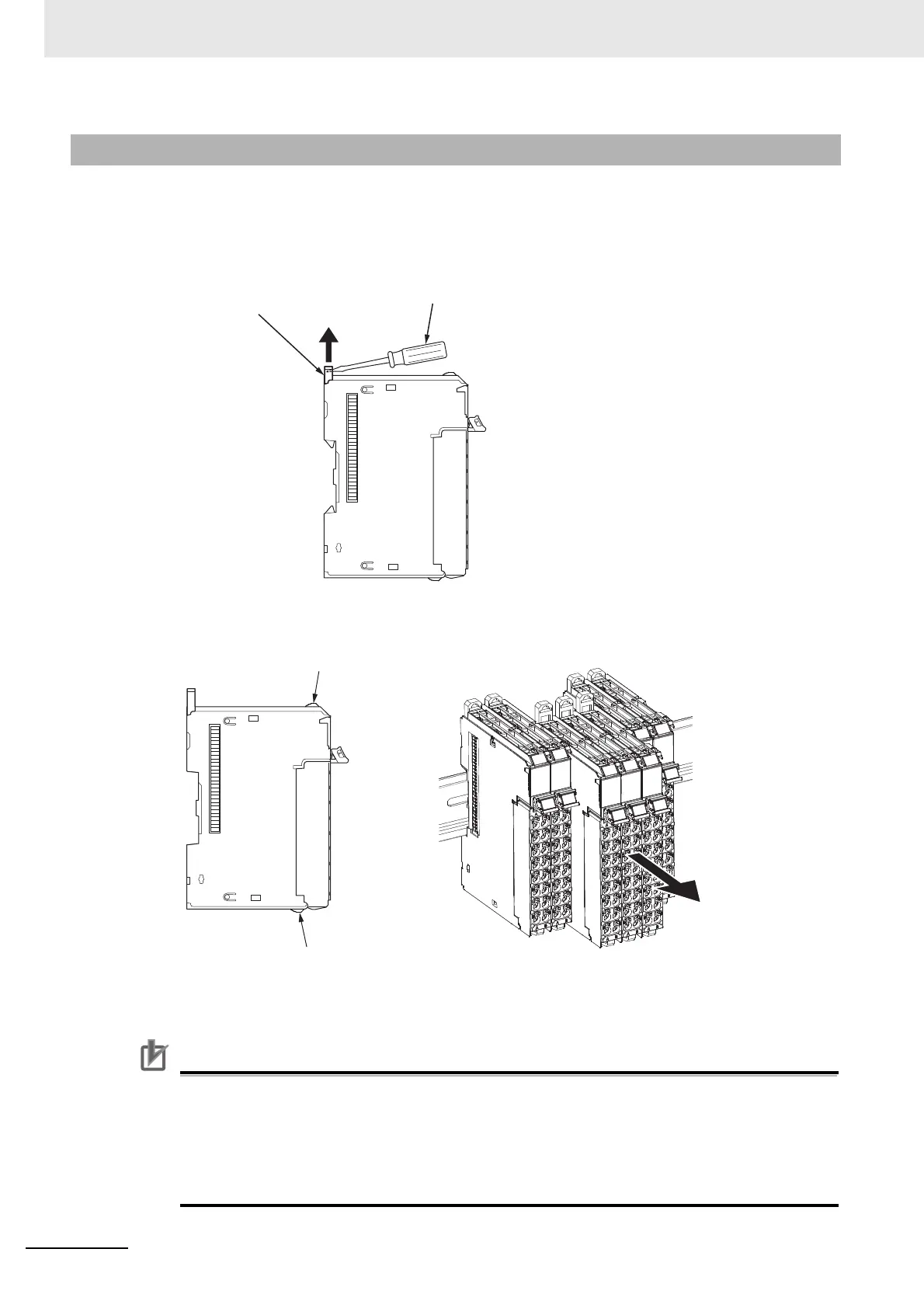

DIN Track mounting hook
Flat-blade screwdriver
Protrusion for removing the Unit
Protrusion for removing the Unit
