Omron V7 Quick Manual

EN-2
1. Installation
Rated
Voltage
Model
V7AZ

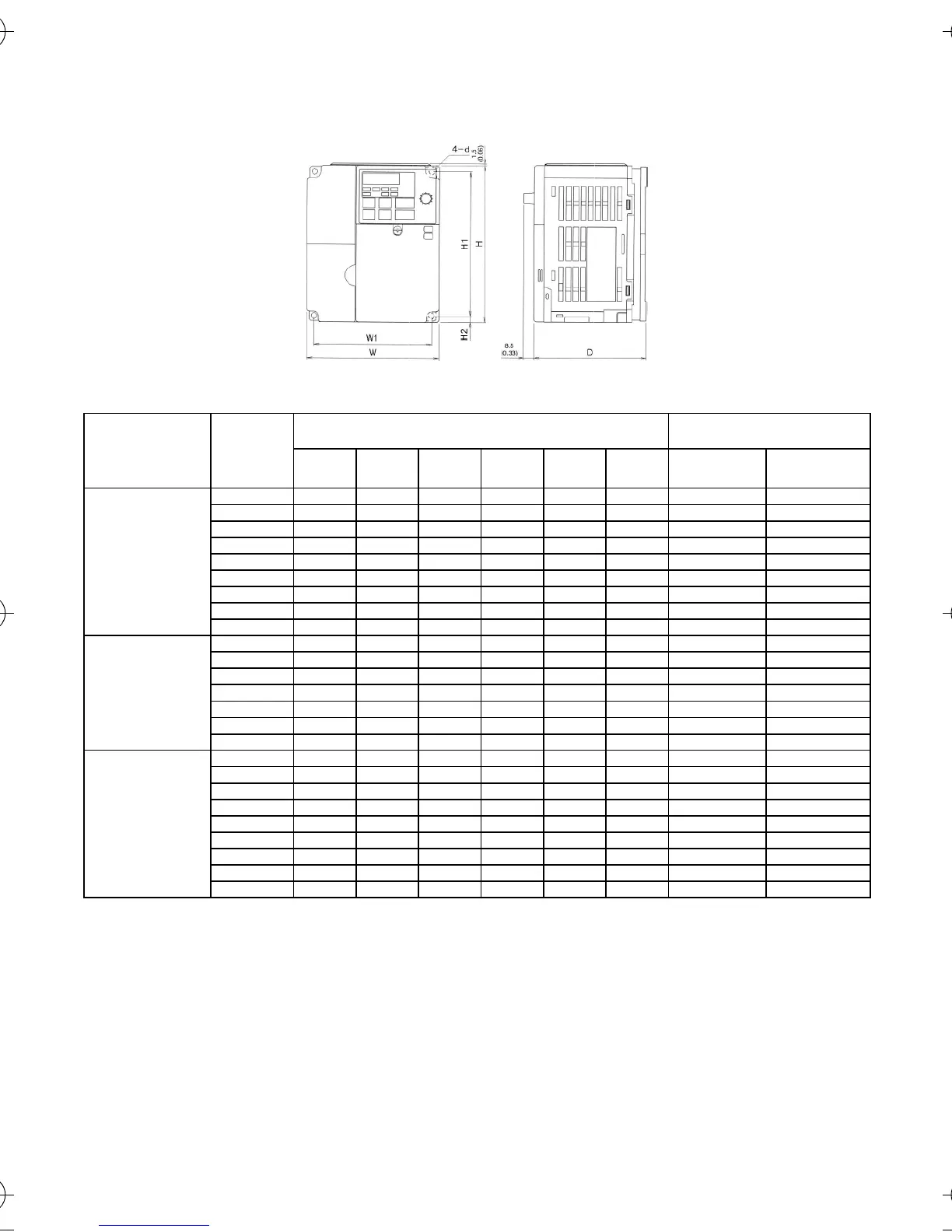

Dimensions (mm)
Supply
Recommendations
WHDW1H1H2MCCB
(A)
Wire
(mm
2
)
Three Phase
200 VAC
20P1 68 128 76 56 118 5 5 2
20P2 68 128 76 56 118 5 5 2
20P4 68 128 108 56 118 5 5 2
20P7 68 128 128 56 118 5 10 2
21P5 108 128 131 96 118 5 20 2
22P2 108 128 140 96 118 5 20 3.5
24P0 140 128 143 128 118 5 30 5.5
25P5 180 260 170 164 244 8 50 8
27P5 180 260 170 164 244 8 60 8
Single Phase
200 VAC
B0P1 68 128 76 56 118 5 5 2
B0P2 68 128 76 56 118 5 5 2
B0P4 68 128 131 56 118 5 10 2
B0P7 108 128 140 96 118 5 20 3.5
B1P5 108 128 156 96 118 5 20 5.5
B2P2 140 128 163 128 118 5 40 5.5
B4P0 170 128 180 158 118 5 50 8
Three Phase
400 VAC
40P2 108 128 92 96 118 5 5 2
40P4 108 128 110 96 118 5 5 2
40P7 108 128 140 96 118 5 5 2
41P5 108 128 156 96 118 5 10 2
42P2 108 128 156 96 118 5 10 2
43P0 140 128 143 128 118 5 20 2
44P0 140 128 143 128 118 5 20 2
45P5 180 260 170 164 244 8 30 5.5
47P5 180 260 170 164 244 8 30 5.5
