EN-8
FREQUENCY
adjuster
Data display
Operation keys
Monitor item
indicators

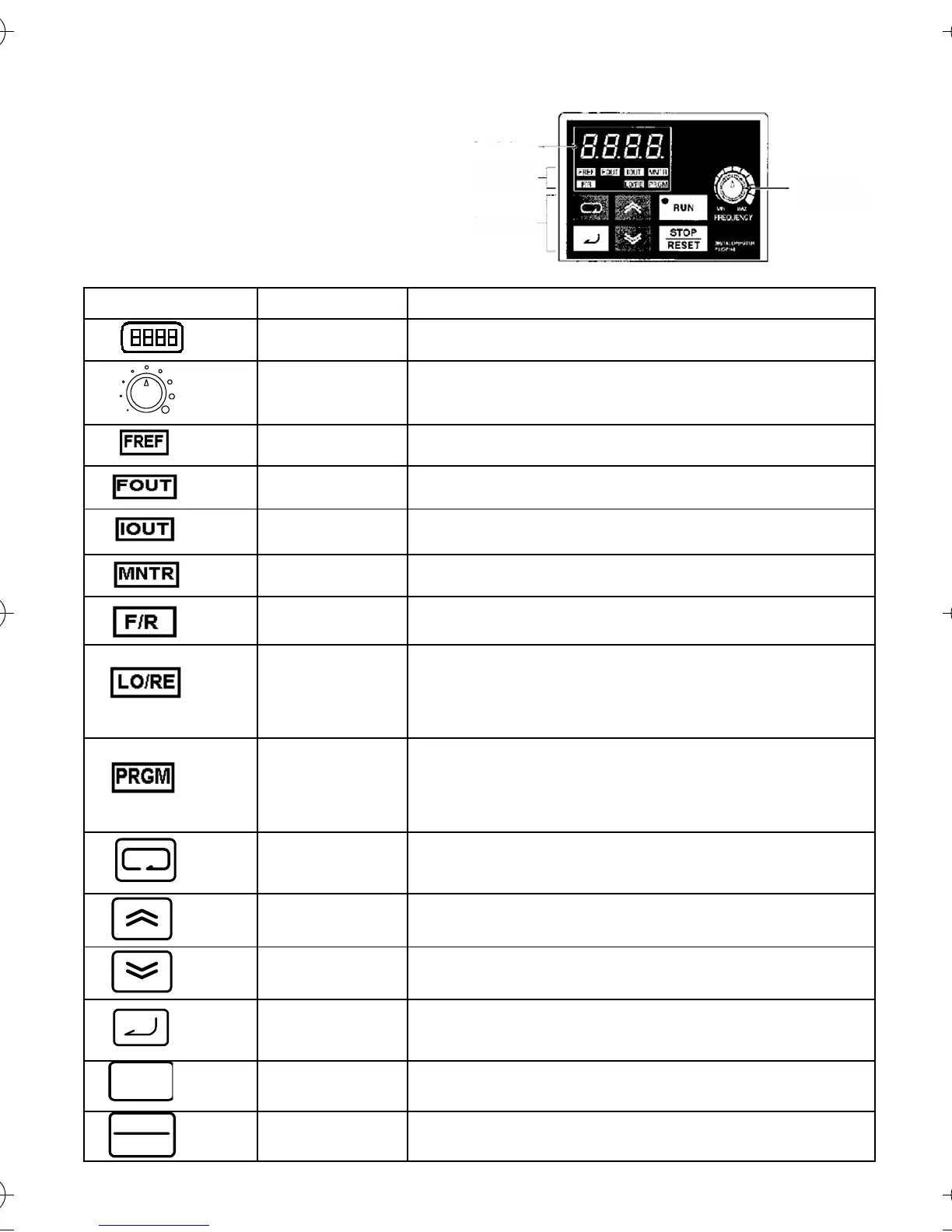

4. Operator Use
Appearance Name Function
Data display
Displays relevant data, items, such as frequency reference, output
frequency and parameter set values.
FREQ adjuster
Sets the frequency reference within a range between 0Hz and the
maximum frequency.
FREF Indicator The frequency reference can be monitored or set while this
indicator is lit.
FOUT Indicator The output frequency of the inverter can be monitored while this
indicator is lit.
IOUT indicator The output current of the inverter can be monitored while this
indicator is lit.
MNTR indicator The values set in U-01 through U-19 are monitored while this
indicator is lit.
F/R indicator The direction of rotation can be selected while this indicator is lit
when operating the inverter with the run key.
LO/RE indicator The operating of the inverter through the Digital Operator or
according to the set parameters is selected while this indicator is lit.
Note: The status of this indicator can be only monitored while the
inverter is in operation. Any RUN command input is ignored while
this indicator is lit.
PRGM indicator The parameter in n01 through to n179 can be set or monitored
while this indicator is lit.
Note: while the inverter is in operation, the parameters can be only
monitored and only some parameters can be changed. Any RUN
command input is ignored while this indicator is lit.
Mode Key Switches the setting and monitor item indicator in sequence.
Parameter being set will be cancelled if this key is pressed before
entering the setting.
Increment Key Increases multi-function monitor numbers, parameter numbers and
parameters set values.
Decrement Key Decreases multi-function monitor numbers, parameter numbers
and parameters set values.
Enter Key Enters multi-function monitor numbers, parameter numbers and
internal data values after they are set or changed.
RUN Key Starts the inverter running when it is in operation with the Digital
Operator.
STOP/RESET
Key
Stops the inverter unless parameter n07 is not set to disable the
STOP Key.
RUN
RESET
STOP
I43-EN-01+V7+Quick_Guide.book Seite 8 Dienstag, 25. April 2006 8:56 08
