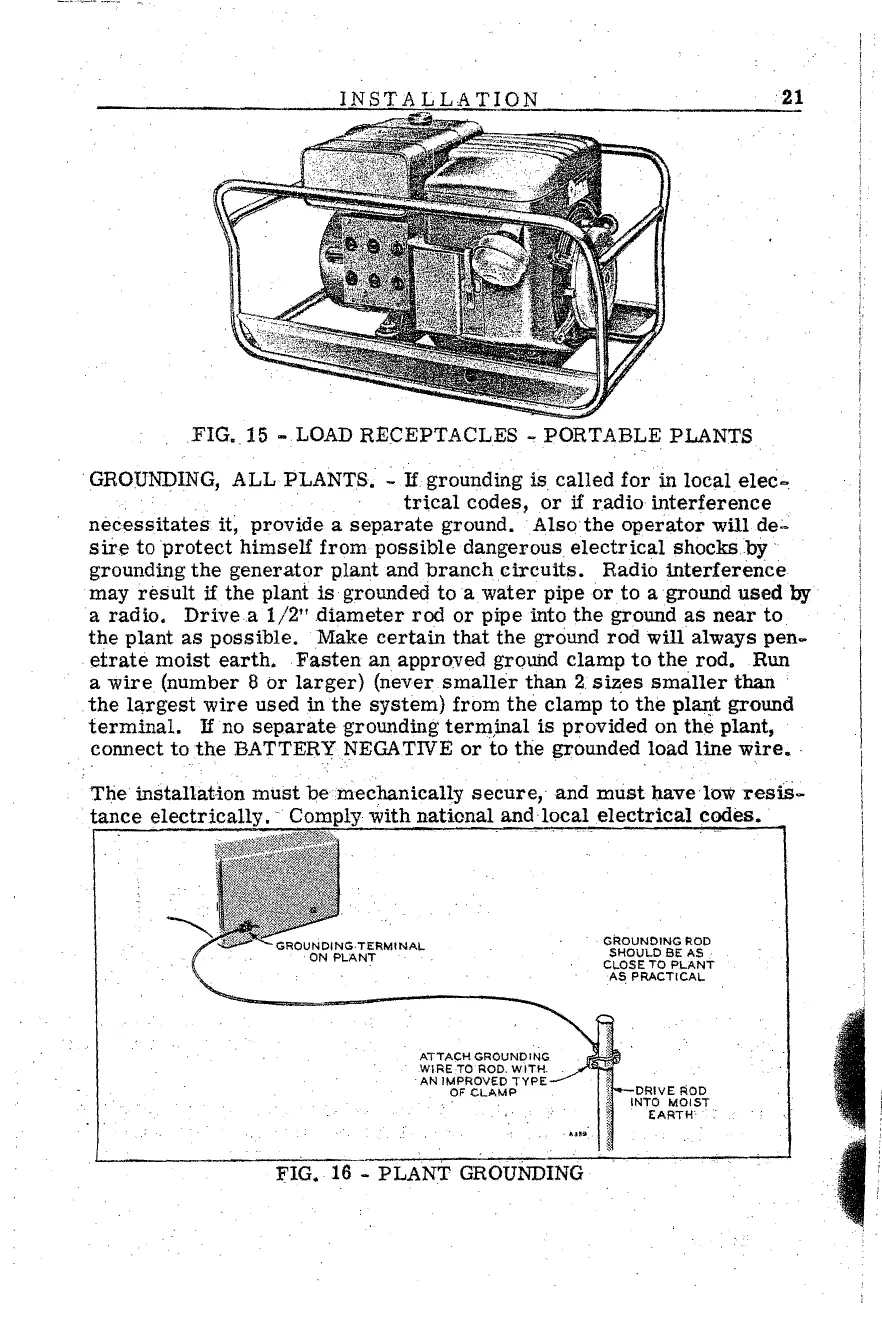

FIG. 15 - LOAD RECEPTACLES", PORTABLE PLANTS
-. . .
GROUNDING, ALLFLANTS. :.. If grounding is. called for in localelec~
. tr\cal codes, or if radio interference
necessitates it, provide a separate ground. Also the operator will de;'
sire to protect himself from possible dangerous electrical shocks by .
grounding
the generator plant and branch circuits. Radio interference
may result if the plant is groWlded to a water pipe or to agroWld used by
a radio. Drive.a 1/2" diameter rod or pipe into the ground as near to
the plant as possible. Make certain that the groWld rod will always pen-
etrate moist earth. Fasten an approved groUild clamp to the rod. Run
a
wire (number 8 or larger) (never smaller than 2. sizes smaller than
the largest wire used in the system) from the clamp to the pla.J?t ground
terminal. If no separate groWlding term,inal is provided on the plant,
connect to
the BATTERY NEGA TIVE or to the grounded load line wire •.
• The installation must be mechanically secure,and must havelowreslS-
tance electric. C . with national and ·local electrical
GROUNOING ROD
SHOU\.OSE AS
C\.OSE TO P\.ANT
AS PRACTICA\.
DRIVE ROD
INTO MOIST
EARTH
ATTACH GROUNDING
WIRE TO ROD. WITH .
.
AN IMPROVED TYPE
OF C\.AMP
FIG. 16 - PLANT
