INS TAL LA T 10 N
25
GAS REGULATOR (OPTIONAL EQUIPMENT).
1. The gas regulator supplied is a secondary (atmospheric) type, de-
signed to operate on a line pressure of 3 to 8 ounces. If the line
pressure is more than 8 ounces, consult the fuel supplier regarding the
installation of a primary regulator.
2. Some local regulations require installation of an electric solenoid
type valve, and a
filter in the supply line. Be sureto install a
manual shut-off valve in the line.
3. Assemble the pipe fittings to the regulator as illustrated, and in-
stall the regulator to the gas supply line. Turn the regulator to an
upright pOSition, and
support the line securely.
4. Turn on the gas supply valve. Blow into the open vent hole (F).
5. Put a soap bubble over the regulator outlet nipple (E) and turn the
adjusting screw (G) out until the fuel seeps through slowly, making
the soap bubble grow.
If fuel pressure is quite low it may be necessary
to remove the adjusting screw before fuel will flow.
6., Turn the adjusting screw in just to the point where the soap bubble
holds.
If the screw projects above the casting surface, turn it just
flush. No further operating adjustment will be necessary. Install the
vent fitting in the hole (F).
7. Connect the fuel hose between the regulator and the carburetor, run-
ning the hose beside the engine rear adapter casting. If the hose is
a tight fit, lubricate with wet soap. Tighten hose clamps securely.
8. See that the float lock (D) is turned in to its lim it, and that the choke
, is locked wide open.
GASOLINE IDLE ADJlJSTMENT
I:r~R~~~LGASOLlNf MAIN
ADJU$1"MENT
, HALF PIPE: NIPPLE ®
~-~'-~~90. ELBOW @
I
GASHOSE@ , r,NIPPLE®
, 'fij",REDUCING BUSHING@
EARLIER MODELS
HAD ADDITIONAL
OUTLET HERE WITH
3/.' PIPE PLUG,
A 5 3 5
.""",,,\::::' ""- GAS REGULATOR@

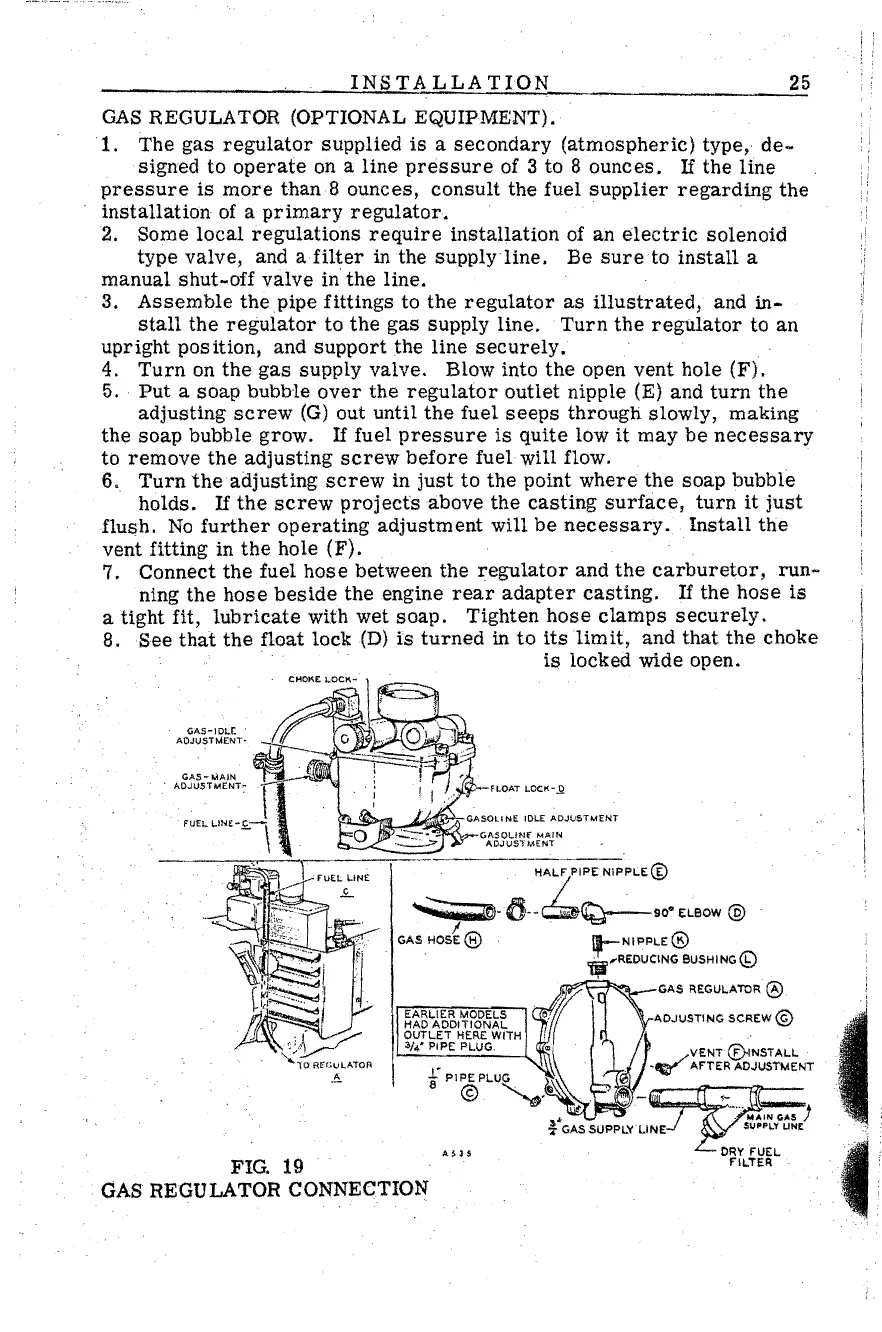

FIG.
19
GAS REGULATOR CONNECTION
