PERIODIC SERVICE
MONTHLY SERVICE
If the plant is operated more than 200 houts monthly, per-
form the following services each 200 hours of operation.
FUEL SYSTEM. - On plants with a separate fuel tank, drain the fuel
tank and remove the shut-off valve and filter assem-
bly. Carefully clean the filter screen. Tighten connections well when
reassembling. Empty the fuel filter bowl of any sediment which may
have accumulated;
BREAKER POINTS. - Remove the breaker_box cover and inspect the
breaker points. . If they appear to be too. badly
burned or pitted, discard them and install a new set. Dress the old
.
points with a fine stone providing they still appearsel'vlcable.
Adjust the bre.aker point gap tb O. 020 inch at lull separation after dres- .
sing the points or changing them, Place a drop of light lubriCating oil
on the breaker arm pivot after installing new points.
The ignition condenser is faulty and should be replaced if thefollow1rlg
conditions persist: (1) ExceSsive arcing at the breaker points;
(2) Breaker points continually burn over; (3) Yellow colored spark at .
the points,
PLACE A DROP OF" LIGHT OIL
ON BR.EAKER ARM PIVOT
EVERY 1200 OPERATINGr-:,,-,,:,+~====::::--.
JUST POSITION OF BREAKER
EOX WHEN SPACER IS
USED .
SET BREAKER
POINT GAP
WIDTH AT
TO ADJUST GAP
LOOSEN SCREWS
~Ab.TURN CAM-S"
I!ETJGHTEN SCREWS
THESE SCREWS MUST BE LOOS-
ENED
TO ADJUST POSITION OF"
THE BREAKER EOX WHEN
SPACER IS NOT USED,
"'-----"'---LOOSENTHESE SCREWS TO AD-
• ADVANCE
RETARD •.

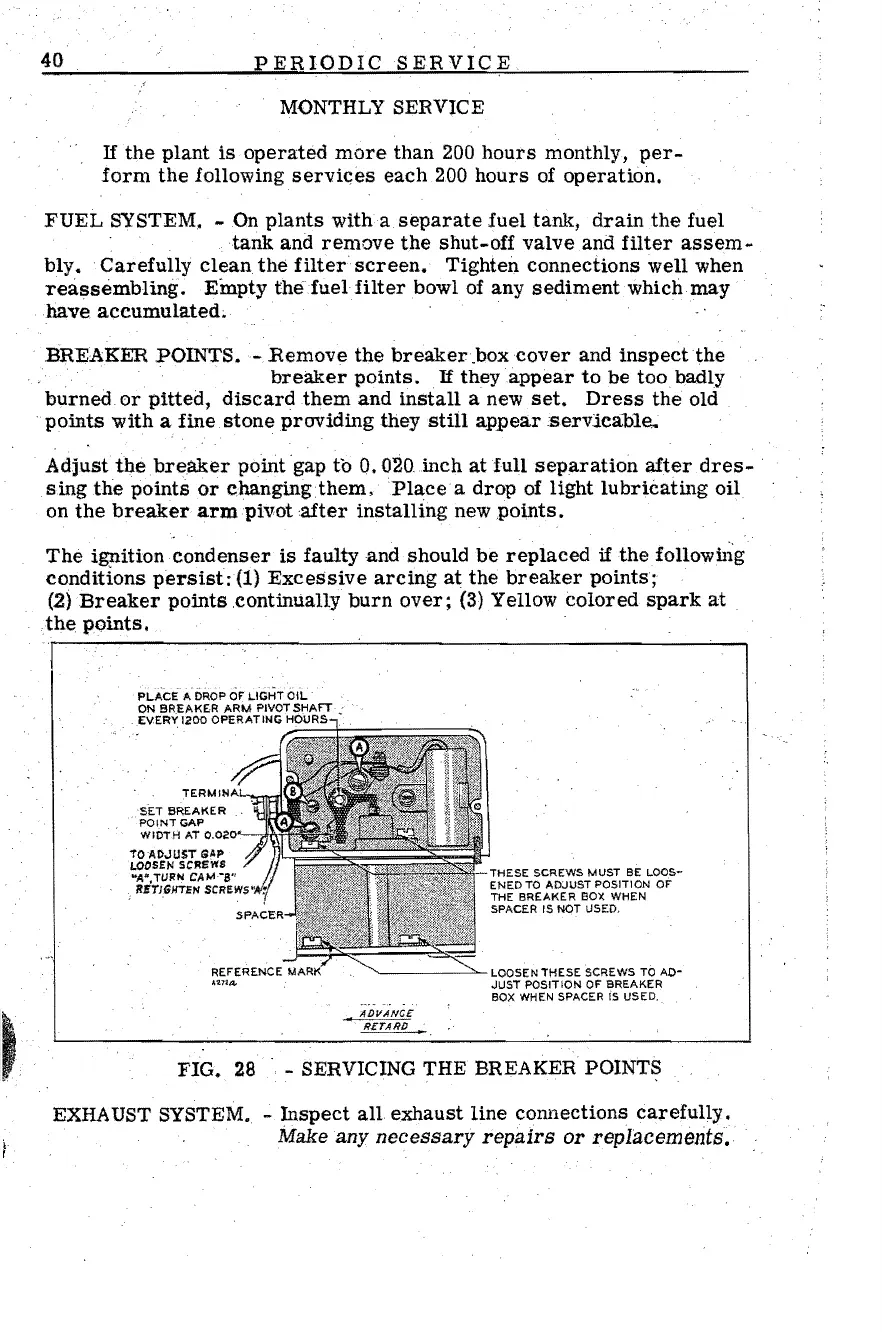

FIG. 28 - SERVICING THE BREAKER POINTS
EXHA UST SYSTEM, - Inspect all exhaust line connections carefully.
Make any necessary repairs or replacements.
