16
Connecting AV Components—Continued

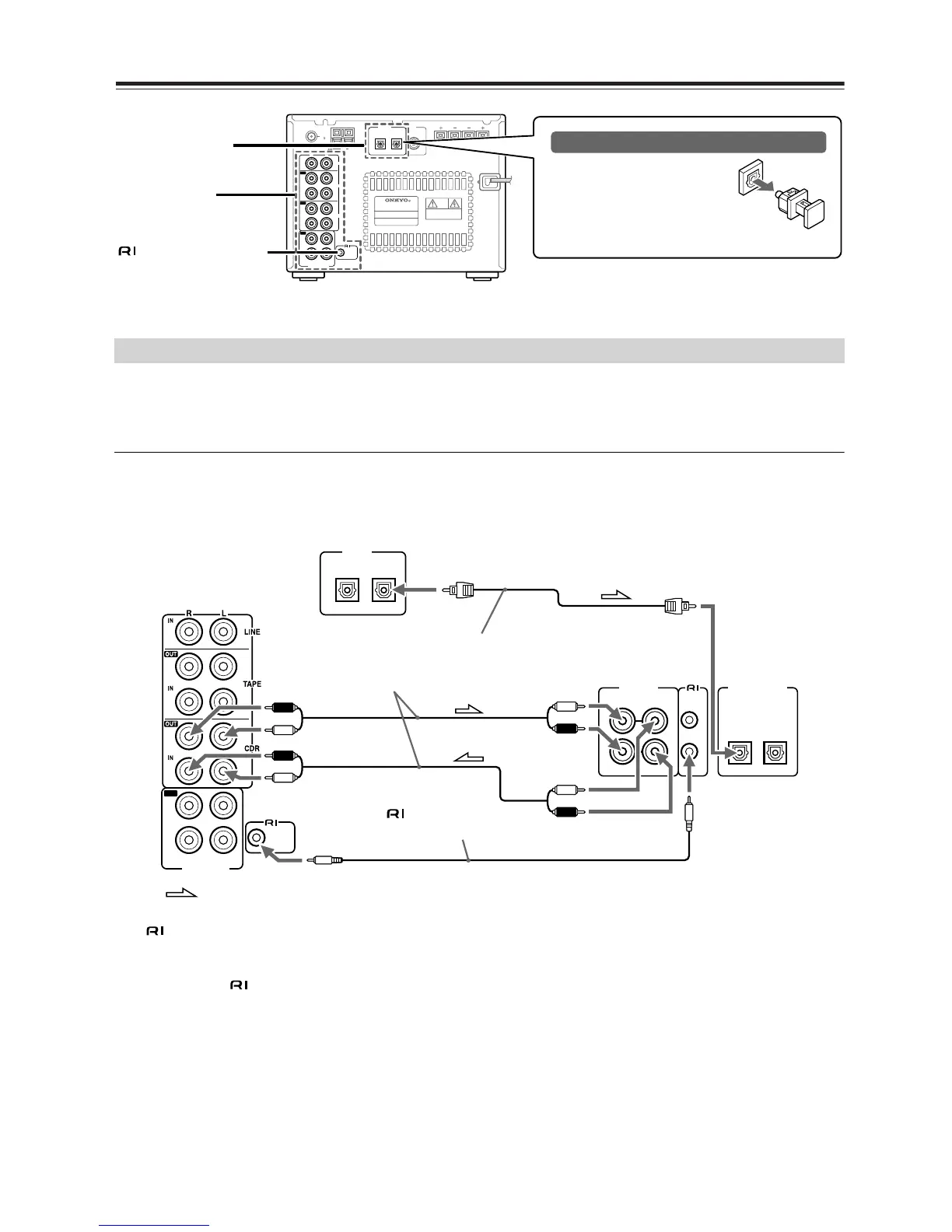

The following diagram illustrates how to connect an optional Onkyo compact disc recorder.
Connect the FR-X7A CDR OUT jacks to the disc recorder’s IN (REC) jacks. Connect the FR-X7A CDR IN jacks to
the disc recorder’s OUT (PLAY) jacks.
About the OPTICAL DIGITAL OUT connector
You can connect a CD or DAT recorder that has an optical digital audio input to the FR-X7A for digital recording.
Use a standard optical digital audio cable for connection. Digital recording is allowed only for the first generation.
(See “Guide to the Serial Copy Management System” on page 7.)
The jack connection enables you to use the following functions:
•You can control a connected Onkyo compact disc recorder using the supplied remote controller. You also need
to connect the RCA/phono audio cable.
•To operate the system, the source name in the display should be CD-R. (Since the default source name in
the display is CD-R, you do not need to change the setting. See page 66 for further information.)
• When the connected Onkyo compact disc recorder plays back, the Input Selector on the FR-X7A is automati-
cally switched to CD-R.
Connecting an Onkyo compact disc recorder
AM
FM
75
ANTENNA
OPTICAL PRE OUT
DIGITAL SUB
WOOFER
IN
IN
IN
IN
OUT
OUT
OUT
LINE
TAPE
CDR
R
L
RL
REMOTE
CONTROL
PROCESSOR
SPEAKERS
OUTIN
CD/ MD
TUNER AMPLIFIER
RL
SPEAKERS
Optical digital audio
output connector
Protective cap for the optical digital audio connector
Remove the protective cap
before you use the OPTICAL
DIGITAL OUTPUTconnector.
Please retain it for future use.
If you do not use the optical digital
audio connector, make sure the cap is in place.
REMOTE CONTROL
connector
Jacks for analog
connections
white
red
white
red
white
red
white
red
FR-X7A’s
rear panel
: Signal flow
Jacks on the compact
disc recorder's
rear panel
Optical digital
audio cable
RCA/phono
audio cable
An cable that comes
with the compact disc recorder
OPTICAL
DIGITAL
IN
OUT
R
L
REMOTE
CONTROL
PROCESSOR
OUTIN
(
REC
)
(
PLAY
)
REMOTE
CONTROL
L
R
L
R
IN
OUT
2
1
OPTICAL
ANALOG
DIGITAL INPUT
To Next Page
